1969614 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT HSG 12POS 4.20MM

Part	Contact Termination	Note	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Color	Fastening Type	Contact Type	Pitch [x]	Pitch [x]	Mounting Type	Row Spacing	Row Spacing	Insulation Material	Number of Positions

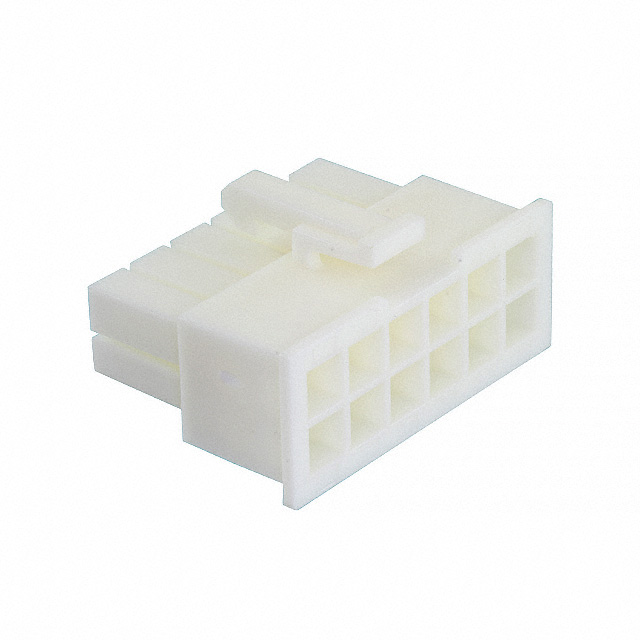

TE Connectivity Raychem Cable Protection 1-1969614-2	Crimp	Contacts Not Included	2	-40 °C	105 ░C	12	Receptacle	Natural	Latch Lock	Female Socket	4.2 mm	0.165 in	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6
TE Connectivity Raychem Cable Protection 1-1969614-8	Crimp	Contacts Not Included	2	-40 °C	105 ░C	18	Receptacle	Natural	Latch Lock	Female Socket	4.2 mm	0.165 in	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6

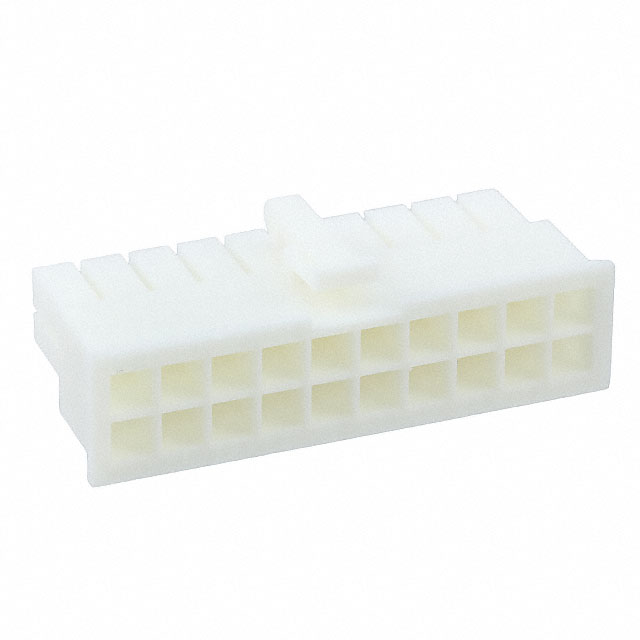

TE Connectivity Raychem Cable Protection 2-1969614-0	Crimp	Contacts Not Included	2	-40 °C	105 ░C	20	Receptacle	Natural	Latch Lock	Female Socket	4.2 mm	0.165 in	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6
TE Connectivity Raychem Cable Protection 1969614-8	Crimp	Contacts Not Included	2	-40 °C	105 ░C	8	Receptacle	Natural	Latch Lock	Female Socket	4.2 mm	0.165 in	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6

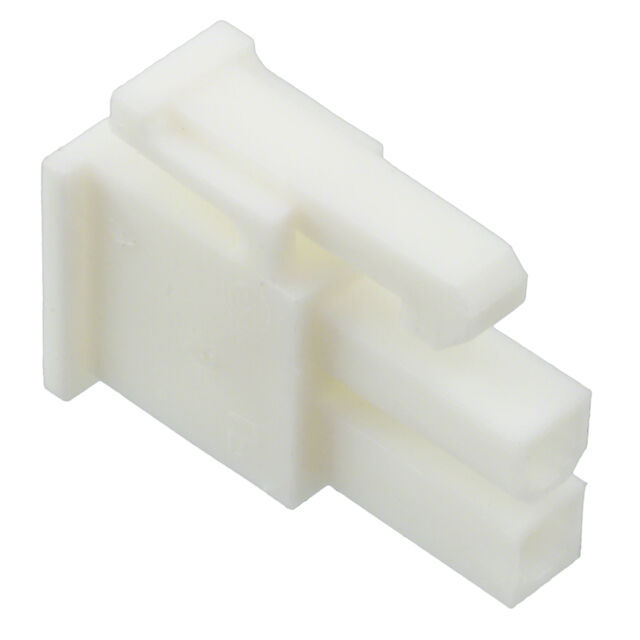

TE Connectivity Raychem Cable Protection 1969614-2	Crimp	Contacts Not Included	2	-40 °C	105 ░C	2	Receptacle	Natural	Latch Lock	Female Socket			Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6
TE Connectivity Raychem Cable Protection 1-1969614-6	Crimp	Contacts Not Included	2	-40 °C	105 ░C		Receptacle	Natural	Latch Lock	Female Socket	4.2 mm	0.165 in	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6	16

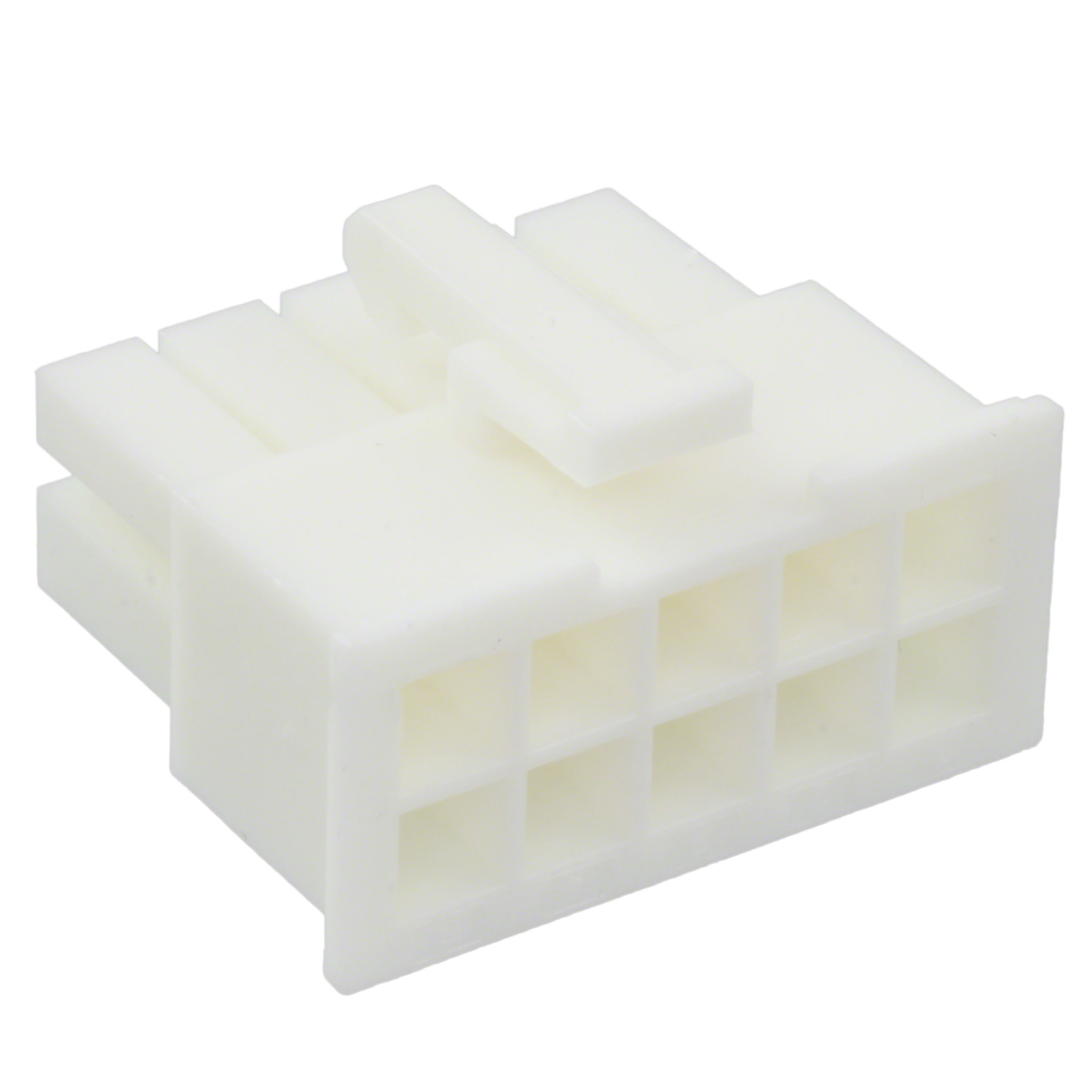

TE Connectivity Raychem Cable Protection 1-1969614-0	Crimp	Contacts Not Included	2	-40 °C	105 ░C	10	Receptacle	Natural	Latch Lock	Female Socket	4.2 mm	0.165 in	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6
TE Connectivity Raychem Cable Protection 1-1969614-4	Crimp	Contacts Not Included	2	-40 °C	105 ░C	14	Receptacle	Natural	Latch Lock	Female Socket	4.2 mm	0.165 in	Free Hanging (In-Line)	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6
