104319 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER R/A 40POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Mounting Type	Contact Finish - Mating	Contact Material	Insulation Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [custom]	Contact Length - Post [custom]	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Fastening Type	Connector Type	Number of Positions Loaded	Material Flammability Rating	Current Rating (Amps)	Insulation Height	Insulation Height	Insulation Color	Number of Rows [custom]	Contact Length - Mating	Contact Length - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post
TE Connectivity AMP Connectors 5-104319-4	2.54 µm	100 µin	40	Right Angle Through Hole	Gold	Phosphor Bronze	Thermoplastic	Board Guide	105 ░C	-65 ░C	Solder	Shrouded - 4 Wall	0.38 µm	15 µin	0.135 in	3.43 mm	Square	0.1 in	2.54 mm	Board to Board Cable	Detent Lock	Header	All	UL94 V-0	3 A	10.16 mm	0.4 in	Black	2	8.08 mm	0.318 in	Male Pin	0.1 "	2.54 mm	Tin
TE Connectivity AMP Connectors 104319-8	2.54 µm	100 µin	12	Right Angle Through Hole	Gold	Phosphor Bronze	Thermoplastic	Board Guide	105 ░C	-65 ░C	Solder	Shrouded - 4 Wall	0.38 µm	15 µin	0.135 in	3.43 mm	Square	0.1 in	2.54 mm	Board to Board Cable	Detent Lock	Header	All	UL94 V-0	3 A	10.16 mm	0.4 in	Black	2	8.08 mm	0.318 in	Male Pin	0.1 "	2.54 mm	Tin-Lead

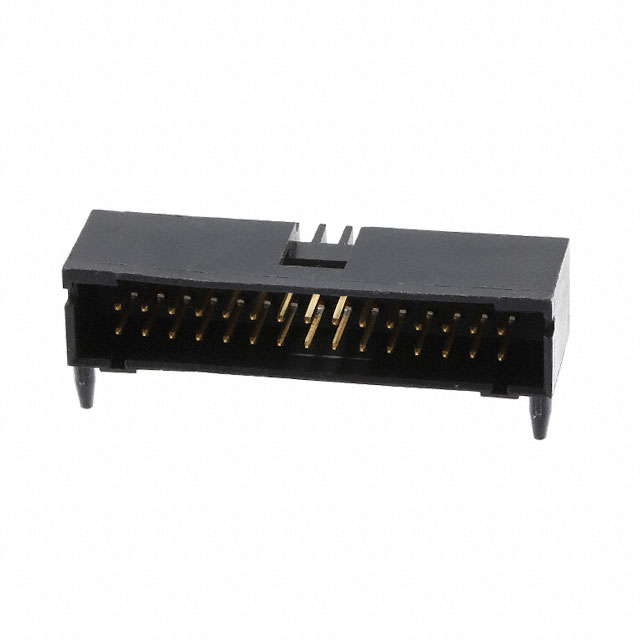

TE Connectivity AMP Connectors 104319-3	2.54 µm	100 µin	30	Right Angle Through Hole	Gold	Phosphor Bronze	Thermoplastic	Board Guide	105 ░C	-65 ░C	Solder	Shrouded - 4 Wall	0.38 µm	15 µin	0.135 in	3.43 mm	Square	0.1 in	2.54 mm	Board to Board Cable	Detent Lock	Header	All	UL94 V-0	3 A	10.16 mm	0.4 in	Black	2	8.08 mm	0.318 in	Male Pin	0.1 "	2.54 mm	Tin-Lead
