R16123 Series

Catalog

N / STRAIGHT JACK FULL CRIMP-TYP

Part	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Center Contact Plating	Body Material	Insertion Loss	Voltage Rating	Body Finish	Contact Termination	Mounting Type	Housing Color	Center Contact Material	Ingress Protection	Shield Termination	Fastening Type	Impedance	Frequency - Max [Max]	Cable Group	Connector Type	Connector Style	Number of Ports	Cable Group
Radiall USA, Inc. R161238000W	500	155 C	-55 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	0.15 dB	850 V	White Bronze	Crimp	Free Hanging (In-Line)	Silver	Beryllium Copper	IP67 - Dust Tight Waterproof	Crimp	Threaded	50 Ohms	11 GHz	223 400 RG-142	Female Socket Jack	N Type	1
Radiall USA, Inc. R161237000W	500	155 C	-55 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	0.15 dB	850 V	White Bronze	Crimp	Free Hanging (In-Line)	Silver	Beryllium Copper	IP67 - Dust Tight Waterproof	Crimp	Threaded	50 Ohms	11 GHz	RG-58	Female Socket Jack	N Type	1	141

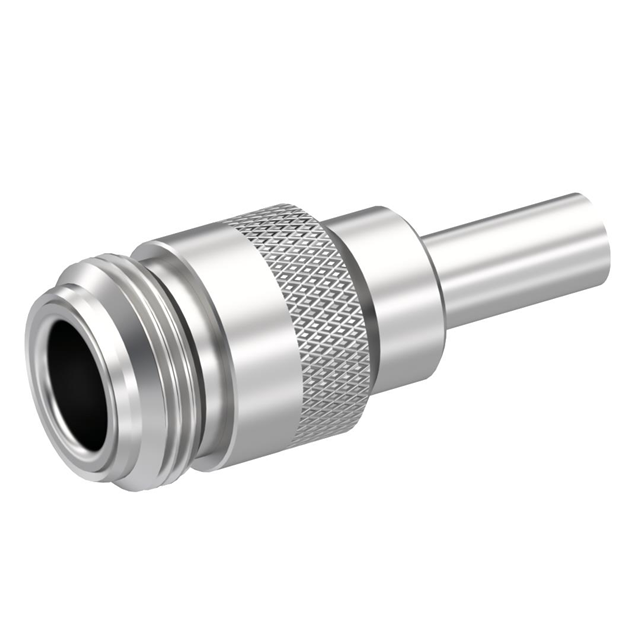

Radiall USA, Inc. R161237000	500	155 C	-55 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	0.15 dB	850 V	White Bronze	Crimp	Free Hanging (In-Line)	Silver	Beryllium Copper	IP67 - Dust Tight Waterproof	Crimp	Threaded	50 Ohms	11 GHz	RG-58	Female Socket Jack	N Type	1	141
Radiall USA, Inc. R161238000	500	155 C	-55 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	0.15 dB	850 V	White Bronze	Crimp	Free Hanging (In-Line)	Silver	Beryllium Copper	IP67 - Dust Tight Waterproof	Crimp	Threaded	50 Ohms	11 GHz	223 400 RG-142	Female Socket Jack	N Type	1

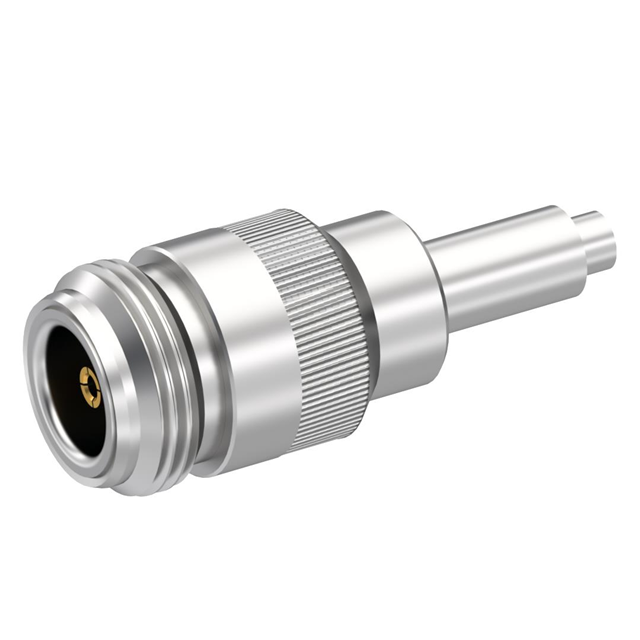

Radiall USA, Inc. R161236000	500	155 C	-55 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	0.15 dB	250 V	White Bronze	Crimp	Free Hanging (In-Line)	Silver	Beryllium Copper	IP67 - Dust Tight Waterproof	Crimp	Threaded	50 Ohms	11 GHz	316 316 Double Braid RG-188	Female Socket Jack	N Type	1
