02S118 Series
Manufacturer: Rosenberger
Beta
⌘K

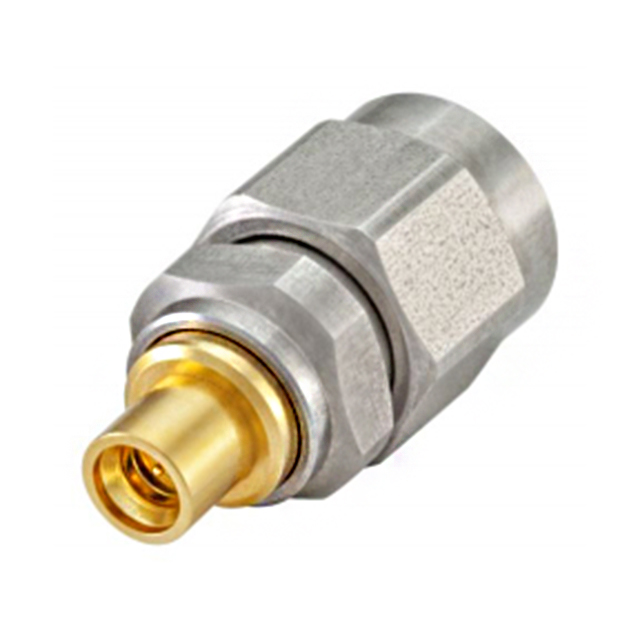

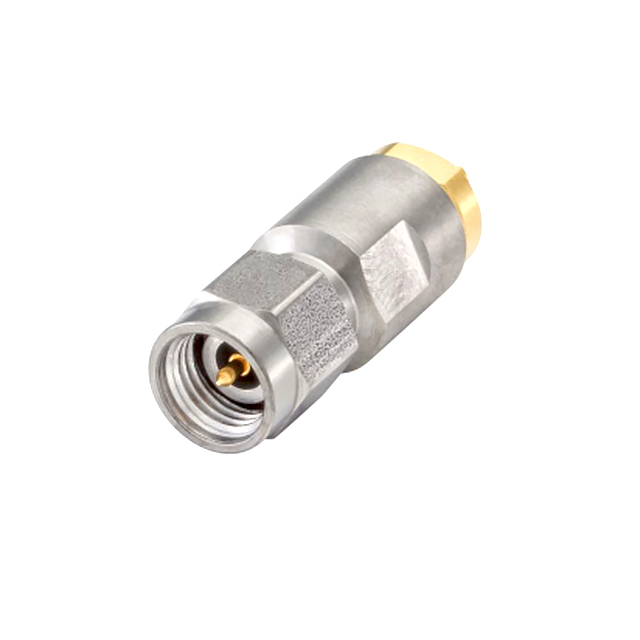

PRECISION 2.92 CALIBRATION ADAPT
| Part | Type | For Use With/Related Products | Accessory Type | Specifications | Body Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Dielectric Material | Convert To (Adapter End) | Mounting Type | Frequency - Max [Max] | Adapter Type | Center Contact Plating | Fastening Type | Conversion Type | Impedance | Convert From (Adapter End) | Convert From (Adapter End) | Style | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Specialized | Network Analyzer | Calibration Adapter | 2.92 Plug Mini Plug SMP | ||||||||||||||||||
 Rosenberger | Beryllium Copper Stainless Steel | Gold Passivated | 85 °C | -40 C | Beryllium Copper | Polystyrene (PS) Polytetrafluoroethylene (PTFE) | SMP Mini Jack Female Socket | Free Hanging (In-Line) | 40 GHz | Plug to Jack | Gold | Snap-On Threaded | Between Series | 50 Ohms | Plug Male Pin | 2.92 mm | Straight | Mini RPC-2.92 SMP |
