0461-4 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.020 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Material	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0461-4-15-01-11-27-04-0	-55 C	125 °C	Gold	0.235 in	5.97 mm	0.041 in	1.04 mm	3.81 mm	0.15 in	0.46 mm	0.018 in	Solder	0.031 in	0.79 mm	30 Áin	0.76 Ám	0.02 in	0.38 mm	0.015 "	0.51 mm	Beryllium Copper	Standard Tail	0.02 in	0.51 mm

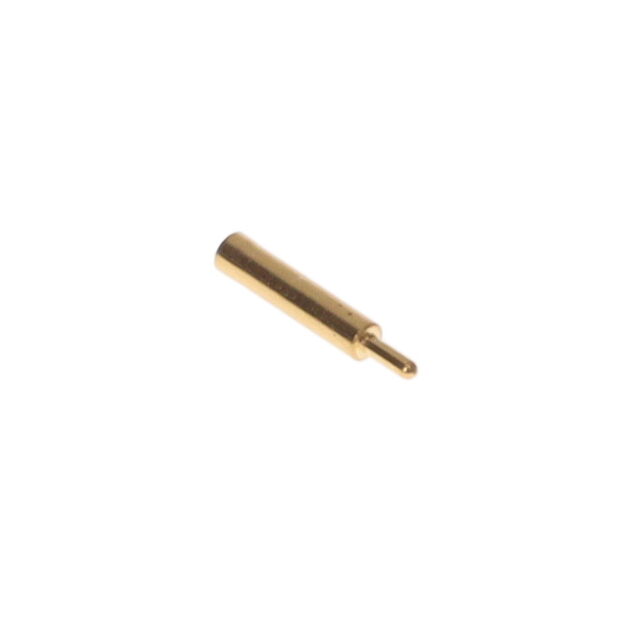

Mill-Max Manufacturing Corp. 0461-4-15-15-21-14-04-0	-55 C	125 °C	Gold	0.235 in	5.97 mm	0.041 in	1.04 mm	3.81 mm	0.15 in	0.46 mm	0.018 in	Solder	0.031 in	0.79 mm	10 Áin	0.25 Ám	0.022 in	0.38 mm	0.015 "		Beryllium Copper	Standard Tail	0.02 in	0.51 mm	0.56 mm
Mill-Max Manufacturing Corp. 0461-4-15-15-11-27-04-0	-55 C	125 °C	Gold	0.235 in	5.97 mm	0.041 in	1.04 mm	3.81 mm	0.15 in	0.46 mm	0.018 in	Solder	0.031 in	0.79 mm	30 Áin	0.76 Ám	0.02 in	0.38 mm	0.015 "	0.51 mm	Beryllium Copper	Standard Tail	0.02 in	0.51 mm
Mill-Max Manufacturing Corp. 0461-4-15-80-11-14-04-0	-55 C	125 °C	Gold	0.235 in	5.97 mm	0.041 in	1.04 mm	3.81 mm	0.15 in	0.46 mm	0.018 in	Solder	0.031 in	0.79 mm	10 Áin	0.25 Ám	0.022 in	0.38 mm	0.015 "		Beryllium Copper	Standard Tail	0.02 in	0.51 mm	0.56 mm
Mill-Max Manufacturing Corp. 0461-4-15-01-21-02-04-0	-55 C	125 °C	Tin-Lead	0.235 in	5.97 mm	0.041 in	1.04 mm	3.81 mm	0.15 in	0.46 mm	0.018 in	Solder	0.031 in	0.79 mm	100 µin	2.54 µm	0.022 in	0.38 mm	0.015 "		Beryllium Copper	Standard Tail	0.02 in	0.51 mm	0.56 mm
Mill-Max Manufacturing Corp. 0461-4-15-01-11-02-04-0	-55 C	125 °C	Tin-Lead	0.235 in	5.97 mm	0.041 in	1.04 mm	3.81 mm	0.15 in	0.46 mm	0.018 in	Solder	0.031 in	0.79 mm	100 µin	2.54 µm	0.02 in	0.38 mm	0.015 "	0.51 mm	Beryllium Copper	Standard Tail	0.02 in	0.51 mm

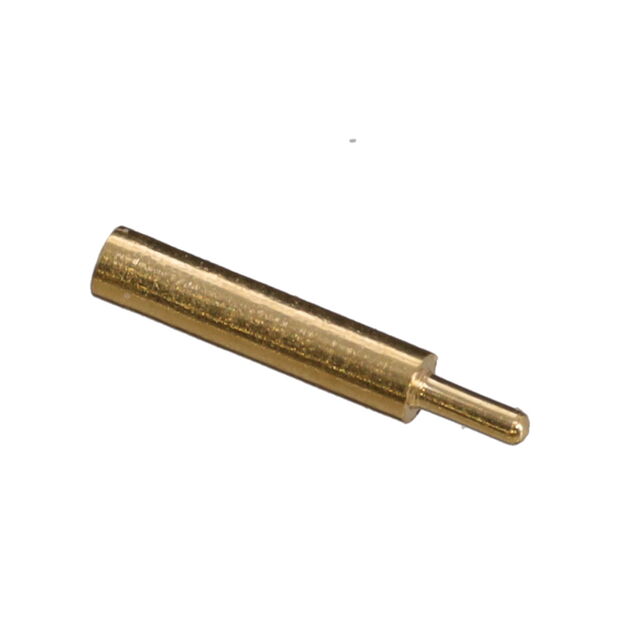

Mill-Max Manufacturing Corp. 0461-4-15-15-11-14-04-0	-55 C	125 °C	Gold	0.235 in	5.97 mm	0.041 in	1.04 mm	3.81 mm	0.15 in	0.46 mm	0.018 in	Solder	0.031 in	0.79 mm	10 Áin	0.25 Ám	0.022 in	0.38 mm	0.015 "		Beryllium Copper	Standard Tail	0.02 in	0.51 mm	0.56 mm

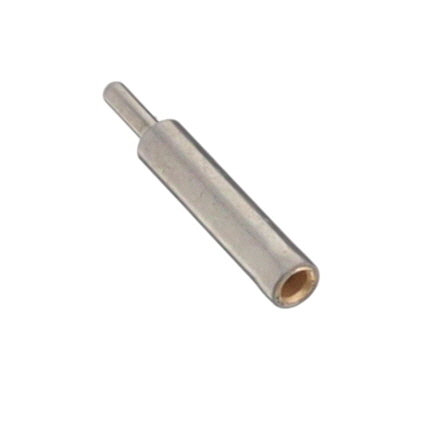

Mill-Max Manufacturing Corp. 0461-4-15-01-11-14-04-0	-55 C	125 °C	Gold	0.235 in	5.97 mm	0.041 in	1.04 mm	3.81 mm	0.15 in	0.46 mm	0.018 in	Solder	0.031 in	0.79 mm	10 Áin	0.25 Ám	0.02 in	0.38 mm	0.015 "	0.51 mm	Beryllium Copper	Standard Tail	0.02 in	0.51 mm
Mill-Max Manufacturing Corp. 0461-4-15-80-21-27-04-0	-55 C	125 °C	Gold	0.235 in	5.97 mm	0.041 in	1.04 mm	3.81 mm	0.15 in	0.46 mm	0.018 in	Solder	0.031 in	0.79 mm	30 Áin	0.76 Ám	0.022 in	0.38 mm	0.015 "		Beryllium Copper	Standard Tail	0.02 in	0.51 mm	0.56 mm
Mill-Max Manufacturing Corp. 0461-4-15-01-21-27-04-0	-55 C	125 °C	Gold	0.235 in	5.97 mm	0.041 in	1.04 mm	3.81 mm	0.15 in	0.46 mm	0.018 in	Solder	0.031 in	0.79 mm	30 Áin	0.76 Ám	0.022 in	0.38 mm	0.015 "		Beryllium Copper	Standard Tail	0.02 in	0.51 mm	0.56 mm
