UNR412 Series

Catalog

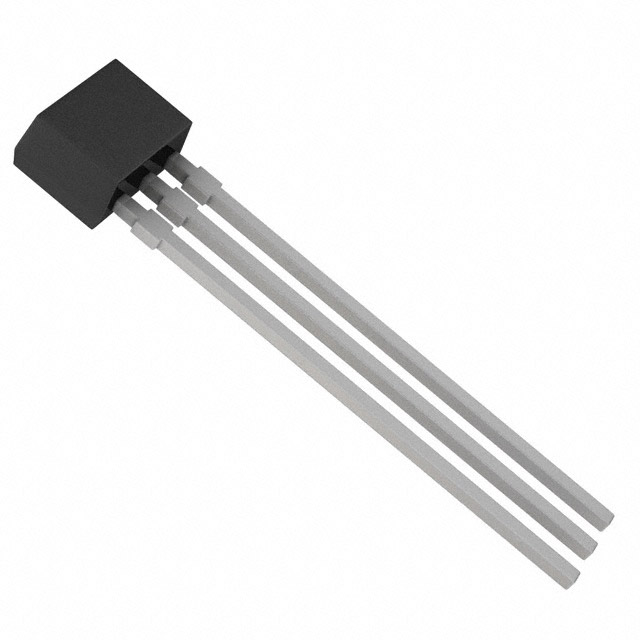

TRANS PREBIAS PNP 50V NS-A1

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Current - Collector Cutoff (Max) [Max]	Resistor - Base (R1)	Frequency - Transition	Resistor - Emitter Base (R2)	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Vce Saturation (Max) @ Ib, Ic	Current - Collector (Ic) (Max) [Max]	Mounting Type
Panasonic Electronic Components UNR412400A	60 hFE	PNP - Pre-Biased	1 µA	2.2 kOhm	200 MHz	10 kOhms	NS-A1	50 V	3-SSIP	250 mV	500 mA	Through Hole
