PB-300 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

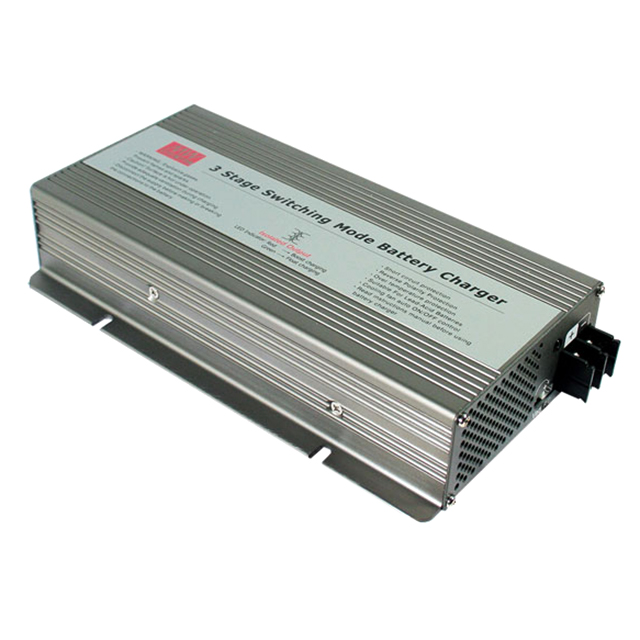

BATT CHRGR ENCLOSED 14.4V 20.85A
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Weight | Type | Voltage - Nominal | Features | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Battery Chemistry [custom] | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Number of Cells | Charge Current - Max [Max] | Termination Style | Battery Cell Size | Power - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 50 °C | -10 °C | CB cURus | 1450 g | Enclosed | 14.4 V | LED Indicator | 9.96 in | 1.91 " | 5.31 in | 48.5 mm | 253 mm | 135 mm | Lead Acid Lithium-Ion | 90 VAC 180 VAC | 132 VAC 264 VAC | Chassis Mount | 1 | 20.85 A | Screw Terminal | 12 V | 300 W |
MEAN WELL USA Inc. | 50 °C | -10 °C | CB cURus | 1450 g | Enclosed | 28.8 V | LED Indicator | 9.96 in | 1.91 " | 5.31 in | 48.5 mm | 253 mm | 135 mm | Lead Acid Lithium-Ion | 90 VAC 180 VAC | 132 VAC 264 VAC | Chassis Mount | 1 | 10.5 A | Screw Terminal | 24 V | 300 W |
