317-018 Series
Manufacturer: EDAC Inc.
Beta
⌘K

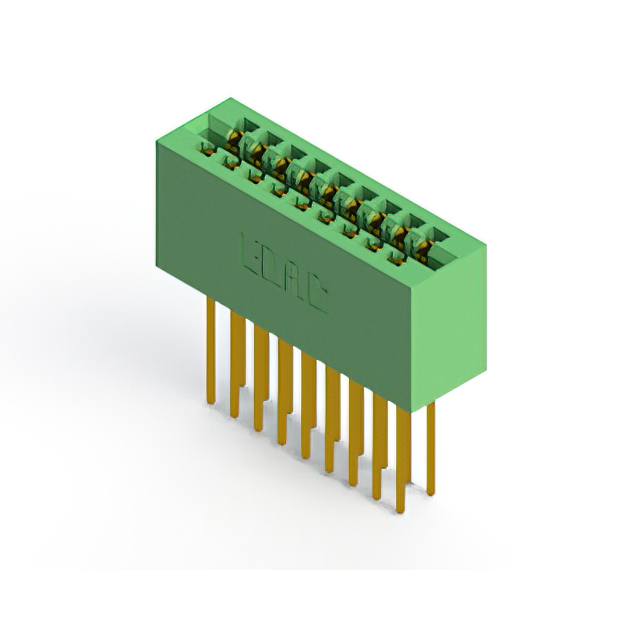

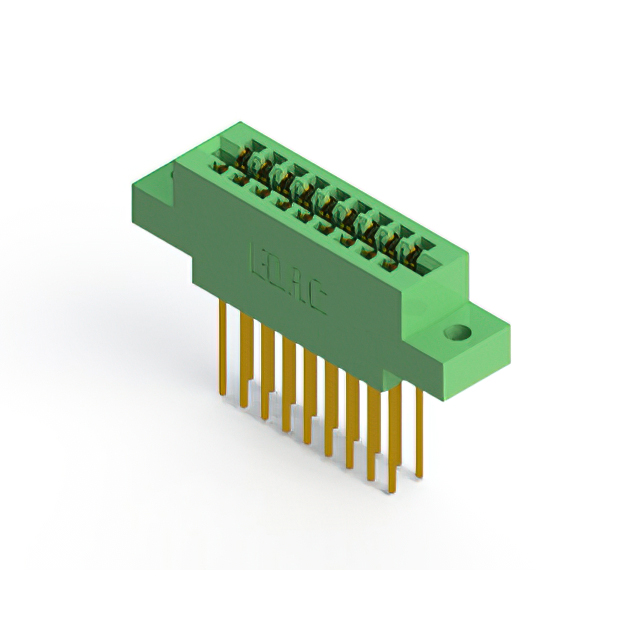

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 18 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination | Read Out | Card Thickness [Max] | Card Thickness [Min] | Card Type | Number of Positions/Bay/Row [custom] | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Flange Feature | Number of Positions | Gender | Pitch | Pitch | Contact Material | Number of Rows [custom] | Color | Mounting Type | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | Wire Wrap | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 18 | Gold | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Cantilever | M3 Threaded Insert Top Mount Opening | 36 | Female | 3.96 mm | 0.156 in | Copper Alloy | 2 | Green | Through Hole | |
 EDAC Inc. | Diallyl Phthalate (DAP) | Wire Wrap | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Gold | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Cantilever | 18 | Female | 3.96 mm | 0.156 in | Copper Alloy | 2 | Green | Through Hole | 9 |
