504622 Series

Manufacturer: Molex

Catalog

SLIMSTACK BOARD-TO-BOARD PLUG, 0.35MM PITCH, SSB6 STANDARD SERIES, 0.60MM MATED HEIGHT, 2.00MM MATED WIDTH, 64 CIRCUITS

Part	Height Above Board [z]	Height Above Board [z]	Connector Type	Pitch	Pitch	Number of Positions	Number of Rows [custom]	Features	Contact Finish	Mated Stacking Heights	Mounting Type	Number of Positions [custom]

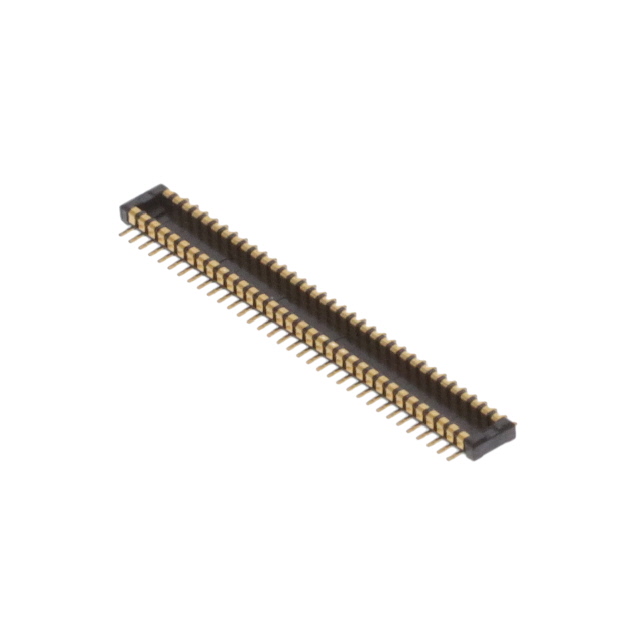

Molex 5046226412	0.48 mm	0.019 "	Plug Outer Shroud Contacts	0.014 in	0.35 mm	64	2	Pick and Place Solder Retention	Gold	0.6 mm	Surface Mount
Molex 5046225012	0.48 mm	0.019 "	Plug Outer Shroud Contacts	0.014 in	0.35 mm	50	2	Pick and Place Solder Retention	Gold	0.6 mm	Surface Mount

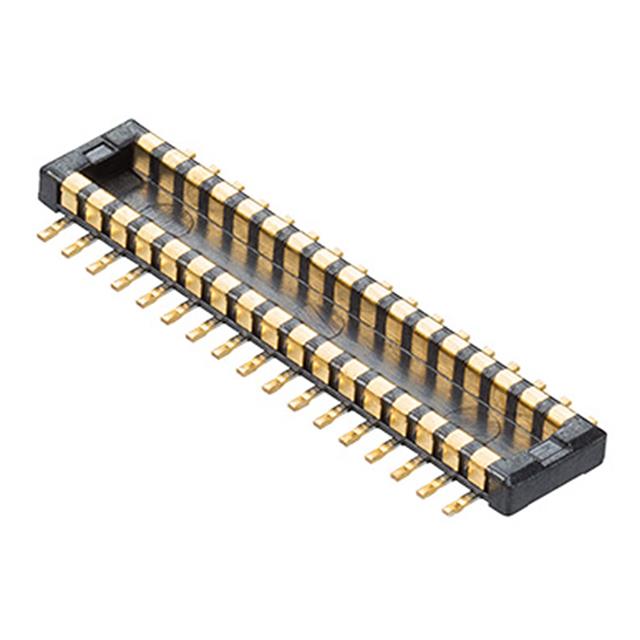

Molex 5046221012	0.48 mm	0.019 "	Plug Outer Shroud Contacts	0.014 in	0.35 mm	10	2	Pick and Place Solder Retention	Gold	0.6 mm	Surface Mount
Molex 5046224012	0.48 mm	0.019 "	Plug Outer Shroud Contacts	0.014 in	0.35 mm	40	2	Pick and Place Solder Retention	Gold	0.6 mm	Surface Mount
Molex 5046223412	0.48 mm	0.019 "	Plug Outer Shroud Contacts	0.014 in	0.35 mm		2	Pick and Place Solder Retention	Gold	0.6 mm	Surface Mount	34
Molex 5046227012	0.48 mm	0.019 "	Plug Outer Shroud Contacts	0.014 in	0.35 mm	70	2	Pick and Place Solder Retention	Gold	0.6 mm	Surface Mount

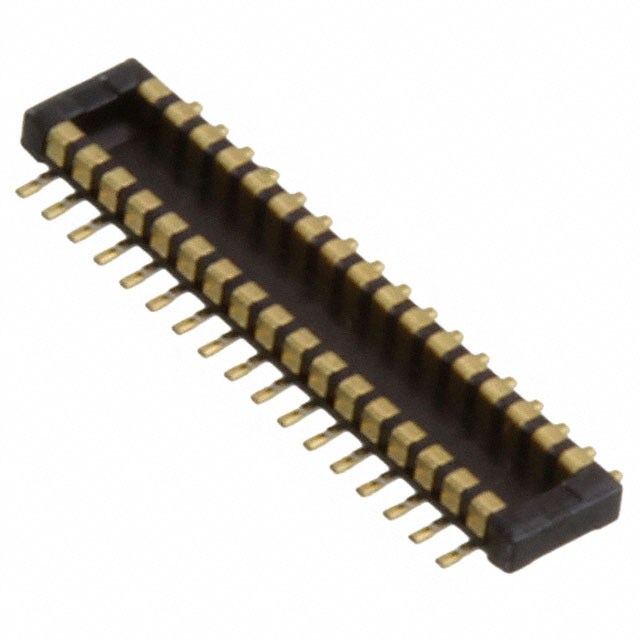

Molex 5046223010	0.48 mm	0.019 "	Plug Outer Shroud Contacts	0.014 in	0.35 mm	30	2		Gold	0.6 mm	Surface Mount

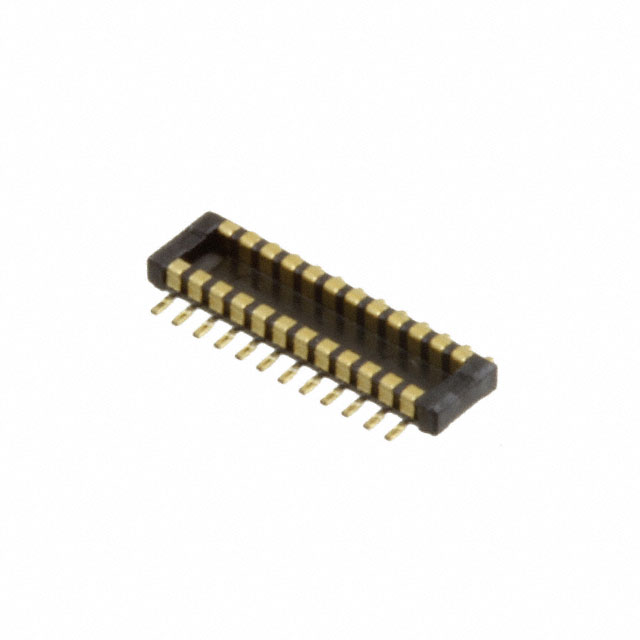

Molex 5046222010	0.48 mm	0.019 "	Plug Outer Shroud Contacts	0.014 in	0.35 mm	20	2		Gold	0.6 mm	Surface Mount

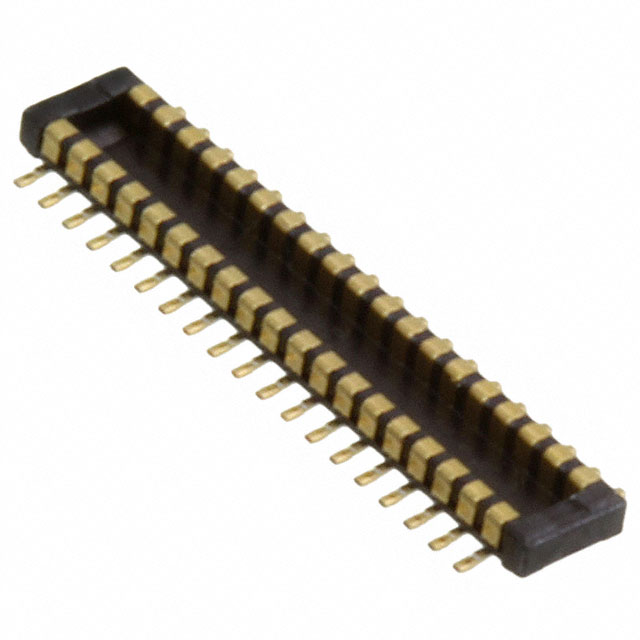

Molex 5046223410	0.48 mm	0.019 "	Plug Outer Shroud Contacts	0.014 in	0.35 mm		2		Gold	0.6 mm	Surface Mount	34

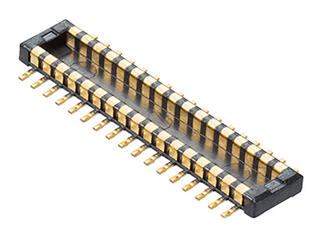

Molex 5046222412	0.48 mm	0.019 "	Plug Outer Shroud Contacts	0.014 in	0.35 mm	24	2	Pick and Place Solder Retention	Gold	0.6 mm	Surface Mount
