ECW-F2155 Series

Catalog

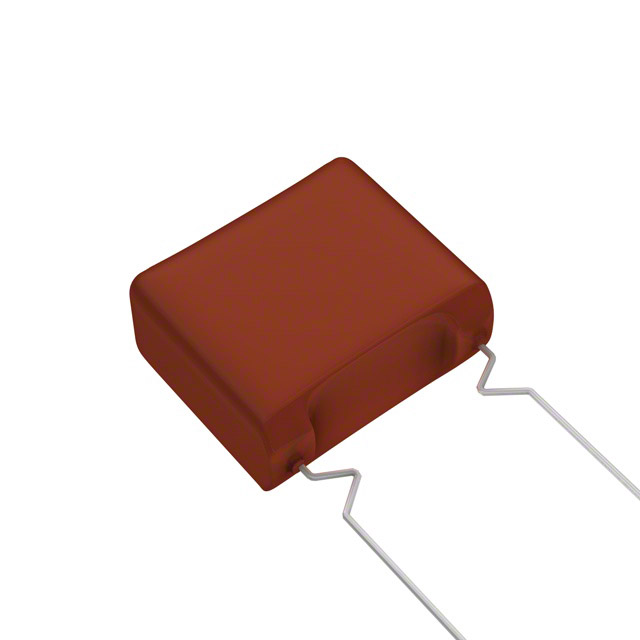

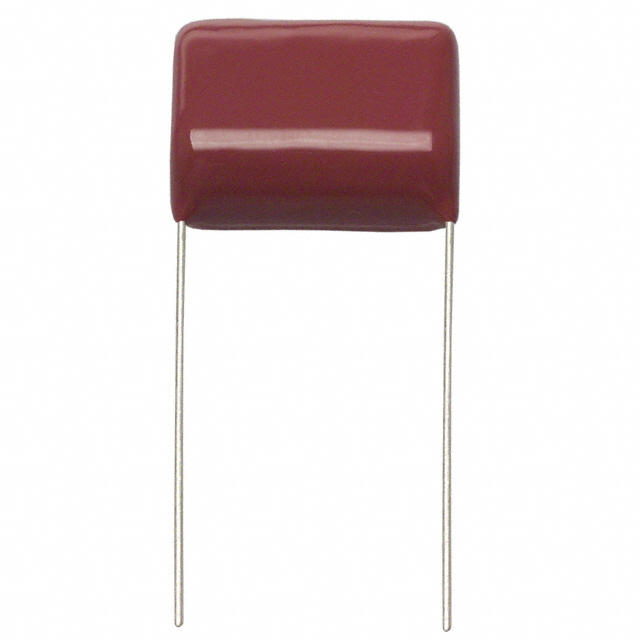

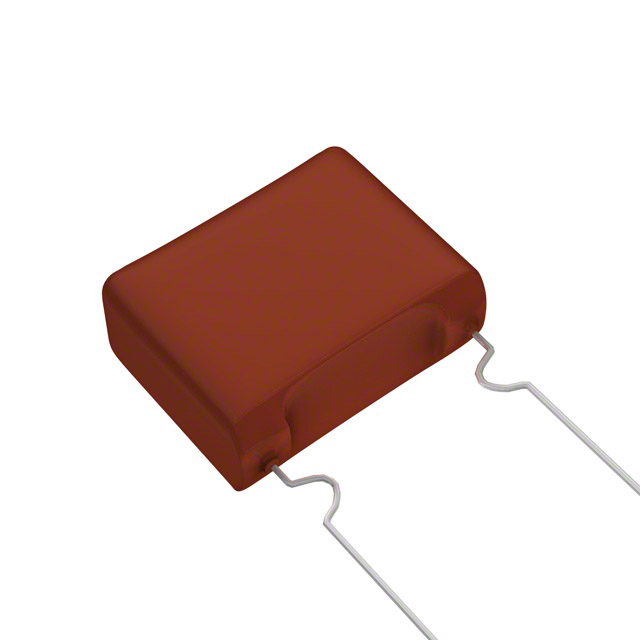

ECWF(A), MET POLYPROP FILM CAP, RAD LEAD ROHS COMPLIANT: YES

Part	Dielectric Material	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Applications	Tolerance	Capacitance	Voltage Rating - DC	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Lead Spacing [x]	Lead Spacing [x]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECW-F2155RHA	Polypropylene (PP) Metallized	15 mm	0.591 in	-40 C	105 ░C	PC Pins	Through Hole	High Frequency Switching	3 %	1500 nF	250 V	Radial	0.673 in	17.1 mm	0.74 "	0.413 in	18.8 mm	10.5 mm
Panasonic Electronic Components ECW-F2155JB	Polypropylene (PP) Metallized			-25 °C	85 °C	PC Pins	Through Hole	High Frequency Switching	5 %	1500 nF	250 V	Radial	22.5 mm		0.906 in	0.551 in	23 mm	14 mm	0.787 in	20 mm	0.886 in
Panasonic Electronic Components ECW-F2155HAB	Polypropylene (PP) Metallized	7.5 mm	0.295 in	-40 C	105 ░C	PC Pins	Through Hole	High Frequency Switching	3 %	1500 nF	250 V	Radial	22.1 mm		0.74 "	0.413 in	18.8 mm	10.5 mm			0.87 in
Panasonic Electronic Components ECW-F2155JAQ	Polypropylene (PP) Metallized	15 mm	0.591 in	-40 C	105 ░C	PC Pins	Through Hole	High Frequency Switching	5 %	1500 nF	250 V	Radial	24.1 mm		0.74 "	0.413 in	18.8 mm	10.5 mm			0.949 in
Panasonic Electronic Components ECW-F2155RJA	Polypropylene (PP) Metallized	15 mm	0.591 in	-40 C	105 ░C	PC Pins	Through Hole	High Frequency Switching	5 %	1500 nF	250 V	Radial	0.673 in	17.1 mm	0.74 "	0.413 in	18.8 mm	10.5 mm
