A53F2C-P Series

Manufacturer: ODU

Catalog

ODU MINI-SNAP BREAK-AWAY PLUG, S

Part	Mounting Type	Material Flammability Rating	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Shielding	Primary Material	Shell Material	Fastening Type	Connector Type	Applications	Current Rating (Amps)	Contact Finish - Mating	Features	Shell Finish	Shell Size - Insert	Backshell Material, Plating	Orientation [custom]	Voltage Rating	Insert Material	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Color	Number of Positions	Termination
ODU A53F2C-P18MJG0-7000	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	120 °C	-40 C	Brass	Unshielded	Metal	Brass	Push-Pull	Plug Male Pins	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Gold	Backshell	Chrome over Nickel	3 TPI	Brass Chrome over Nickel	2	366 V	Polyetheretherketone (PEEK)	0.256 in	0.276 "	7 mm	6.5 mm	Silver	18

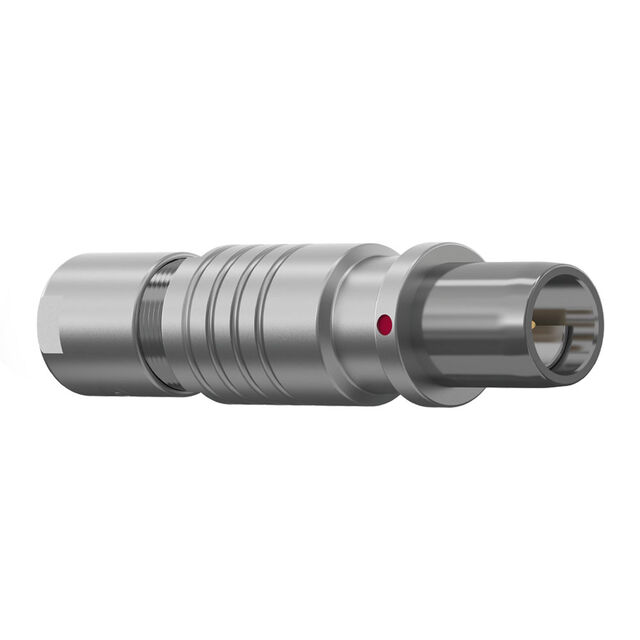

ODU A53F2C-P27MFG0-0100	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	120 °C	-40 C	Brass	Unshielded	Metal	Brass	Push-Pull	Plug Male Pins	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Gold	Backshell	Chrome over Nickel	3 TPI	Brass Chrome over Nickel	2	300 VDC	Polyetheretherketone (PEEK)	0.374 in	0.394 in	10 mm	9.5 mm	Silver	27
ODU A53F2C-P15PJH0-6500	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	120 °C	-40 C	Brass	Unshielded	Metal	Brass	Push-Pull	Plug Male Pins	Industrial Medical Military Testing Equipment & Measurement	10 A	Gold	Backshell	Chrome over Nickel	3 TPI	Brass Chrome over Nickel	2	333 V	Polyetheretherketone (PEEK)	0.236 in	0.256 in	6.5 mm	6 mm	Silver	15	Crimp
ODU A53F2C-P27MFG0-6000	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	120 °C	-40 C	Brass	Unshielded	Metal	Brass	Push-Pull	Plug Male Pins	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Gold	Backshell	Chrome over Nickel	3 TPI	Brass Chrome over Nickel	2	300 VDC	Polyetheretherketone (PEEK)	0.217 in	0.236 in	6 mm	5.5 mm	Silver	27
ODU A53F2C-P27MFG0-6500	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	120 °C	-40 C	Brass	Unshielded	Metal	Brass	Push-Pull	Plug Male Pins	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Gold	Backshell	Chrome over Nickel	3 TPI	Brass Chrome over Nickel	2	300 VDC	Polyetheretherketone (PEEK)	0.236 in	0.256 in	6.5 mm	6 mm	Silver	27
ODU A53F2C-P27MFG0-7000	Free Hanging (In-Line)	UL94 V-0	IP68 - Dust Tight Waterproof	120 °C	-40 C	Brass	Unshielded	Metal	Brass	Push-Pull	Plug Male Pins	Industrial Medical Military Testing Equipment & Measurement	7.5 A	Gold	Backshell	Chrome over Nickel	3 TPI	Brass Chrome over Nickel	2	300 VDC	Polyetheretherketone (PEEK)	0.256 in	0.276 "	7 mm	6.5 mm	Silver	27
