11TS1 Series

Catalog

SWITCH TOGGLE SPDT 20A 125V

Part	Actuator Material	Switch Function	Illumination	Circuit	Actuator Length [x]	Termination Style	Actuator Type	Current Rating (Amps)	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Panel Cutout Dimensions [diameter]	Bushing Thread

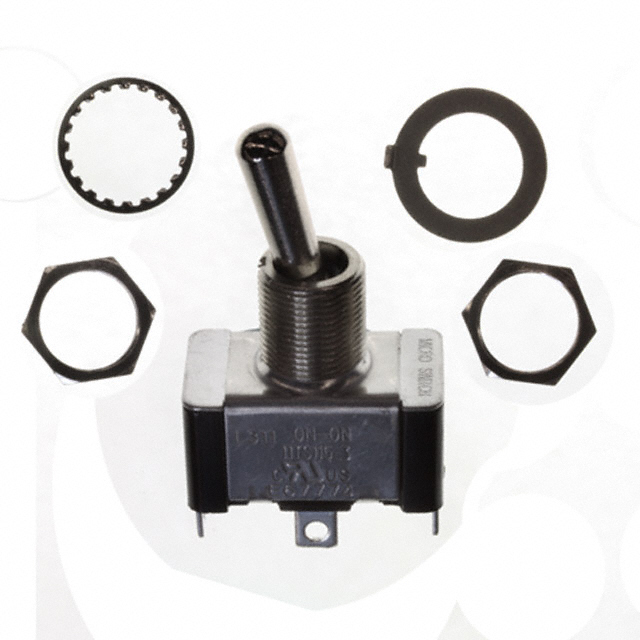

Honeywell Sensing and Productivity Solutions 11TS115-3	Nickel Plated	On-On	Non-Illuminated	SPDT	16.51 mm	Solder Lug	Standard Round	20 A	125 V	71 °C	-54 °C	Panel Mount	12.4 mm	15/32-32

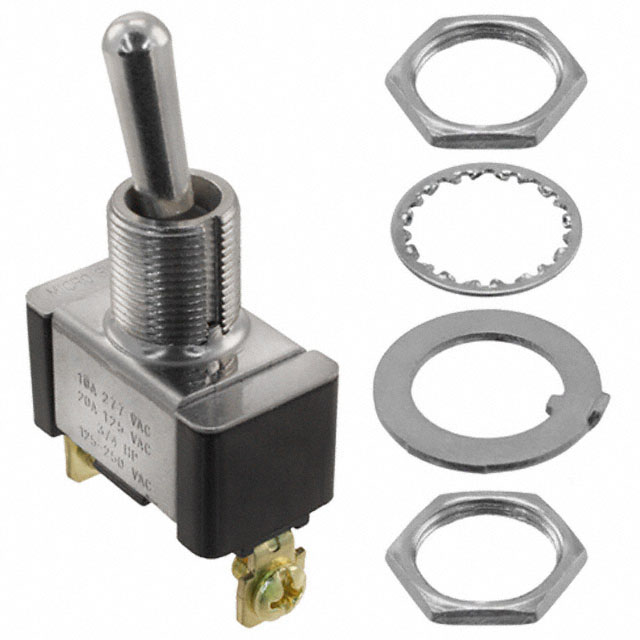

Honeywell Sensing and Productivity Solutions 11TS15-8	Nickel Plated	On-Mom	Non-Illuminated	SPDT	16.51 mm	Screw Terminal	Standard Round	20 A	125 V	71 °C	-54 °C	Panel Mount	12.4 mm	15/32-32

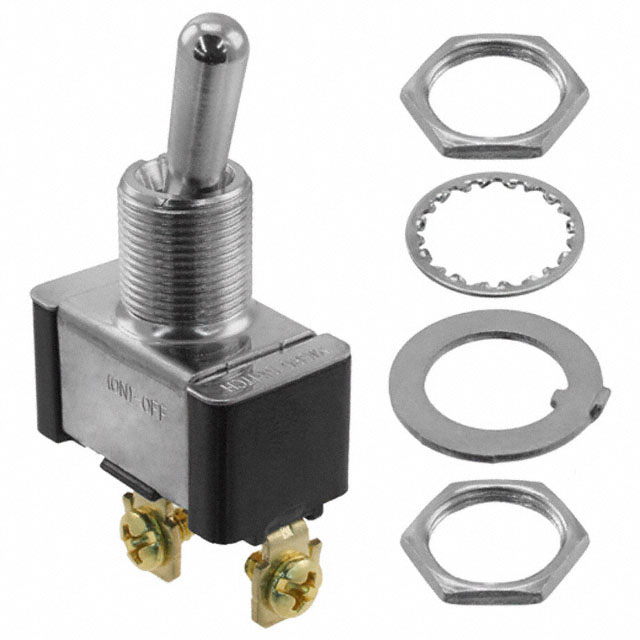

Honeywell Sensing and Productivity Solutions 11TS15-6	Nickel Plated	Off-Mom	Non-Illuminated	SPST-NO	16.51 mm	Screw Terminal	Standard Round	20 A	125 V	71 °C	-54 °C	Panel Mount	12.4 mm	15/32-32

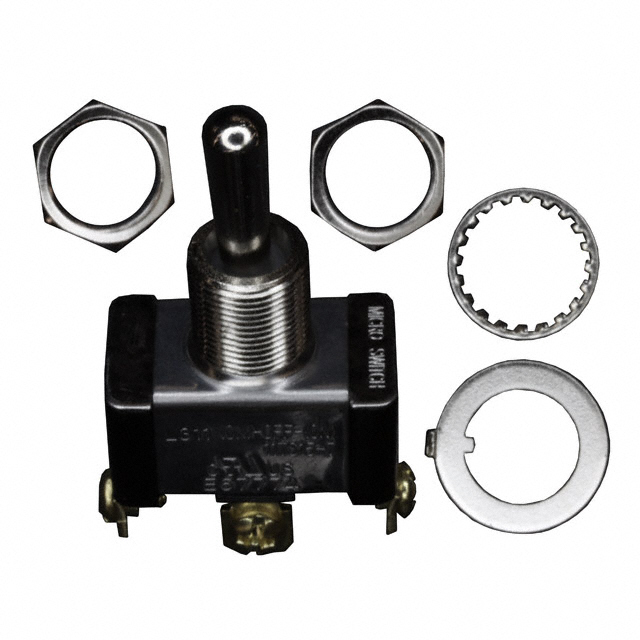

Honeywell Sensing and Productivity Solutions 11TS15-7	Nickel Plated	Mom-Off-Mom	Non-Illuminated	SPDT	16.51 mm	Screw Terminal	Standard Round	20 A	125 V	71 °C	-54 °C	Panel Mount	12.4 mm	15/32-32
