325020 Series

Catalog

CONN BARRIER STRP 22CIRC 0.325"

Part	Terminal Screw Material	Mounting Type	Material - Insulation	Operating Temperature	Material Flammability Rating	Bottom Termination	Features	Wire Gauge [Min]	Wire Gauge [Max]	Top Termination	Number of Rows	Terminal Block Type	Current Rating (Amps)	Number of Wire Entries	Number of Circuits	Voltage Rating	Barrier Type	Pitch	Pitch	Number of Circuits [custom]
Curtis Industries 325020-22-0	Steel	Chassis Panel Through Hole	Polypropylene (PP)	105 C	UL94 V-0	Wire Wrap	Flange	14 AWG	22 AWG	Screws	1	Barrier Block	15 A	22	22	300 VDC	2 Wall (Dual)	0.325 in	8.26 mm

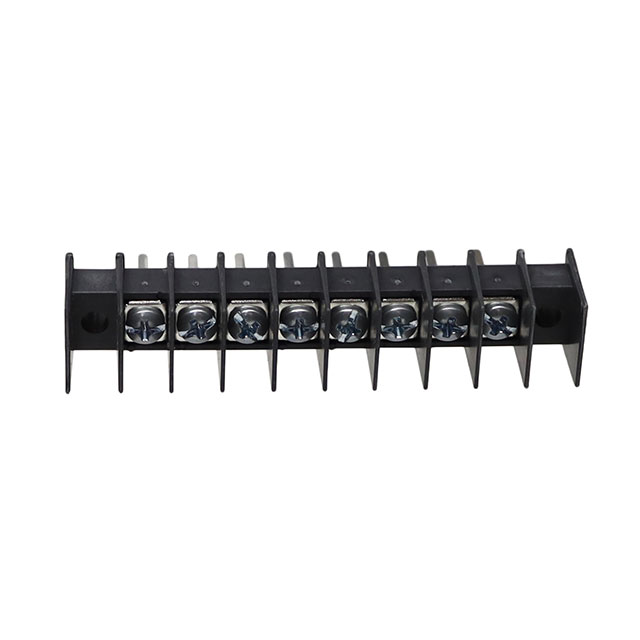

Curtis Industries 325020-08-0	Steel	Chassis Panel Through Hole	Polypropylene (PP)	105 C	UL94 V-0	Wire Wrap	Flange	14 AWG	22 AWG	Screws	1	Barrier Block	15 A	8	8	300 VDC	2 Wall (Dual)	0.325 in	8.26 mm
Curtis Industries 325020-24-0	Steel	Chassis Panel Through Hole	Polypropylene (PP)	105 C	UL94 V-0	Wire Wrap	Flange	14 AWG	22 AWG	Screws	1	Barrier Block	15 A		24	300 VDC	2 Wall (Dual)	0.325 in	8.26 mm
Curtis Industries 325020-23-0	Steel	Chassis Panel Through Hole	Polypropylene (PP)	105 C	UL94 V-0	Wire Wrap	Flange	14 AWG	22 AWG	Screws	1	Barrier Block	15 A	23		300 VDC	2 Wall (Dual)	0.325 in	8.26 mm	23

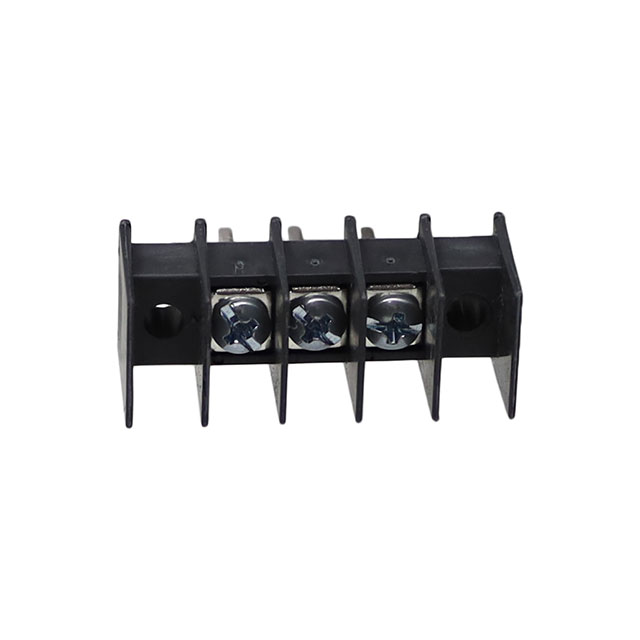

Curtis Industries 325020-03-0	Steel	Chassis Panel Through Hole	Polypropylene (PP)	105 C	UL94 V-0	Wire Wrap	Flange	14 AWG	22 AWG	Screws	1	Barrier Block	15 A	3	3	300 VDC	2 Wall (Dual)	0.325 in	8.26 mm
Curtis Industries 325020-17-0	Steel	Chassis Panel Through Hole	Polypropylene (PP)	105 C	UL94 V-0	Wire Wrap	Flange	14 AWG	22 AWG	Screws	1	Barrier Block	15 A	17	17	300 VDC	2 Wall (Dual)	0.325 in	8.26 mm
Curtis Industries 325020-26-0	Steel	Chassis Panel Through Hole	Polypropylene (PP)	105 C	UL94 V-0	Wire Wrap	Flange	14 AWG	22 AWG	Screws	1	Barrier Block	15 A	26	26	300 VDC	2 Wall (Dual)	0.325 in	8.26 mm
Curtis Industries 325020-21-0	Steel	Chassis Panel Through Hole	Polypropylene (PP)	105 C	UL94 V-0	Wire Wrap	Flange	14 AWG	22 AWG	Screws	1	Barrier Block	15 A	21	21	300 VDC	2 Wall (Dual)	0.325 in	8.26 mm

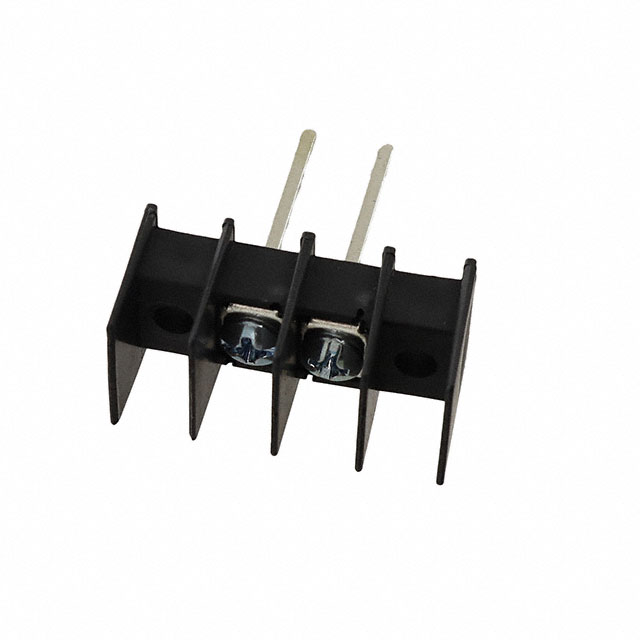

Curtis Industries 325020-02-0	Steel	Chassis Panel Through Hole	Polypropylene (PP)	105 C	UL94 V-0	Wire Wrap	Flange	14 AWG	22 AWG	Screws	1	Barrier Block	15 A	2	2	300 VDC	2 Wall (Dual)	0.325 in	8.26 mm
Curtis Industries 325020-15-0	Steel	Chassis Panel Through Hole	Polypropylene (PP)	105 C	UL94 V-0	Wire Wrap	Flange	14 AWG	22 AWG	Screws	1	Barrier Block	15 A	15	15	300 VDC	2 Wall (Dual)	0.325 in	8.26 mm
