055959 Series

Manufacturer: Molex

Catalog

2.0 WTB DUAL DIP PLG HSG ASSYRA1

Part	Number of Rows	Termination	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Number of Positions Loaded	Connector Type	Number of Positions	Shrouding	Fastening Type	Insulation Color	Contact Finish - Post	Contact Type	Contact Length - Post	Contact Length - Post [x]	Applications	Insulation Height	Insulation Height	Contact Material	Style	Mounting Type	Number of Positions
Molex 0559591035

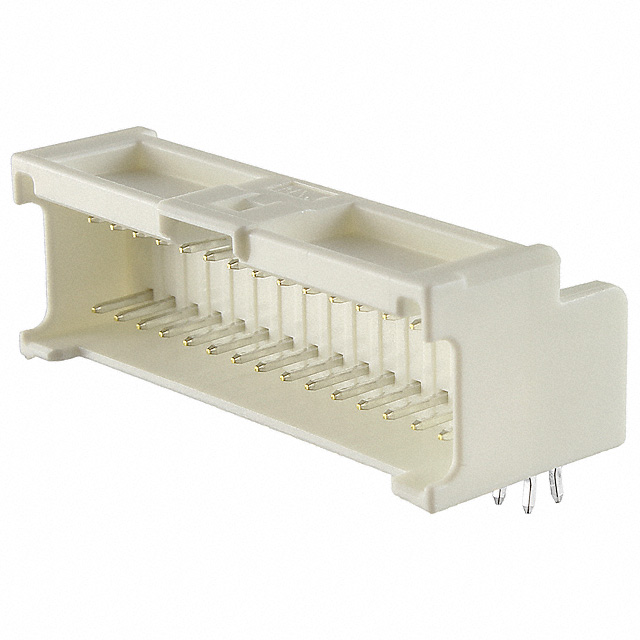

Molex 0559593030	2	Kinked Pin Solder	UL94 V-0	5 mm	0.197 in	Square	0.079 in	2 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	Header	30	Shrouded - 4 Wall	Latch Holder	Natural	Tin	Male Pin	3.2 mm	0.126 in	General Purpose Industrial Medical	11.7 mm	0.461 "	Brass	Board to Cable/Wire	Through Hole Right Angle
Molex 0559592431

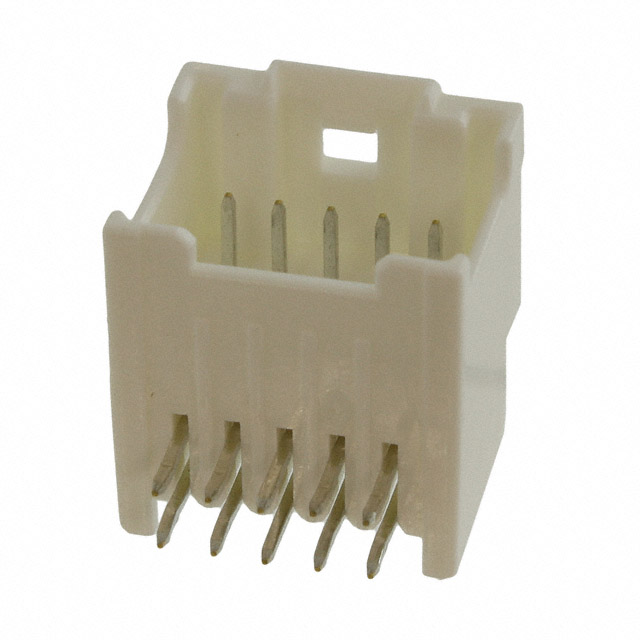

Molex 0559591030	2	Kinked Pin Solder	UL94 V-0	5 mm	0.197 in	Square	0.079 in	2 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	Header	10	Shrouded - 4 Wall	Latch Holder	Natural	Tin	Male Pin	3.2 mm	0.126 in	General Purpose Industrial Medical	11.7 mm	0.461 "	Brass	Board to Cable/Wire	Through Hole Right Angle

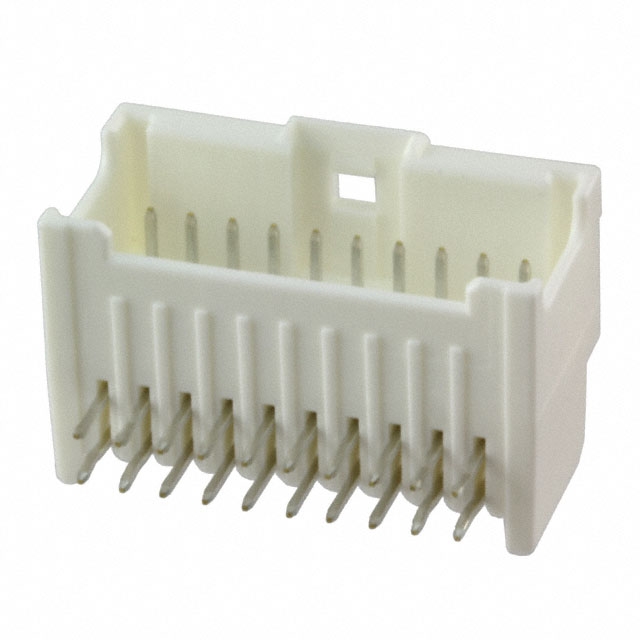

Molex 0559592030	2	Kinked Pin Solder	UL94 V-0	5 mm	0.197 in	Square	0.079 in	2 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	Header	20	Shrouded - 4 Wall	Latch Holder	Natural	Tin	Male Pin	3.2 mm	0.126 in	General Purpose Industrial Medical	11.7 mm	0.461 "	Brass	Board to Cable/Wire	Through Hole Right Angle

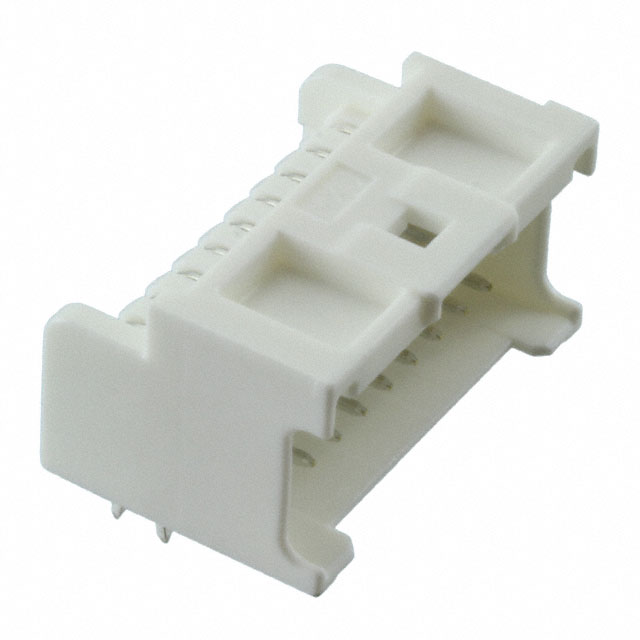

Molex 0559591830	2	Kinked Pin Solder	UL94 V-0	5 mm	0.197 in	Square	0.079 in	2 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	Header	18	Shrouded - 4 Wall	Latch Holder	Natural	Tin	Male Pin	3.2 mm	0.126 in	General Purpose Industrial Medical	11.7 mm	0.461 "	Brass	Board to Cable/Wire	Through Hole Right Angle

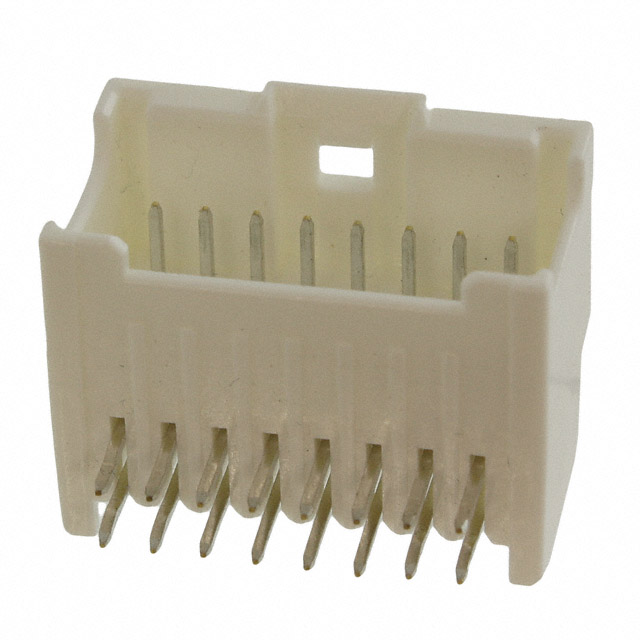

Molex 0559591630	2	Kinked Pin Solder	UL94 V-0	5 mm	0.197 in	Square	0.079 in	2 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	Header		Shrouded - 4 Wall	Latch Holder	Natural	Tin	Male Pin	3.2 mm	0.126 in	General Purpose Industrial Medical	11.7 mm	0.461 "	Brass	Board to Cable/Wire	Through Hole Right Angle	16

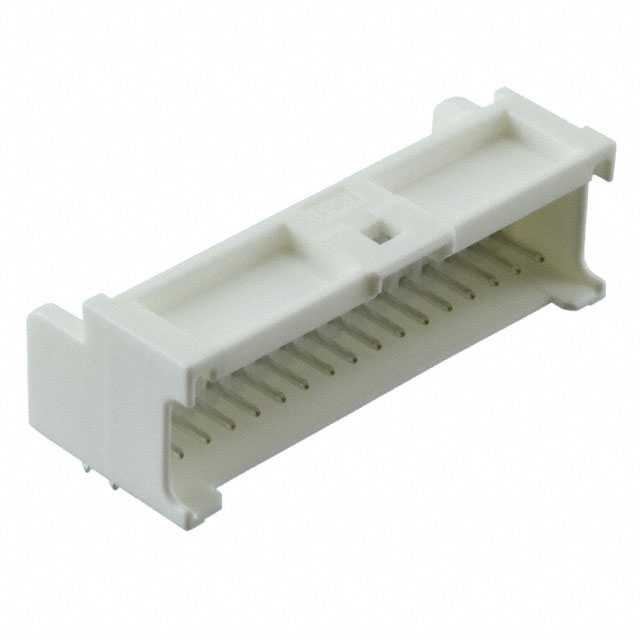

Molex 0559593230	2	Kinked Pin Solder	UL94 V-0	5 mm	0.197 in	Square	0.079 in	2 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	Header		Shrouded - 4 Wall	Latch Holder	Natural	Tin	Male Pin	3.2 mm	0.126 in	General Purpose Industrial Medical	11.7 mm	0.461 "	Brass	Board to Cable/Wire	Through Hole Right Angle
