EBAG Series
Manufacturer: Adam Tech
Beta
⌘K
EURO BLOCK 3P
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Screw Material - Plating | Clamp Material - Plating | Torque - Screw | Torque - Screw | Contact Material - Plating | Voltage | Color | Wire Termination | Pitch | Pitch | Current | Mating Orientation | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Features | Number of Levels | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

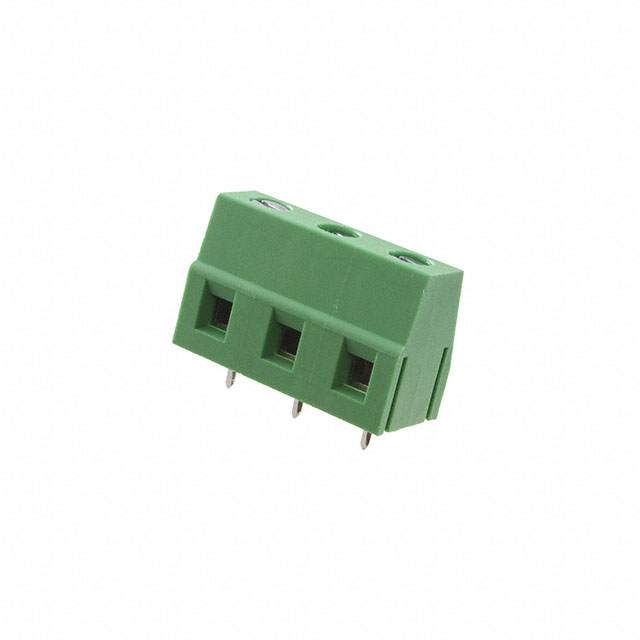

 Adam Tech | -40 C | 105 ░C | M2.5 | Steel - Zinc Plated | Brass - Nickel Plated | 3.5 Lb-In | 0.4 Nm | Brass - Tin Plated | 300 VDC | Green | Screw - Rising Cage Clamp | 0.295 in | 7.5 mm | 10 A | Horizontal with Board | Through Hole | 22 AWG | 12 AWG | Interlocking (Side) | 1 | 3 |

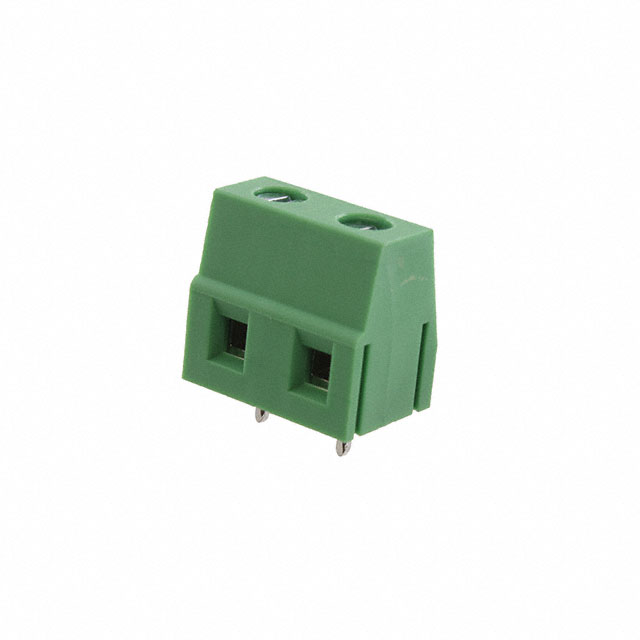

 Adam Tech | -40 C | 105 ░C | M2.5 | Steel - Zinc Plated | Brass - Nickel Plated | 3.5 Lb-In | 0.4 Nm | Brass - Tin Plated | 300 VDC | Green | Screw - Rising Cage Clamp | 0.295 in | 7.5 mm | 10 A | Horizontal with Board | Through Hole | 22 AWG | 12 AWG | Interlocking (Side) | 1 | 2 |

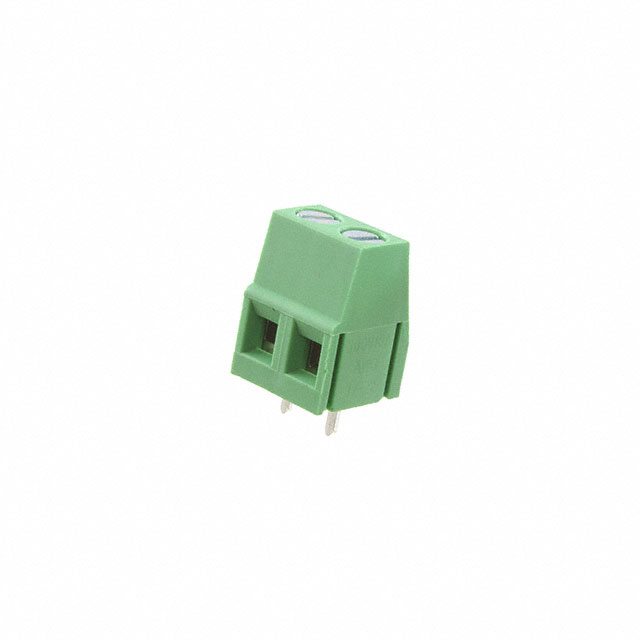

 Adam Tech | -40 C | 105 ░C | M2.5 | Steel - Zinc Plated | Brass - Nickel Plated | 3.5 Lb-In | 0.4 Nm | Brass - Tin Plated | 300 VDC | Green | Screw - Rising Cage Clamp | 0.197 in | 5 mm | 16 A | Horizontal with Board | Through Hole | 22 AWG | 12 AWG | Interlocking (Side) | 1 | 2 |
