contour-ty-r Series

Catalog

CABLE TIE, CONTOUR TY® LOCKING, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 264 MM, 3.6 MM, 76 MM, 40 LB

Part	Mounting Type	Length - Approximate	Color	Length - Actual	Length - Actual	Length - Actual [x]	Wire/Cable Tie Type	Width	Width	Shelf Life	Material	Shelf Life Start	Tensile Strength	Tensile Strength	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Features	Width [x]	Width [x]

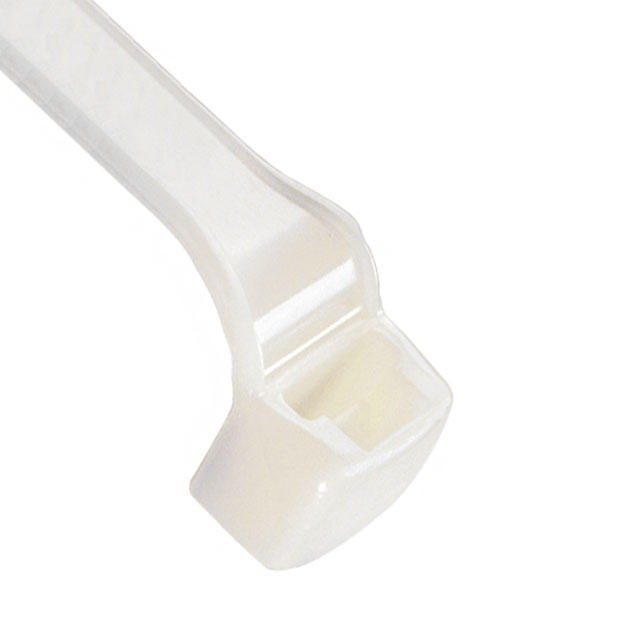

Panduit Corp CBR3I-M	Free Hanging (In-Line)	10.5 "	Natural	10.4 "	264.16 mm	0.867 ft	Cable Tie Parallel	0.141 in	3.58 mm	48 Months	Polyamide (PA66) Nylon 6/6	Date of Manufacture	18.14 kg	40 lbs	76.2 mm	3 in

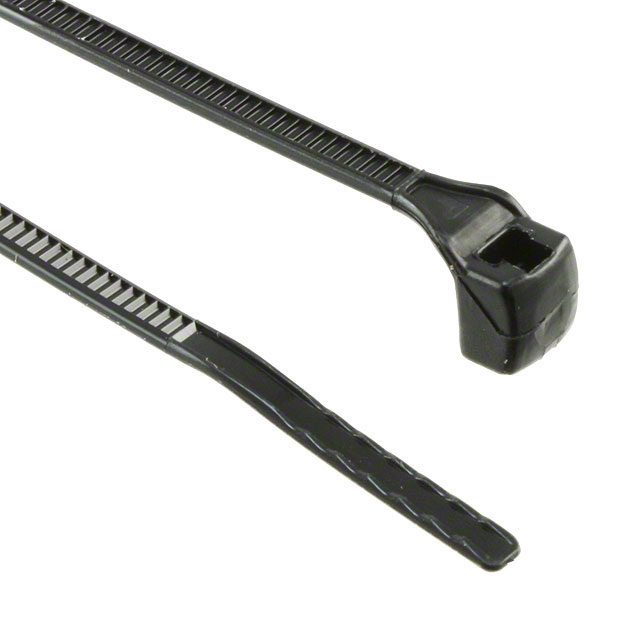

Panduit Corp CBR3I-M0	Free Hanging (In-Line)	10.5 "	Black	10.4 "	264.16 mm	0.867 ft	Cable Tie Parallel	0.141 in	3.58 mm	48 Months	Polyamide (PA66) Nylon 6/6	Date of Manufacture	18.14 kg	40 lbs	76.2 mm	3 in	Weather Resistant
Panduit Corp CBR3S-M30	Free Hanging (In-Line)	10.75 in	Black	10.8 in	274.32 mm	0.9 ft	Cable Tie Parallel			48 Months	Polyamide (PA66) Nylon 6/6	Date of Manufacture	22.68 kg	50 lbs	76.2 mm	3 in	Heat Stabilized	0.19 in	4.83 mm
