MBR1560 Series

Catalog

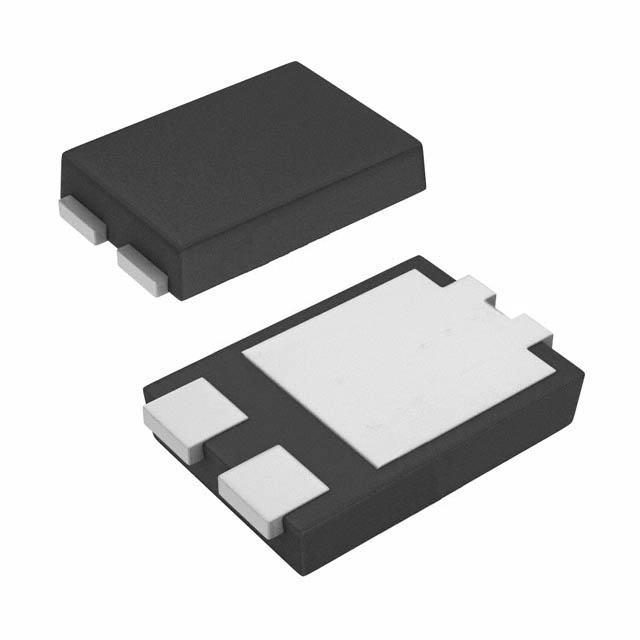

DIODE SCHOTTKY 60V 15A TO277B

Part	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Technology	Supplier Device Package	Package / Case	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Speed	Diode Configuration
SMC Diode Solutions MBR1560S	590 mV	15 A	Schottky	TO-277B	TO-277 3-PowerDFN	-55 °C	150 °C	850 pF	Surface Mount	60 V	200 µA	200 mA 500 ns
SMC Diode Solutions MBR1560CT	800 mV		Schottky	TO-220AB	TO-220-3	-55 °C	150 °C		Through Hole	60 V	1 mA	200 mA 500 ns	1 Pair Common Cathode
