0325-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .032-.046 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Contact Finish	Length - Overall [x]	Length - Overall [x]	Contact Material	Termination	Socket Depth [z]	Socket Depth [z]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0325-0-15-01-34-01-10-0	-55 C	125 °C	0.09 in	2.29 mm	200 Áin	5.08 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	Turret	Tin-Lead	0.63 in	16 mm	Beryllium Copper	Press-Fit	12.57 mm	0.495 in	1.63 mm	0.064 in
Mill-Max Manufacturing Corp. 0325-0-15-80-34-80-10-0	-55 C	125 °C	0.09 in	2.29 mm	200 Áin	5.08 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	Turret	Tin	0.63 in	16 mm	Beryllium Copper	Press-Fit	12.57 mm	0.495 in	1.63 mm	0.064 in
Mill-Max Manufacturing Corp. 0325-0-15-15-34-14-10-0	-55 C	125 °C	0.09 in	2.29 mm	10 Áin	0.25 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	Turret	Gold	0.63 in	16 mm	Beryllium Copper	Press-Fit	12.57 mm	0.495 in	1.63 mm	0.064 in

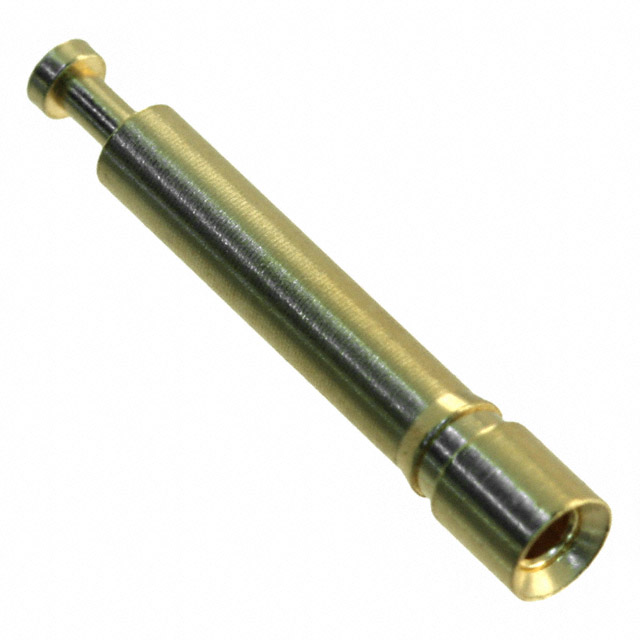

Mill-Max Manufacturing Corp. 0325-0-15-15-34-27-10-0	-55 C	125 °C	0.09 in	2.29 mm	30 Áin	0.76 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	Turret	Gold	0.63 in	16 mm	Beryllium Copper	Press-Fit	12.57 mm	0.495 in	1.63 mm	0.064 in
Mill-Max Manufacturing Corp. 0325-0-15-01-34-14-10-0	-55 C	125 °C	0.09 in	2.29 mm	10 Áin	0.25 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	Turret	Gold	0.63 in	16 mm	Beryllium Copper	Press-Fit	12.57 mm	0.495 in	1.63 mm	0.064 in
Mill-Max Manufacturing Corp. 0325-0-15-80-34-27-10-0	-55 C	125 °C	0.09 in	2.29 mm	30 Áin	0.76 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	Turret	Gold	0.63 in	16 mm	Beryllium Copper	Press-Fit	12.57 mm	0.495 in	1.63 mm	0.064 in
Mill-Max Manufacturing Corp. 0325-0-15-01-34-27-10-0	-55 C	125 °C	0.09 in	2.29 mm	30 Áin	0.76 Ám	1.17 mm	0.81 mm	0.046 "	0.032 "	Turret	Gold	0.63 in	16 mm	Beryllium Copper	Press-Fit	12.57 mm	0.495 in	1.63 mm	0.064 in
