680M5W1 Series
Manufacturer: NorComp Inc.
Beta
⌘K

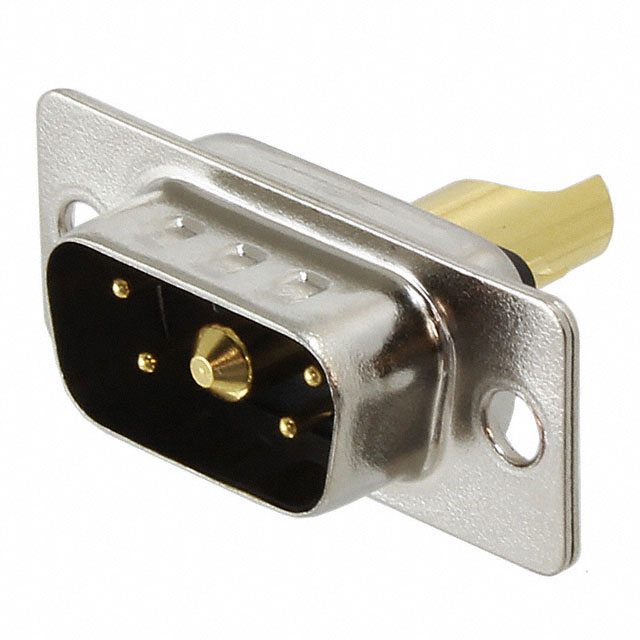

COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 680M SERIES, DE-5W1, 4 CONTACTS, PLUG, 1, SOLDER CUP
| Part | Color | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish | Material Flammability Rating | Number of Rows [custom] | Number of Positions | Mounting Type | Contact Finish Thickness | Current Rating (Amps) | Connector Type | Shell Material, Finish | Contact Type | Features | Connector Style | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | Copper Alloy | Polybutylene Terephthalate (PBT) | -55 C | 125 °C | 1 | 5W1 DE E | Gold | UL94 V-0 | 2 | 5 | Panel Mount | Flash | 5 A 40 A | Plug Male Pins | Nickel Plated Steel | Signal and Power | Grounding Indents | Combo D-Sub | Housing/Shell (Unthreaded) |
