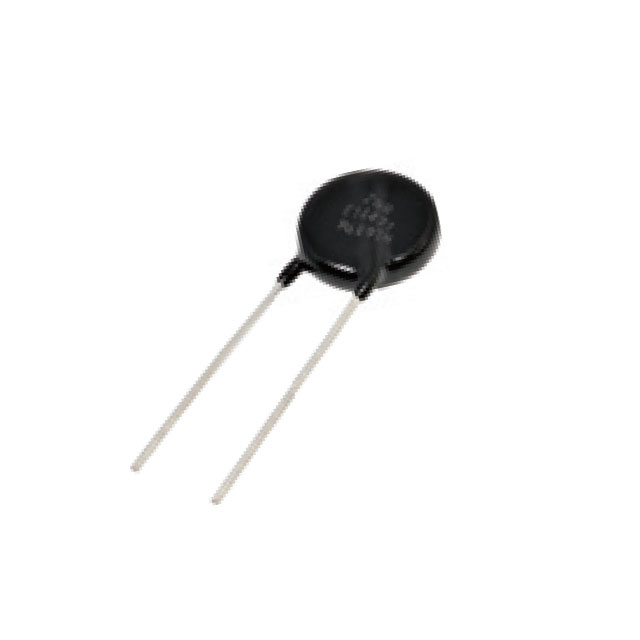

ERZ-E14 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

VARISTOR DISC 14MM 430V

Part	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Maximum DC Volts [Max]	Energy	Number of Circuits	Mounting Type	Capacitance @ Frequency	Current - Surge	Varistor Voltage (Min) [Min]	Varistor Voltage (Max) [Max]	Maximum AC Volts [Max]	Varistor Voltage (Typ)	Maximum AC Volts	Maximum DC Volts
Panasonic Industrial Automation Sales ERZ-E14A431S1	14 mm	Disc	-40 °C	125 °C	350 V	303 J	1	Through Hole	800 pF	7.5 kA	387 V	473 V	275 V	430 V

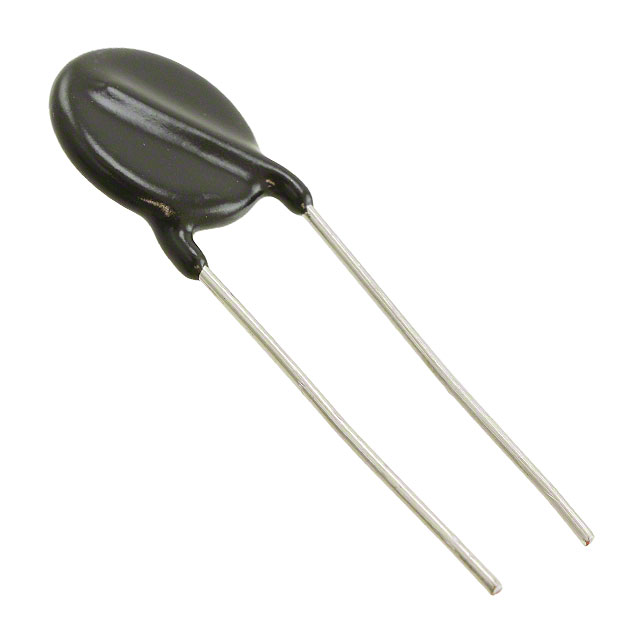

Panasonic Industrial Automation Sales ERZ-E14A221S1	14 mm	Disc	-40 °C	125 °C	180 V	155 J	1	Through Hole	1200 pF	7.5 kA	198 V	242 V	140 V	220 V
Panasonic Industrial Automation Sales ERZ-E14A391	16.5 mm	Disc	-40 °C	85 °C	320 V	275 J	1	Through Hole	800 pF	10 kA	351 V	429 V	250 V	390 V
Panasonic Industrial Automation Sales ERZ-E14A391SC	14 mm	Disc	-40 °C	125 °C	320 V	275 J	1	Through Hole	800 pF	7.5 kA	351 V	429 V	250 V	390 V
Panasonic Industrial Automation Sales ERZ-E14A221	16.5 mm	Disc	-40 °C	85 °C	180 V	155 J	1	Through Hole	1200 pF	10 kA	198 V	242 V	140 V	220 V
Panasonic Industrial Automation Sales ERZ-E14A112	16.5 mm	Disc	-40 °C	85 °C	895 V	620 J	1	Through Hole	350 pF	7.5 kA	990 V	1.21 kV	680 V	1.1 kV

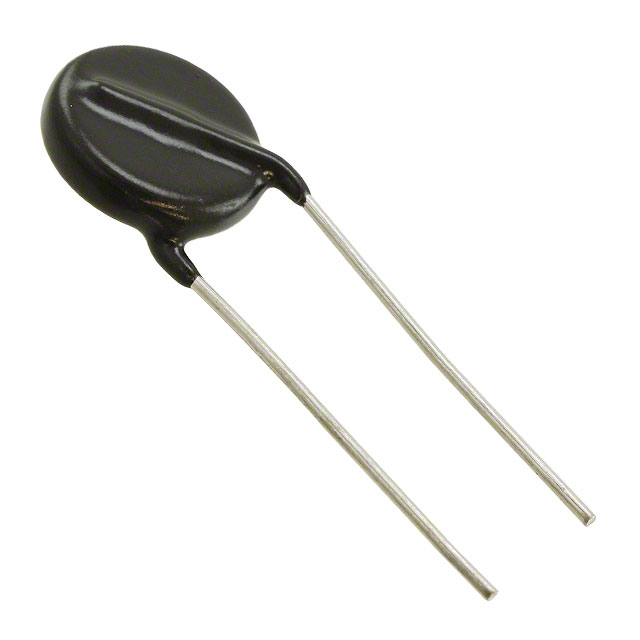

Panasonic Industrial Automation Sales ERZ-E14A471	16.5 mm	Disc	-40 °C	85 °C	385 V	350 J	1	Through Hole	750 pF	10 kA	423 V	517 V		470 V	300 V
Panasonic Industrial Automation Sales ERZ-E14A821SC	14 mm	Disc	-40 °C	125 °C		460 J	1	Through Hole	500 pF	7.5 kA	738 V	902 V	510 V	820 V		670 V
Panasonic Industrial Automation Sales ERZ-E14A391S1	14 mm	Disc	-40 °C	125 °C	320 V	275 J	1	Through Hole	800 pF	7.5 kA	351 V	429 V	250 V	390 V

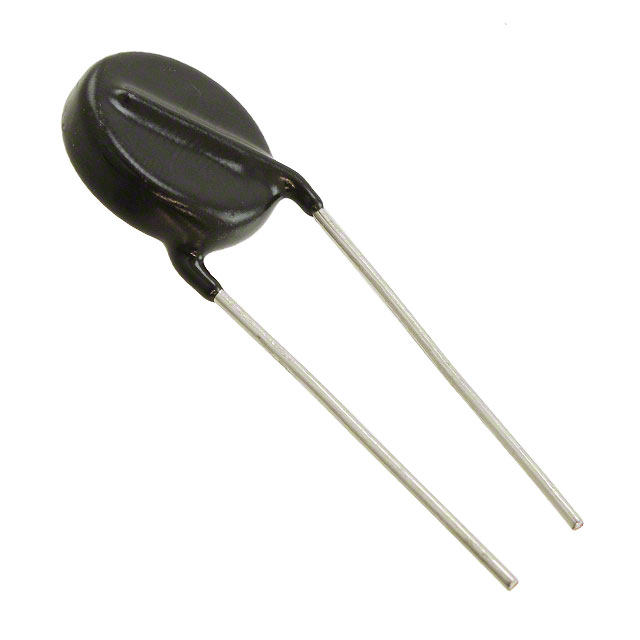

Panasonic Industrial Automation Sales ERZ-E14A621		Disc 17.5mm	-40 °C	85 °C	505 V	382 J	1	Through Hole	650 pF	7.5 kA	558 V			620 V	385 V
