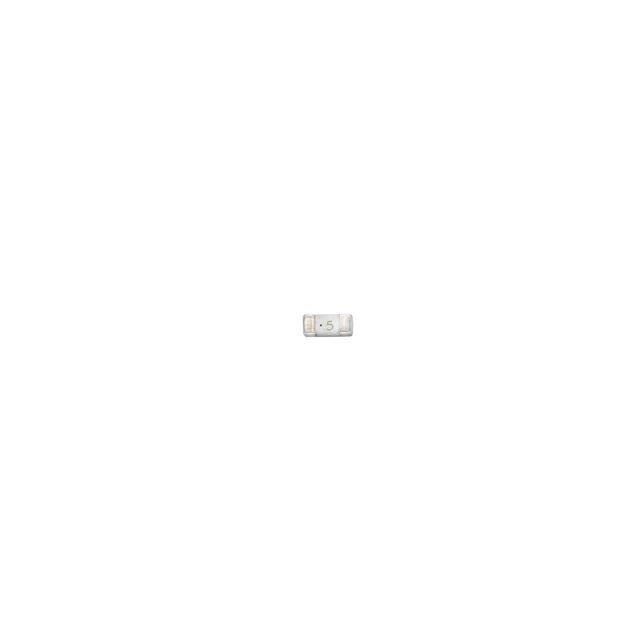

2410FA Series

Manufacturer: Eaton - Electronics Division

Catalog

FUSE, SURFACE MOUNT, 15 A, FAST ACTING, 125 VAC, 125 VDC, 2410 [6125 METRIC], 2410FA SERIES

Part	DC Cold Resistance	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Response Time	Fuse Type	Voltage Rating - AC	Voltage Rating - DC	Breaking Capacity @ Rated Voltage
Eaton - Electronics Division TR1-2410FA15-R	0.00315 Ohms	Surface Mount	2-SMD Square End Block	-55 C	125 °C	15 A	0.122 in	6.5 mm	0.256 in	3.1 mm	0.122 in	3.1 mm	Fast Blow	Board Mount (Cartridge Style Excluded)	125 V	125 VDC	50 A
Eaton - Electronics Division TR1-2410FA2-5-R	0.0182 Ohms	Surface Mount	2-SMD Square End Block	-55 C	125 °C	2.5 A	0.122 in	6.5 mm	0.256 in	3.1 mm	0.122 in	3.1 mm	Fast Blow	Board Mount (Cartridge Style Excluded)	125 V	125 VDC	50 A
Eaton - Electronics Division TR1-2410FA8-R	0.0063 Ohms	Surface Mount	2-SMD Square End Block	-55 C	125 °C	8 A	0.122 in	6.5 mm	0.256 in	3.1 mm	0.122 in	3.1 mm	Fast Blow	Board Mount (Cartridge Style Excluded)	125 V	125 VDC	50 A
Eaton - Electronics Division TR1-2410FA800-R	0.137 Ohms	Surface Mount	2-SMD Square End Block	-55 C	125 °C	800 mA	0.122 in	6.5 mm	0.256 in	3.1 mm	0.122 in	3.1 mm	Fast Blow	Board Mount (Cartridge Style Excluded)	125 V	125 VDC	50 A

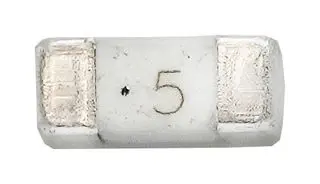

Eaton - Electronics Division TR1-2410FA1-5-R	0.062 Ohms	Surface Mount	2-SMD Square End Block	-55 C	125 °C	1.5 A	0.122 in	6.5 mm	0.256 in	3.1 mm	0.122 in	3.1 mm	Fast Blow	Board Mount (Cartridge Style Excluded)	125 V	125 VDC	50 A
Eaton - Electronics Division TR1-2410FA500-R	0.281 Ohms	Surface Mount	2-SMD Square End Block	-55 C	125 °C	0.5 A	0.122 in	6.5 mm	0.256 in	3.1 mm	0.122 in	3.1 mm	Fast Blow	Board Mount (Cartridge Style Excluded)	125 V	125 VDC	50 A

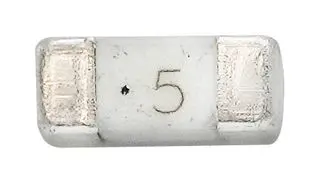

Eaton - Electronics Division TR1-2410FA12-R	0.00395 Ohms	Surface Mount	2-SMD Square End Block	-55 C	125 °C	12 Amps	0.122 in	6.5 mm	0.256 in	3.1 mm	0.122 in	3.1 mm	Fast Blow	Board Mount (Cartridge Style Excluded)	125 V	125 VDC	50 A
Eaton - Electronics Division TR1-2410FA10-R	0.0051 Ohms	Surface Mount	2-SMD Square End Block	-55 C	125 °C	10 A	0.122 in	6.5 mm	0.256 in	3.1 mm	0.122 in	3.1 mm	Fast Blow	Board Mount (Cartridge Style Excluded)	125 V	125 VDC	50 A
Eaton - Electronics Division TR1-2410FA4-R	0.0129 Ohms	Surface Mount	2-SMD Square End Block	-55 C	125 °C	4 A	0.122 in	6.5 mm	0.256 in	3.1 mm	0.122 in	3.1 mm	Fast Blow	Board Mount (Cartridge Style Excluded)	125 V	125 VDC	50 A
Eaton - Electronics Division TR1-2410FA1-R	0.105 Ohms	Surface Mount	2-SMD Square End Block	-55 C	125 °C	1 A	0.122 in	6.5 mm	0.256 in	3.1 mm	0.122 in	3.1 mm	Fast Blow	Board Mount (Cartridge Style Excluded)	125 V	125 VDC	50 A
