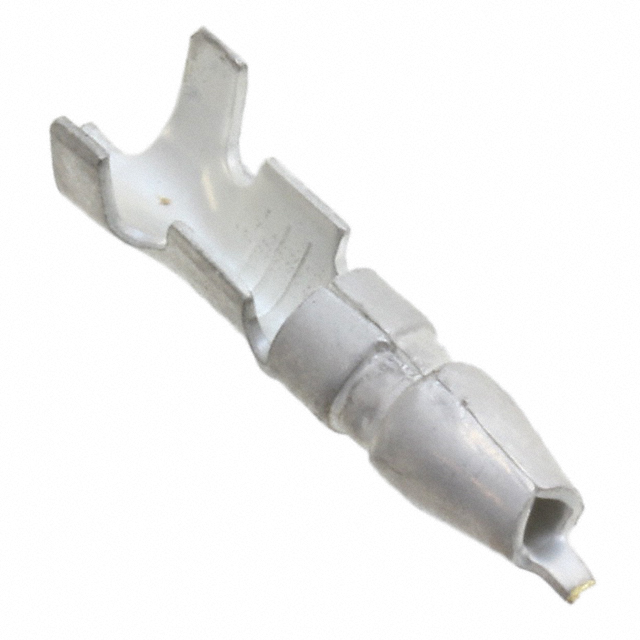

170002 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

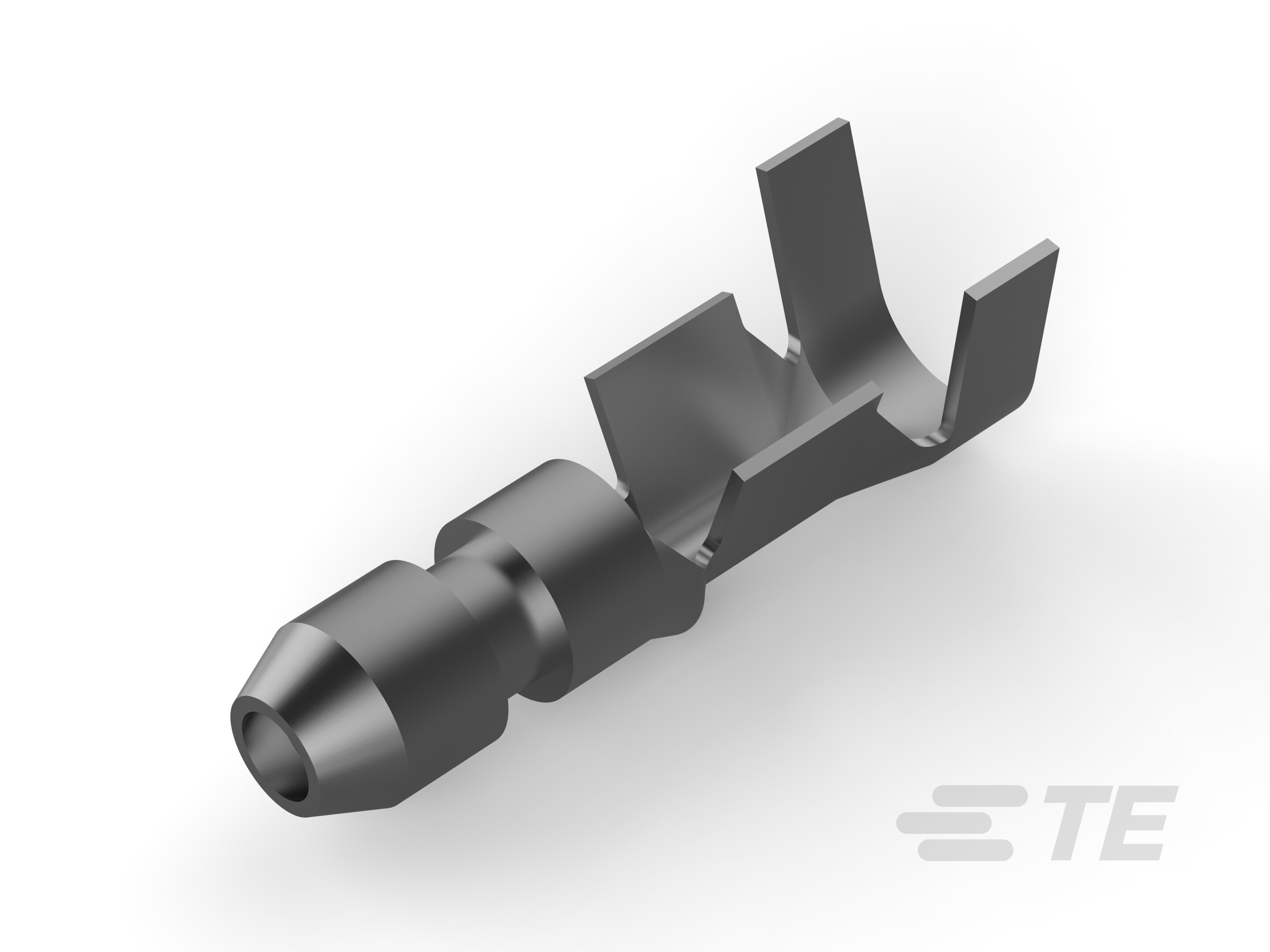

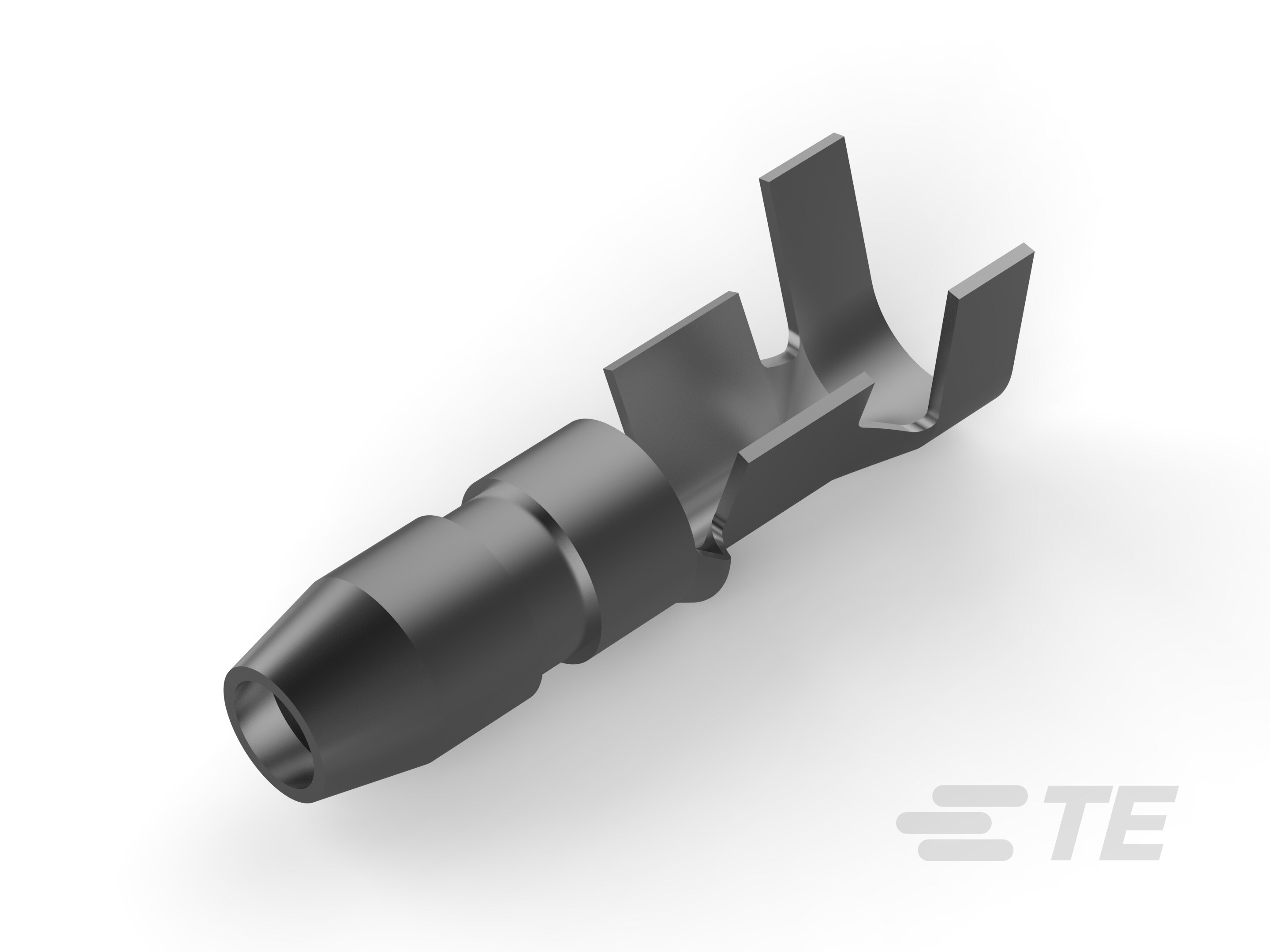

SHUR PLUG 20-14 AWG 0.5 X 11.44 TPBR
| Part | Contact Finish | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Termination | Diameter - Barrel [diameter] | Diameter - Barrel [diameter] | Insulation | Contact Material | Length - Barrel | Length - Barrel | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Length - Overall [x] | Length - Overall [x] | Diameter - Barrel [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | 3.81 mm | 0.15 in | 0.098 " | 2.5 mm | Crimp | 0.156 in | 3.96 mm | Non-Insulated | Brass | 0.343 in | 8.7 mm | 20 AWG | 14 AWG | Male Pin (Plug) | |||
 TE Connectivity AMP Connectors | Tin | 3.81 mm | 0.15 in | 0.098 " | 2.5 mm | Crimp | 0.157 " | Non-Insulated | Brass | 0.287 in | 7.3 mm | 20 AWG | 14 AWG | Male Pin (Plug) | 0.622 " | 15.8 mm | 4 mm |
