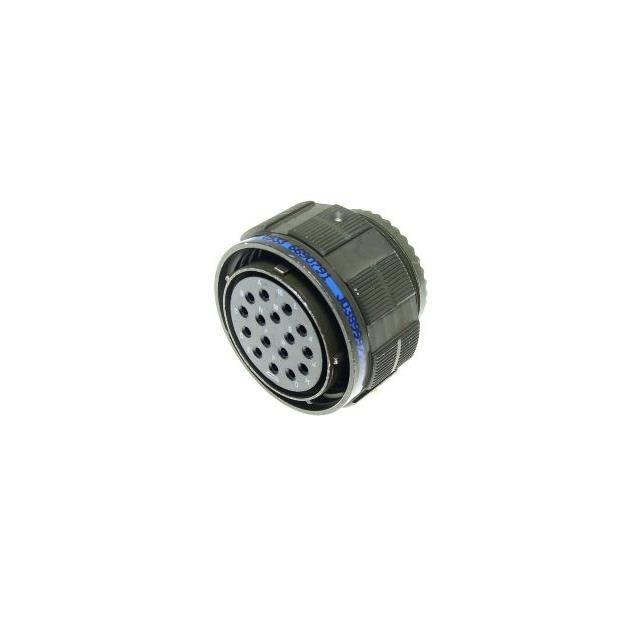

D38999/24KC Series
Manufacturer: Conesys
Beta
⌘K
CONN RCPT FMALE 22POS CRIMP
| Part | Applications | Contact Material | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Mounting Feature | Qualification | Shielding | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Color | Fastening Type | Orientation | Mounting Type | Current Rating (Amps) | Shell Material | Grade | Primary Material | Number of Positions | Voltage Rating | Connector Type | Shell Size, MIL | Material Flammability Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Conesys | Aerospace Aviation Marine Military | Copper Alloy | Passivated Stainless Steel | 50 µin | 1.27 µm | IP67 - Dust Tight Waterproof Waterproof | Thermoplastic | -65 ░C | 125 °C 200 °C | Gold | Bulkhead - Front Side Nut | MIL-DTL-38999 Series III | Shielded | 35 | 13 | Silver | Threaded | N (Normal) | Panel Mount | 5 A | Stainless Steel | Military | Metal | 22 | 500 VAC | Receptacle Female Sockets | C | UL94 V-0 | Crimp |
