9823 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

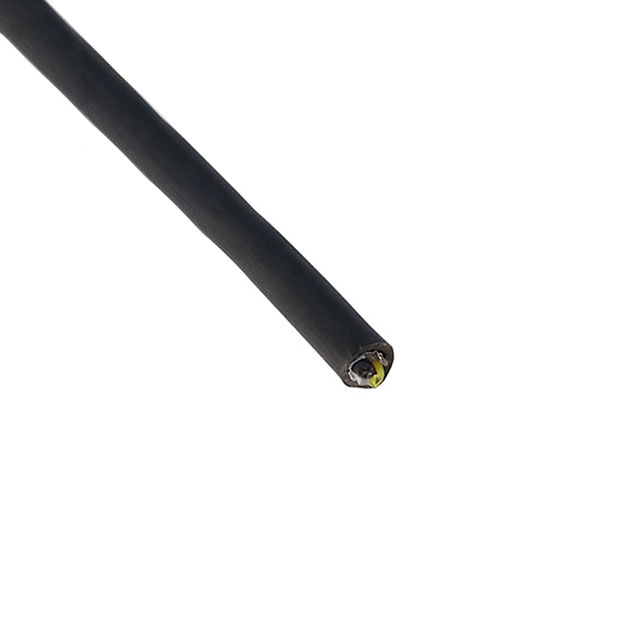

CABLE TWINAXIAL 22AWG
| Part | Conductor Material | VoP, Velocity of Propagation | Shield Coverage | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Impedance | Jacket Color | Shield Type | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 78 | 100 % | Aluminum | 0.12 in | 3.05 mm | -20 ░C | 60 °C | 152.4 m | 500 ft | 19 | 34 AWG | 150 Ohms | Black | Foil | Poly-Vinyl Chloride (PVC) | Twinaxial | 0.329 in | 8.36 mm | 22 AWG | ||
ALPHA WIRE | Copper Tinned | 78 | 100 % | Aluminum | 0.12 in | 3.05 mm | -20 ░C | 60 °C | 304.8 m | 1000 ft | 19 | 34 AWG | 150 Ohms | Black | Foil | Poly-Vinyl Chloride (PVC) | Twinaxial | 0.329 in | 8.36 mm | 22 AWG | ||
ALPHA WIRE | Copper Tinned | 78 | 100 % | Aluminum | 0.12 in | 3.05 mm | -20 ░C | 60 °C | 304.8 m | 1000 ft | 19 | 34 AWG | 150 Ohms | Black | Foil | Poly-Vinyl Chloride (PVC) | Twinaxial | 0.329 in | 8.36 mm | 22 AWG | ||
 ALPHA WIRE | Copper Tinned | 78 | 100 % | Aluminum | 0.12 in | 3.05 mm | -20 ░C | 60 °C | 19 | 34 AWG | 150 Ohms | Black | Foil | Poly-Vinyl Chloride (PVC) | Twinaxial | 0.329 in | 8.36 mm | 22 AWG | 100 ' | 30.48 m |
