851-44 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

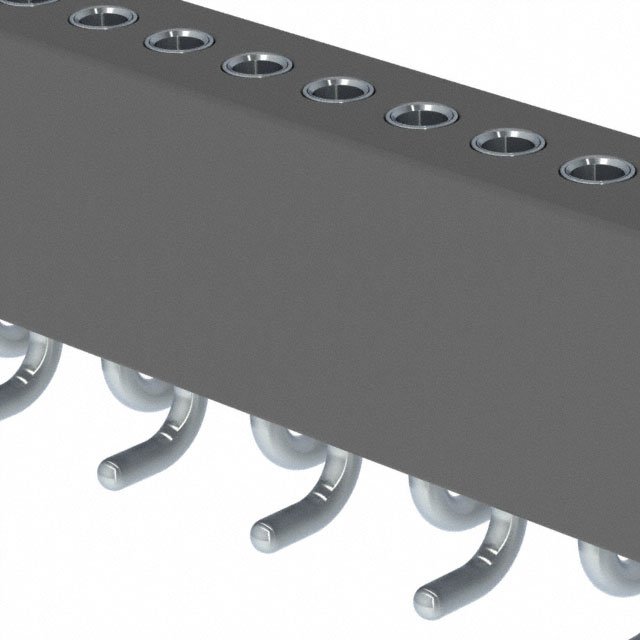

CONN RCPT 30POS 0.05 TIN SMD

Part	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Mounting Type	Fastening Type	Insulation Color	Number of Rows	Insulation Height	Insulation Height [z]	Connector Type	Contact Type	Number of Positions	Number of Positions Loaded	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Mill-Max Manufacturing Corp. 851-44-030-30-002000	Circular	200 µin	5.08 µm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Push-Pull	Black	1	3.78 mm	0.149 in	Receptacle	Female Socket	30	All	Tin	Solder	1.27 mm	0.05 in	100 çin	2.54 çm
Mill-Max Manufacturing Corp. 851-44-014-30-002000	Circular	200 µin	5.08 µm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Push-Pull	Black	1	3.78 mm	0.149 in	Receptacle	Female Socket	14	All	Tin	Solder	1.27 mm	0.05 in	100 çin	2.54 çm
Mill-Max Manufacturing Corp. 851-44-012-30-002000	Circular	200 µin	5.08 µm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Push-Pull	Black	1	3.78 mm	0.149 in	Receptacle	Female Socket	12	All	Tin	Solder	1.27 mm	0.05 in	100 çin	2.54 çm
Mill-Max Manufacturing Corp. 851-44-042-30-002000	Circular	200 µin	5.08 µm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Push-Pull	Black	1	3.78 mm	0.149 in	Receptacle	Female Socket	42	All	Tin	Solder	1.27 mm	0.05 in	100 çin	2.54 çm
Mill-Max Manufacturing Corp. 851-44-018-30-002000	Circular	200 µin	5.08 µm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Push-Pull	Black	1	3.78 mm	0.149 in	Receptacle	Female Socket	18	All	Tin	Solder	1.27 mm	0.05 in	100 çin	2.54 çm
Mill-Max Manufacturing Corp. 851-44-026-30-002000	Circular	200 µin	5.08 µm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Push-Pull	Black	1	3.78 mm	0.149 in	Receptacle	Female Socket	26	All	Tin	Solder	1.27 mm	0.05 in	100 çin	2.54 çm
Mill-Max Manufacturing Corp. 851-44-024-30-002000	Circular	200 µin	5.08 µm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Push-Pull	Black	1	3.78 mm	0.149 in	Receptacle	Female Socket	24	All	Tin	Solder	1.27 mm	0.05 in	100 çin	2.54 çm
Mill-Max Manufacturing Corp. 851-44-038-30-002000	Circular	200 µin	5.08 µm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Push-Pull	Black	1	3.78 mm	0.149 in	Receptacle	Female Socket	38	All	Tin	Solder	1.27 mm	0.05 in	100 çin	2.54 çm
Mill-Max Manufacturing Corp. 851-44-006-30-002000	Circular	200 µin	5.08 µm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Push-Pull	Black	1	3.78 mm	0.149 in	Receptacle	Female Socket	6	All	Tin	Solder	1.27 mm	0.05 in	100 çin	2.54 çm
Mill-Max Manufacturing Corp. 851-44-050-30-002000	Circular	200 µin	5.08 µm	Brass Alloy	Nylon 4/6 Polyamide (PA46)	Surface Mount	Push-Pull	Black	1	3.78 mm	0.149 in	Receptacle	Female Socket	50	All	Tin	Solder	1.27 mm	0.05 in	100 çin	2.54 çm
