A12AH Series

Catalog

PROCESS SEALED SUBMINIATURE TOGGLE

Part	Electrical Life	Actuator Material	Actuator Length [x]	Voltage Rating - DC	Actuator Type	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Current Rating (Amps)	Features	Termination Style	Mounting Type	Circuit	Voltage Rating - AC	Illumination

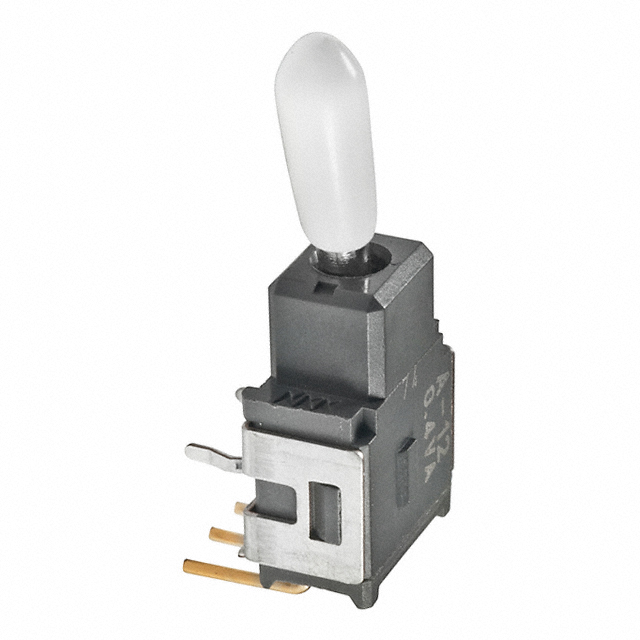

NKK Switches A12AH-GB	50000 Cycles	Glass Filled Nylon Polyamide (PA)	10 mm	28 V	Standard Round with Cap	Unthreaded Square	85 °C	-30 ░C	On-On	0.4 VA	White Cap	PC Pin	Right Angle Through Hole	SPDT	28 V	Non-Illuminated
NKK Switches A12AH-GA	50000 Cycles	Glass Filled Nylon Polyamide (PA)	10 mm	28 V	Standard Round with Cap	Unthreaded Square	85 °C	-30 ░C	On-On	0.4 VA	Black Cap	PC Pin	Right Angle Through Hole	SPDT	28 V	Non-Illuminated
NKK Switches A12AH-GC	50000 Cycles	Glass Filled Nylon Polyamide (PA)	10 mm	28 V	Standard Round with Cap	Unthreaded Square	85 °C	-30 ░C	On-On	0.4 VA	Red Cap	PC Pin	Right Angle Through Hole	SPDT	28 V	Non-Illuminated
