Isolated DC/DC Converters - Through Hole
Isolated DC/DC Converters - Through Hole
| Part | Applications | Number of Outputs | Voltage - Input (Min) [Min] | Features | Package / Case | Type | Power (Watts) | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Standard Number | Size / Dimension | Control Features | Voltage - Output 2 | Voltage - Output 1 | Current - Output (Max) | Voltage - Isolation | Voltage - Input (Max) [Max] | Mounting Type | Efficiency | Input Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) [Max] | DC Voltage - Input (Min) [Min] | DC Voltage - Input (Max) [Max] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

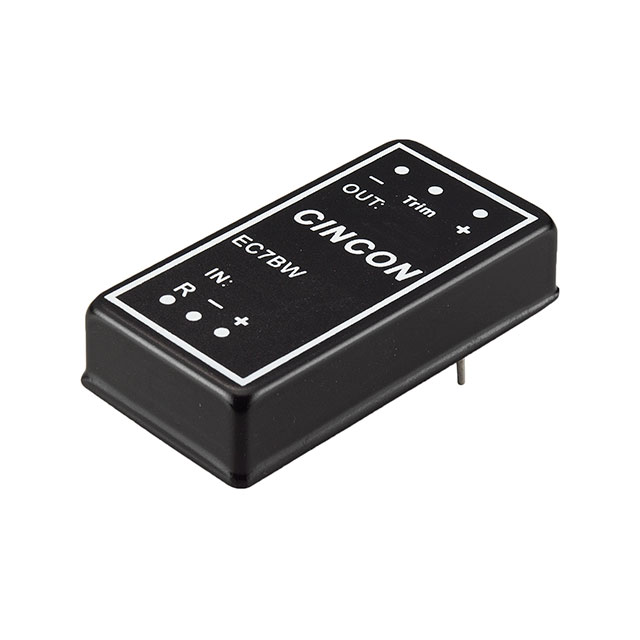

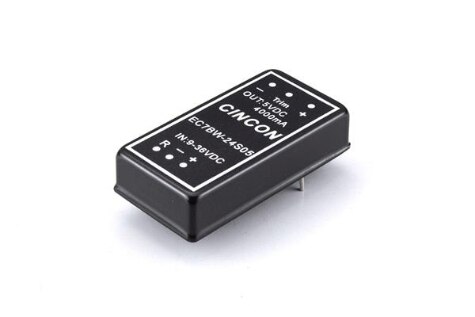

 Cincon Electronics Co. LTD | ITE (Commercial) Railway | 2 | 9 V | OCP OVP Remote On/Off SCP UVLO | 6-DIP Module | Isolated Module | 20 W | CE cURus | -40 °C | 85 °C | 50155 60950-1 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | Active High Enable | -15 V | 15 V | 666 mA | 1.5 kV | 36 V | Through Hole | 88 % | |||||||||||
 Cincon Electronics Co. LTD | ITE (Commercial) Railway | 2 | 9 V | OCP OVP Remote On/Off SCP UVLO | 6-DIP Module | Isolated Module | 20 W | CE cURus | -40 °C | 85 °C | 50155 60950-1 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | Active High Enable | -15 V | 15 V | 666 mA | 1.5 kV | 36 V | Through Hole | 88 % | |||||||||||
 Cincon Electronics Co. LTD | ITE (Commercial) Railway | 1 | Remote On/Off | 20 W | CE | -40 °C | 100 °C | 50155 62368-1 | 12 V | 3000 V | 87 % | DC | 113 mm | 36.4 mm | 59.2 mm | 1.43 in | 2.33 " | 4.45 " | 1.67 A | 10 V | 160 V | ||||||||||

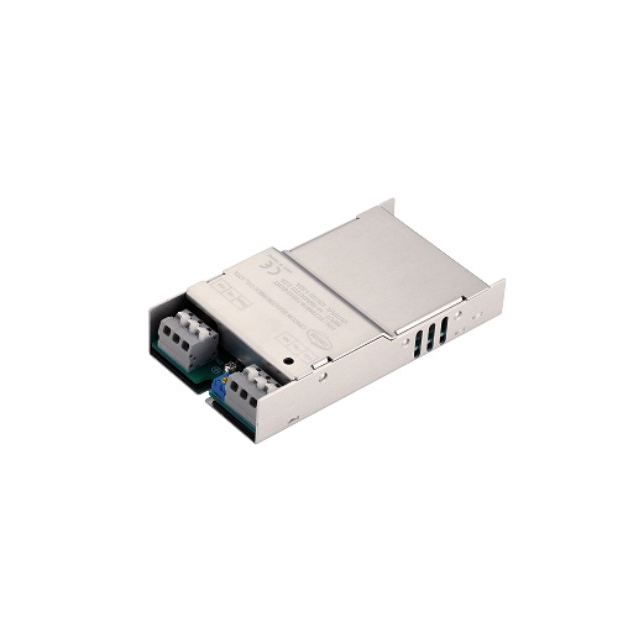

 Cincon Electronics Co. LTD | ITE (Commercial) Railway | 1 | 10 VDC | Enclosed | 20 W | CE | -40 °C | 100 °C | 50155 62368-1 | 5 V | 3000 V | 160 V | Chassis Mount | 84 % | 21.6 mm | 59.2 mm | 113 mm | 2.33 " | 4.45 in | 0.85 " | 4 A | ||||||||||
 Cincon Electronics Co. LTD | ITE (Commercial) Railway | 2 | 9 V | OCP OVP Remote On/Off SCP UVLO | 6-DIP Module | Isolated Module | 20 W | CE cURus | -40 °C | 85 °C | 50155 60950-1 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | Active Low Enable | -15 V | 15 V | 666 mA | 1.5 kV | 36 V | Through Hole | 88 % | |||||||||||
 Cincon Electronics Co. LTD | ITE (Commercial) Railway | 2 | 43 V | OCP OVP Remote On/Off SCP UVLO | 6-DIP Module | Isolated Module | 20 W | CE cURus | -40 °C | 85 °C | 50155 60950-1 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | Active Low Enable | -15 V | 15 V | 667 mA | 3000 V | 160 V | Through Hole | 88.5 % | 667 mA | ||||||||||
Cincon Electronics Co. LTD | ITE (Commercial) Railway | 2 | 43 V | OCP OVP Remote On/Off SCP UVLO | 6-DIP Module | Isolated Module | 20 W | CE cURus | -40 °C | 85 °C | 50155 60950-1 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | Active Low Enable | -12 V | 12 V | 833 mA | 3000 V | 160 V | Through Hole | 89 % | 833 mA | ||||||||||
Cincon Electronics Co. LTD | ITE (Commercial) Railway | 2 | 18 V | OCP OVP Remote On/Off SCP UVLO | 6-DIP Module | Isolated Module | 20 W | CE cURus | -40 °C | 85 °C | 50155 60950-1 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | Active Low Enable | -15 V | 15 V | 666 mA | 1.5 kV | 75 V | Through Hole | 88 % | |||||||||||
Cincon Electronics Co. LTD | ITE (Commercial) Railway | 1 | 9 V | OCP OVP Remote On/Off SCP UVLO | 6-DIP Module | Isolated Module | 20 W | CE cURus | -40 °C | 85 °C | 50155 60950-1 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | Active Low Enable | 15 V | 1.5 kV | 36 V | Through Hole | 90 % | 1.33 A | ||||||||||||

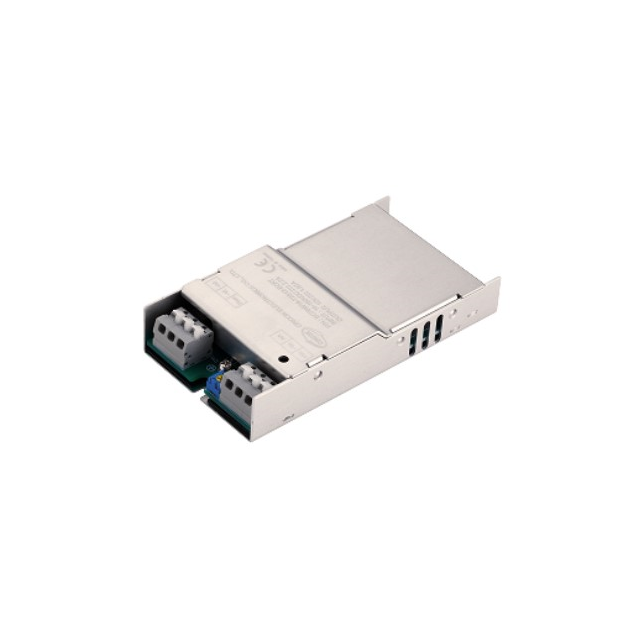

Cincon Electronics Co. LTD | ITE (Commercial) Railway | 1 | 10 VDC | Enclosed | 20 W | CE | -40 °C | 100 °C | 50155 62368-1 | 12 V | 3000 V | 160 V | Chassis Mount | 87 % | 21.6 mm | 59.2 mm | 113 mm | 2.33 " | 4.45 in | 0.85 " | 1.67 A |
