A9PS Series

Catalog

SWITCH PUSH DPST-NO 0.1A 28V

Part	Electrical Life	Mechanical Life	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switch Function	Voltage Rating - AC	Ingress Protection	Type	Circuit	Actuator Type	Termination Style	Actuator Marking	Voltage Rating - DC	Current Rating (Amps)	Size [diameter]	Size [z]	Illumination	For Use With/Related Products	Shape	Color	Switch Type

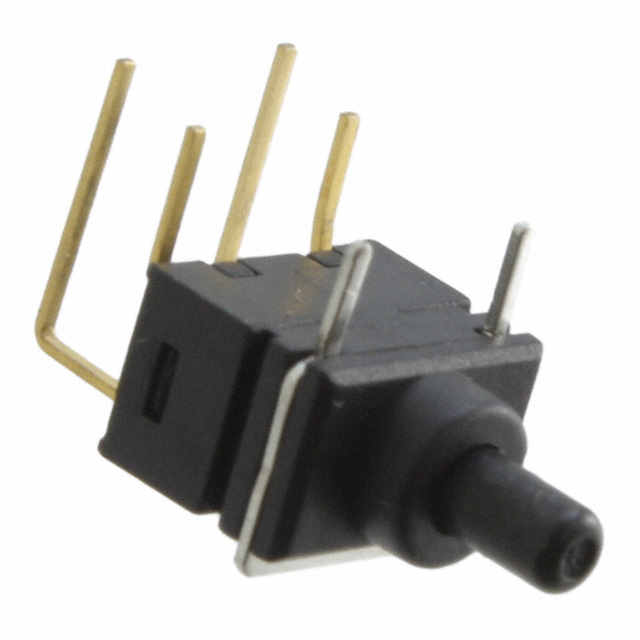

Omron Electronics Inc-EMC Div A9PS26-0012	50000 Cycles	50000 Cycles	Right Angle Through Hole	80 °C	-20 ░C	Sealed - Flux Protection	Off-Mom	28 V	IP64 - Dust Tight Water Resistant	Standard	DPST-NO	Plunger for Cap	PC Pin	No Marking	28 V	100 mA
Omron Electronics Inc-EMC Div A9PS-071			Slip On														4 mm	2.4 mm	Non-Illuminated	A9PS Series	Round	Red	Pushbutton

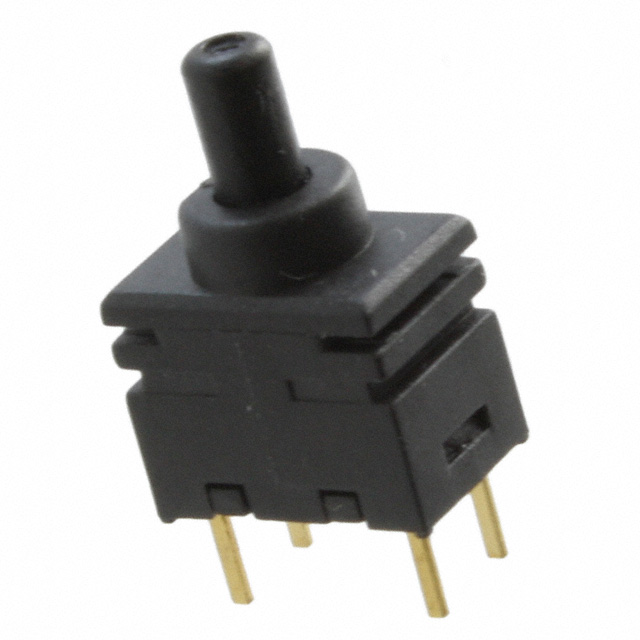

Omron Electronics Inc-EMC Div A9PS16-0011	50000 Cycles	50000 Cycles	Through Hole	80 °C	-20 ░C	Sealed - Flux Protection	Off-Mom	28 V	IP64 - Dust Tight Water Resistant	Standard	SPST-NO	Plunger for Cap	PC Pin	No Marking	28 V	100 mA

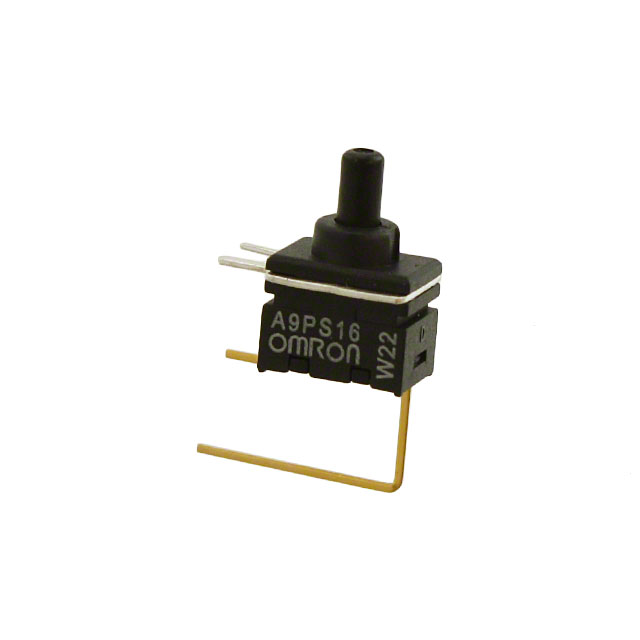

Omron Electronics Inc-EMC Div A9PS16-0013	50000 Cycles	50000 Cycles	Right Angle Through Hole Vertical	80 °C	-20 ░C	Sealed - Flux Protection	Off-Mom	28 V	IP64 - Dust Tight Water Resistant	Standard	SPST-NO	Plunger for Cap	PC Pin	No Marking	28 V	100 mA

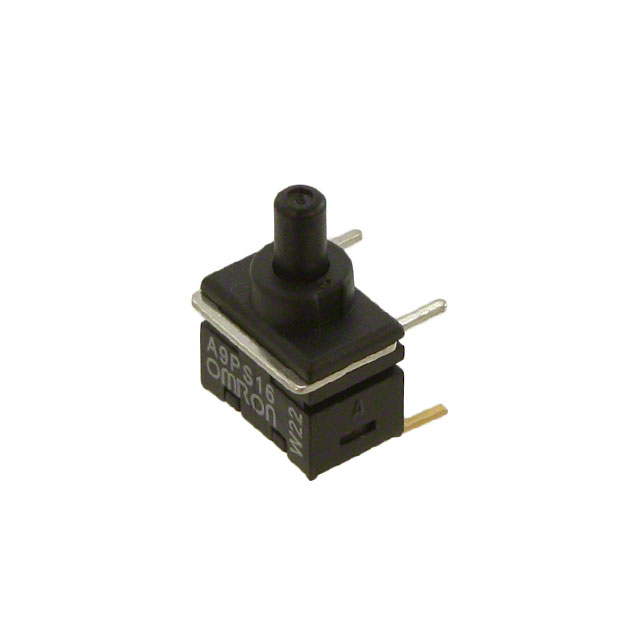

Omron Electronics Inc-EMC Div A9PS16-0012	50000 Cycles	50000 Cycles	Right Angle Through Hole	80 °C	-20 ░C	Sealed - Flux Protection	Off-Mom	28 V	IP64 - Dust Tight Water Resistant	Standard	SPST-NO	Plunger for Cap	PC Pin	No Marking	28 V	100 mA
