224539 Series
Manufacturer: Molex
Beta
⌘K

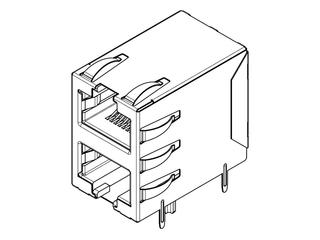

GIGABIT MAGNETIC JACK, 2X1, THROUGH-HOLE, NON-POE , NON-LED
| Part | Features | Number of Cores per Jack | Number of Ports | LED Color | Orientation | Contact Finish | Contact Material | Connector Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Height Above Board [z] | Height Above Board [z] | Shielding | Number of Rows [custom] | Mounting Type | Tab Direction | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Board Guide | 8 | 2 | Does Not Contain LED | 90 ° | Gold | Copper Alloy | RJ45 | 1G Base-T AutoMDIX | 85 °C | -40 C | 25.5 mm | 1.004 in | EMI Finger Shielded | 2 | Through Hole | Up and Down | Solder |
 Molex | Board Guide Solder Retention | 2 | Green Yellow | 90 ° | Gold | Phosphor Bronze | RJ45 | 1G Base-T AutoMDIX | 85 °C | -40 C | 25.79 mm | 1.015 in | EMI Finger Shielded | 2 | Through Hole | Up and Down | Solder |
