123-83 Series

Manufacturer: Preci-Dip

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS

Part	Contact Resistance	Material Flammability Rating	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Finish - Mating	Contact Material - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material - Post [custom]	Mounting Type	Housing Material	Number of Positions or Pins (Grid)	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Features	Pitch - Post	Pitch - Post	Type	Type	Contact Finish - Post	Type	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]

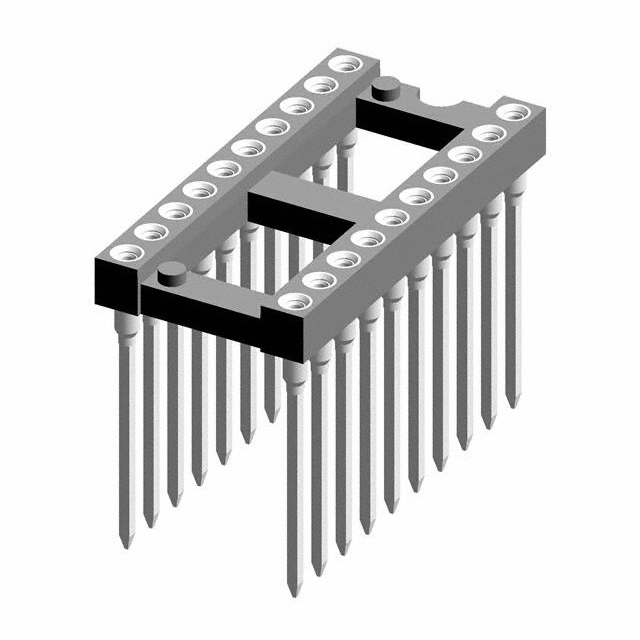

Preci-Dip 123-83-420-41-001101	10 mOhm	UL94 V-0	12.95 mm	0.51 "	1 A	Gold	Beryllium Copper	0.1 "	2.54 mm	-55 C	125 °C	Wire Wrap	Brass	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	20	29.5 µin	0.75 µm	Open Frame	0.1 in	2.54 mm	0.4 in	DIP	Tin

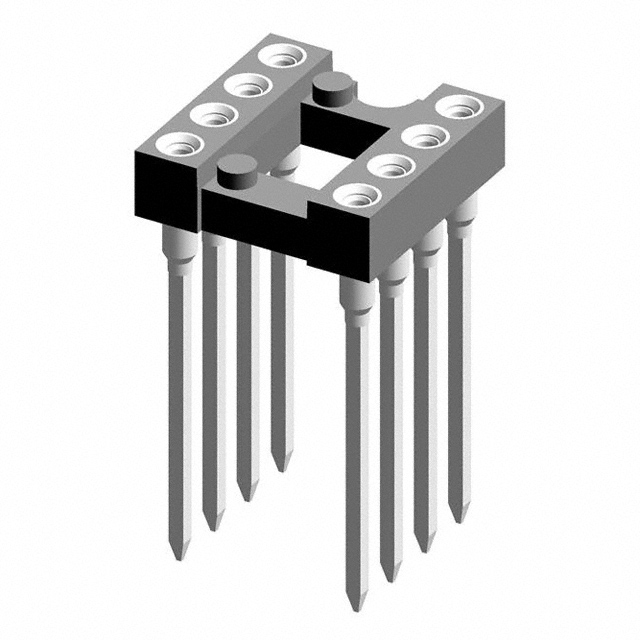

Preci-Dip 123-83-308-41-001101	10 mOhm	UL94 V-0	12.95 mm	0.51 "	1 A	Gold	Beryllium Copper	0.1 "	2.54 mm	-55 C	125 °C	Wire Wrap	Brass	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	8	29.5 µin	0.75 µm	Open Frame	0.1 in	2.54 mm	0.3 in	DIP	Tin	7.62 mm	2	4

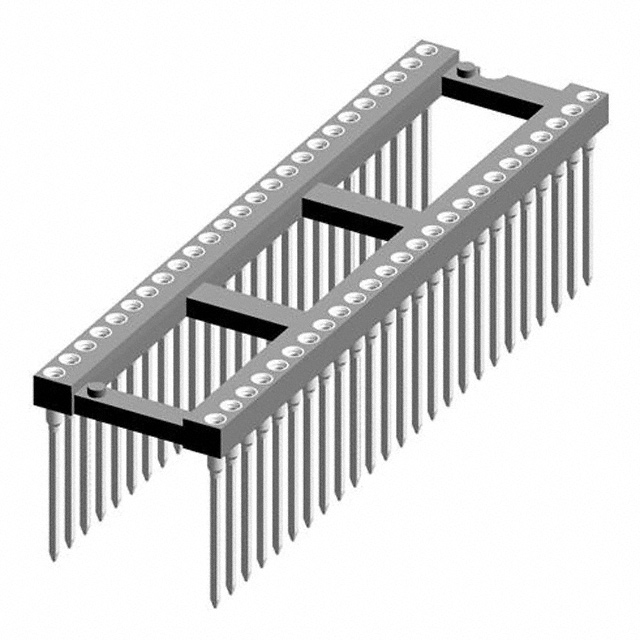

Preci-Dip 123-83-650-41-001101	10 mOhm	UL94 V-0	12.95 mm	0.51 "	1 A	Gold	Beryllium Copper	0.1 "	2.54 mm	-55 C	125 °C	Wire Wrap	Brass	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		29.5 µin	0.75 µm	Open Frame	0.1 in	2.54 mm		DIP	Tin		2	25	15.24 mm	0.6 in	50

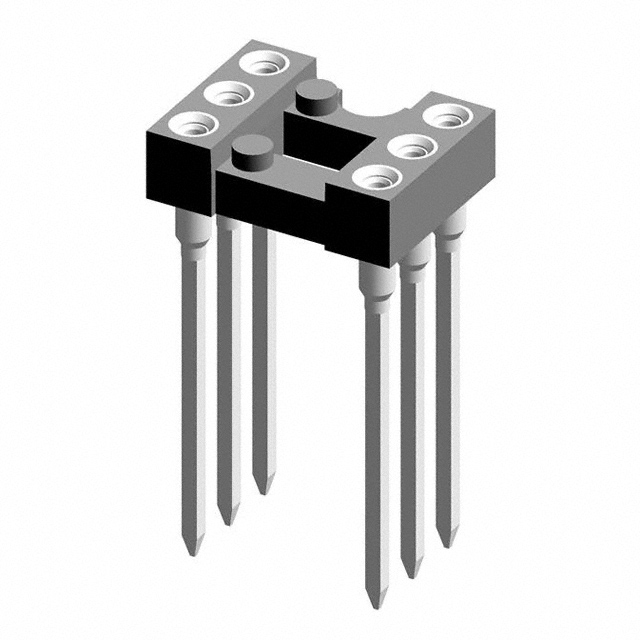

Preci-Dip 123-83-306-41-001101	10 mOhm	UL94 V-0	12.95 mm	0.51 "	1 A	Gold	Beryllium Copper	0.1 "	2.54 mm	-55 C	125 °C	Wire Wrap	Brass	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	6	29.5 µin	0.75 µm	Open Frame	0.1 in	2.54 mm	0.3 in	DIP	Tin	7.62 mm	2	3 positions or pins

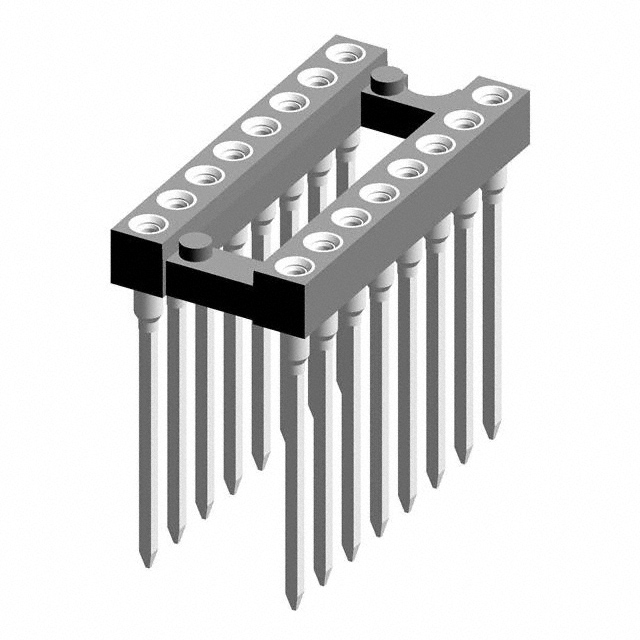

Preci-Dip 123-83-316-41-001101	10 mOhm	UL94 V-0	12.95 mm	0.51 "	1 A	Gold	Beryllium Copper	0.1 "	2.54 mm	-55 C	125 °C	Wire Wrap	Brass	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	16	29.5 µin	0.75 µm	Open Frame	0.1 in	2.54 mm	0.3 in	DIP	Tin	7.62 mm						2	8
Preci-Dip 123-83-328-41-001101	10 mOhm	UL94 V-0	12.95 mm	0.51 "	1 A	Gold	Beryllium Copper	0.1 "	2.54 mm	-55 C	125 °C	Wire Wrap	Brass	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	28	29.5 µin	0.75 µm	Open Frame	0.1 in	2.54 mm	0.3 in	DIP	Tin	7.62 mm

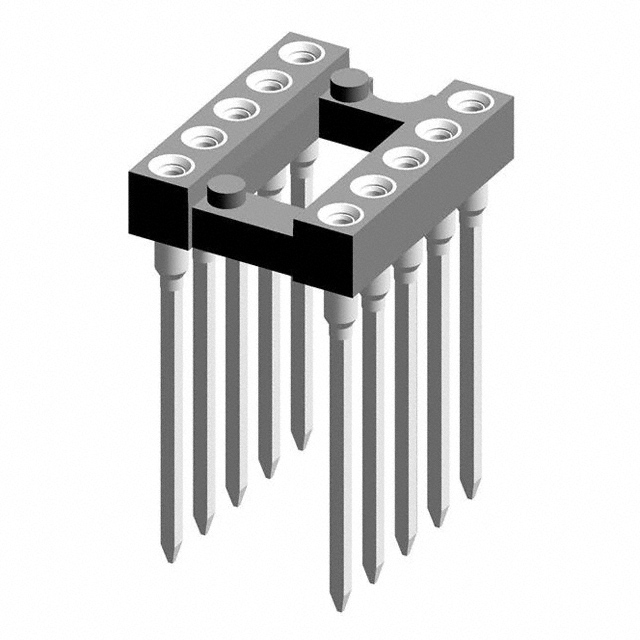

Preci-Dip 123-83-310-41-001101	10 mOhm	UL94 V-0	12.95 mm	0.51 "	1 A	Gold	Beryllium Copper	0.1 "	2.54 mm	-55 C	125 °C	Wire Wrap	Brass	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10	29.5 µin	0.75 µm	Open Frame	0.1 in	2.54 mm	0.3 in	DIP	Tin	7.62 mm	2	5

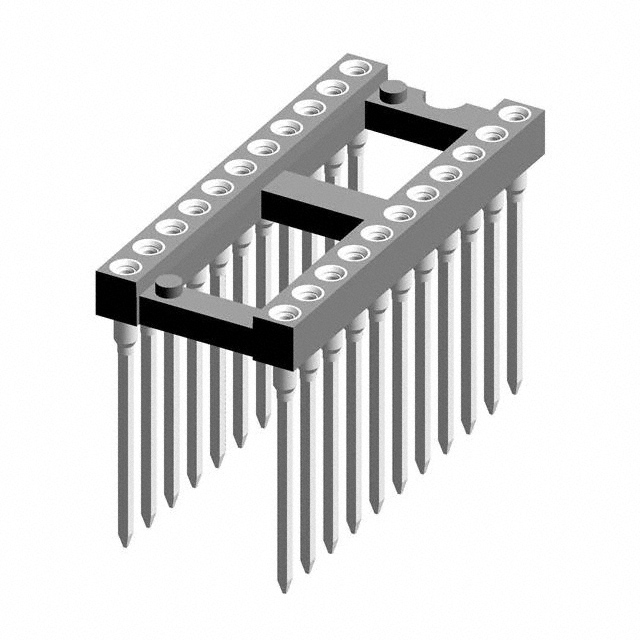

Preci-Dip 123-83-422-41-001101	10 mOhm	UL94 V-0	12.95 mm	0.51 "	1 A	Gold	Beryllium Copper	0.1 "	2.54 mm	-55 C	125 °C	Wire Wrap	Brass	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	22	29.5 µin	0.75 µm	Open Frame	0.1 in	2.54 mm	0.4 in	DIP	Tin		2	11

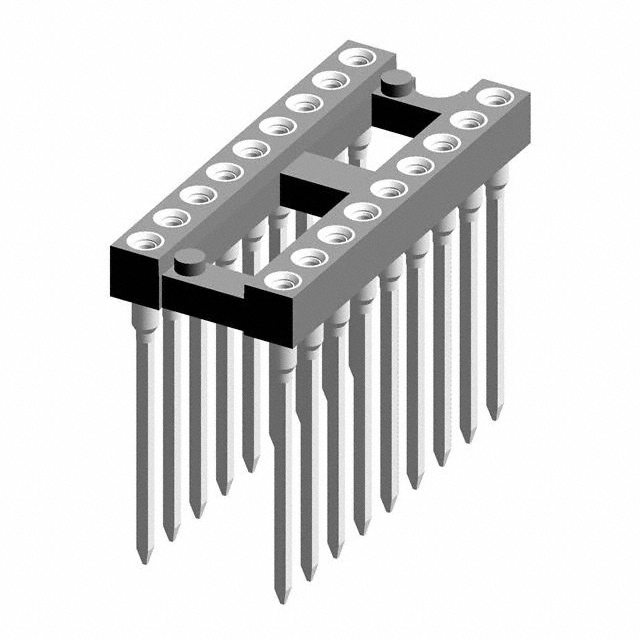

Preci-Dip 123-83-318-41-001101	10 mOhm	UL94 V-0	12.95 mm	0.51 "	1 A	Gold	Beryllium Copper	0.1 "	2.54 mm	-55 C	125 °C	Wire Wrap	Brass	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	18	29.5 µin	0.75 µm	Open Frame	0.1 in	2.54 mm	0.3 in	DIP	Tin	7.62 mm

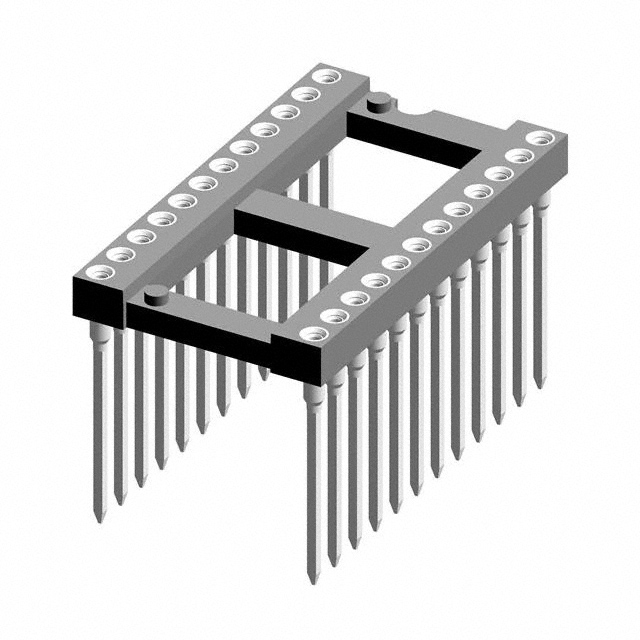

Preci-Dip 123-83-624-41-001101	10 mOhm	UL94 V-0	12.95 mm	0.51 "	1 A	Gold	Beryllium Copper	0.1 "	2.54 mm	-55 C	125 °C	Wire Wrap	Brass	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	24	29.5 µin	0.75 µm	Open Frame	0.1 in	2.54 mm		DIP	Tin		12	2	15.24 mm	0.6 in
