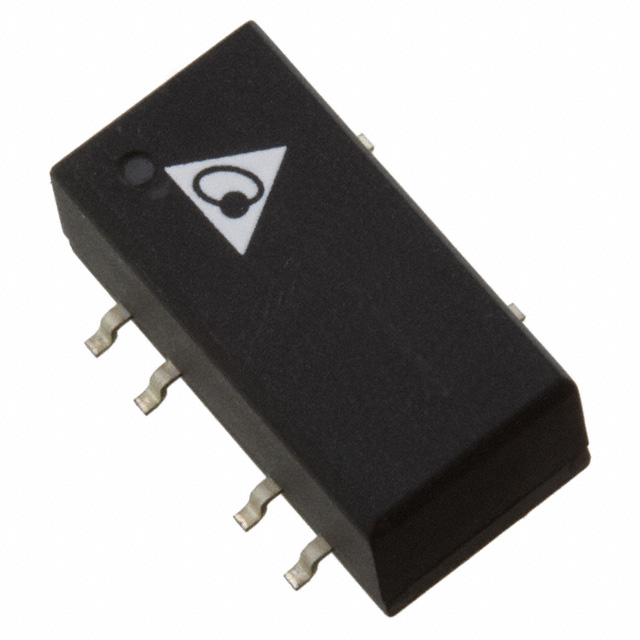

SH01D Series
Manufacturer: Delta Electronics
Beta
⌘K
DC DC CONVERTER +/-12V 1W
| Part | Number of Outputs | Voltage - Input (Min) [Min] | Efficiency | Package / Case | Voltage - Output 2 | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Features | Mounting Type | Voltage - Isolation | Voltage - Output 1 | Current - Output (Max) | Type | Applications | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 2 | 4.5 V | 78 % | 8-SMD Module 5 Leads | -12 V | 85 °C | -40 C | 5.5 V | SCP | Surface Mount | 1.5 kV | 12 V | 42 mA | Isolated Module | Medical | 13.7 mm | 0.54 in | 8 mm | 0.28 " | 7 mm | 0.31 in |
