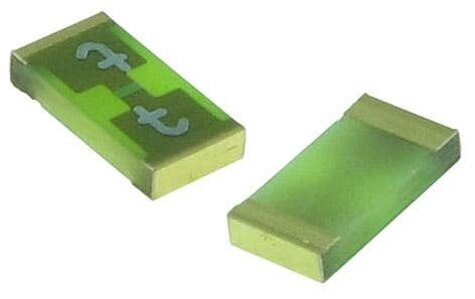

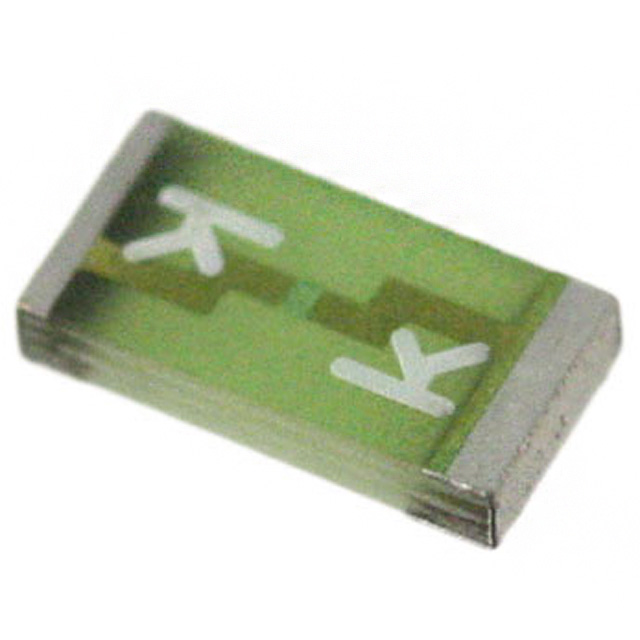

USI 1206 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
"USI 1206, 0.5 A, 63 VDC, 32 VAC, QUICK-ACTING F, 500 PCS. IN BLISTER TAPE [W.12MM AND P1: 4MM] REEL [18CM] PCS., FUSE, SMT, 3.2 X 1.6 MM\/
| Part | DC Cold Resistance | Melting I˛t | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Melting I²t | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Approval Agency | Voltage Rating - AC | Voltage Rating - DC | Fuse Type | Breaking Capacity @ Rated Voltage | Response Time | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.33 Ohms | 0.041 | 0.5 A | 90 °C | -55 C | 0.041 | 0.6 mm | 3.2 mm | 0.063 " | 1.6 mm | 0.126 " | 0.024 in | cURus VDE | 32 V | 63 VDC | Board Mount (Cartridge Style Excluded) | 63 A | Fast Blow | Surface Mount | 1206 (3216 Metric) |
 SCHURTER Inc. | 5 A | 90 °C | -55 C | 4.65 | 0.6 mm | 3.2 mm | 0.063 " | 1.6 mm | 0.126 " | 0.024 in | cURus VDE | 32 V | 63 VDC | Board Mount (Cartridge Style Excluded) | 63 A | Fast Blow | Surface Mount | 1206 (3216 Metric) | ||
 SCHURTER Inc. | 0.0505 Ohms | 1.6 A | 90 °C | -55 C | 0.33 | 0.6 mm | 3.2 mm | 0.063 " | 1.6 mm | 0.126 " | 0.024 in | cURus VDE | 32 V | 63 VDC | Board Mount (Cartridge Style Excluded) | 63 A | Fast Blow | Surface Mount | 1206 (3216 Metric) | |
 SCHURTER Inc. | 1.25 A | 90 °C | -55 C | 0.31 I²t | 0.6 mm | 3.2 mm | 0.063 " | 1.6 mm | 0.126 " | 0.024 in | cURus VDE | 32 V | 63 VDC | Board Mount (Cartridge Style Excluded) | 63 A | Fast Blow | Surface Mount | 1206 (3216 Metric) | ||
SCHURTER Inc. | 12.5 mOhms | 4 A | 90 °C | -55 C | 0.6 mm | 3.2 mm | 0.063 " | 1.6 mm | 0.126 " | 0.024 in | cURus VDE | 32 V | 63 VDC | Board Mount (Cartridge Style Excluded) | 63 A | Fast Blow | Surface Mount | 1206 (3216 Metric) |
