6545PA Series
Manufacturer: Belden Inc.
Beta
⌘K

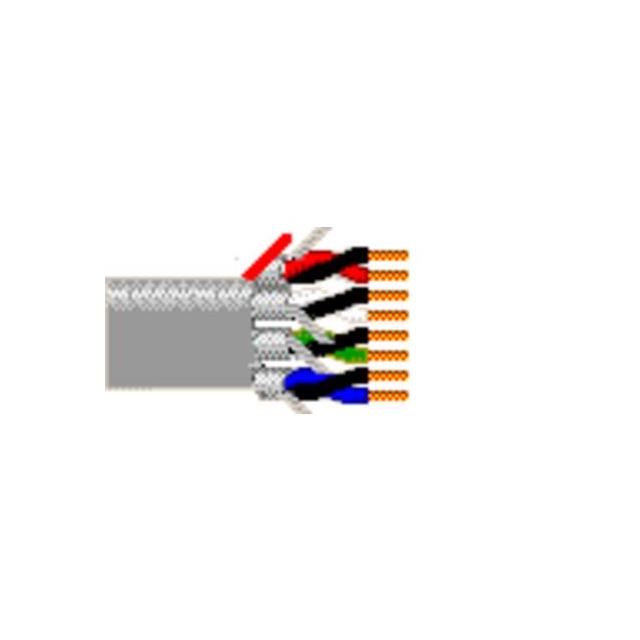

MULTI-PAIR 12CON 22AWG GRY
| Part | Shield Coverage | Shield Material | Cable Type | Number of Conductors | Usage | Length | Length | Ratings | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Conductor Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Material | Shield Type | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Multi-Pair | 12 | Security Sound | 304.8 m | 1000 ft | UL Style CMP | Gray | 150 °C | -20 ░C | Fluorinated Ethylene-Propylene (FEP) | Copper Bare | 300 VDC | 30 AWG | 7 | 22 AWG | 0.381 mm | 0.015 in | Plenum Polyvinylidene Fluoride (PVDF) | Foil | Drain Wire Rip Cord | 7.62 mm | 0.3 in |
