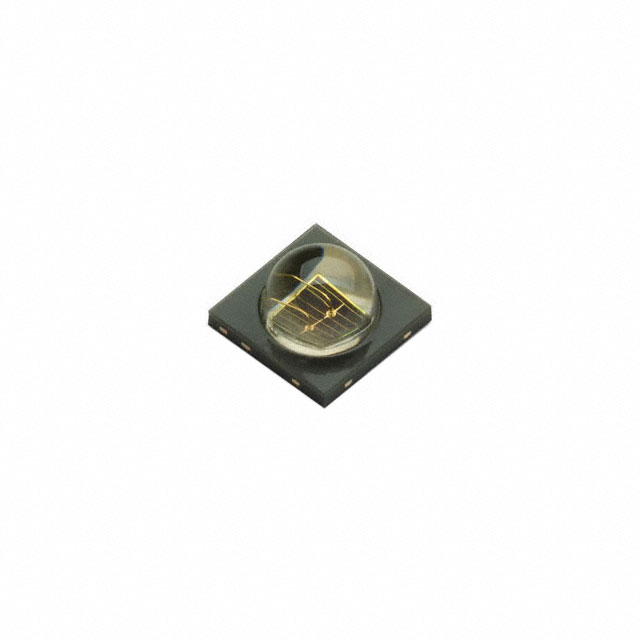

ARE1 Series
Manufacturer: Broadcom Limited
Beta
⌘K
INFRARED EMITTERS HIGH POWER IRLED, 850NM, 150DEG
| Part | Viewing Angle | Orientation | Mounting Type | Wavelength | Voltage - Forward (Vf) (Typ) | Type | Current - DC Forward (If) (Max) [Max] | Package / Case | Radiant Intensity (Ie) Min @ If [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Radiant Intensity (Ie) Min @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 150 ° | Top View | Surface Mount | 850 nm | 1.8 V | Infrared (IR) | 1 A | 3-SMD No Lead | 150 mW/sr | -40 C | 100 °C | |
Broadcom Limited | 150 ° | Top View | Surface Mount | 850 nm | 1.8 V | Infrared (IR) | 1 A | 3-SMD No Lead | -40 C | 85 °C | 100 mW/sr | |
Broadcom Limited | 90 ° | Top View | Surface Mount | 940 nm | 3 V | Infrared (IR) | 1 A | 3-SMD No Lead | -40 C | 85 °C | 320 mW/sr | |
Broadcom Limited | 90 ° | Top View | Surface Mount | 850 nm | 3.2 V | Infrared (IR) | 1 A | 3-SMD No Lead | -40 C | 85 °C | 630 mW/sr | |
Broadcom Limited | 150 ° | Top View | Surface Mount | 940 nm | 3 V | Infrared (IR) | 1 A | 3-SMD No Lead | 160 mW/sr | -40 C | 85 °C | |
Broadcom Limited | 90 ° | Top View | Surface Mount | 940 nm | 1.8 V | Infrared (IR) | 1 A | 3-SMD No Lead | 160 mW/sr | -40 C | 85 °C | |
 Broadcom Limited | 50 ° | Top View | Surface Mount | 850 nm | 1.8 V | Infrared (IR) | 1 A | 3-SMD No Lead | 550 mW/sr | -40 C | 100 °C |
