SRP3020TA Series

Catalog

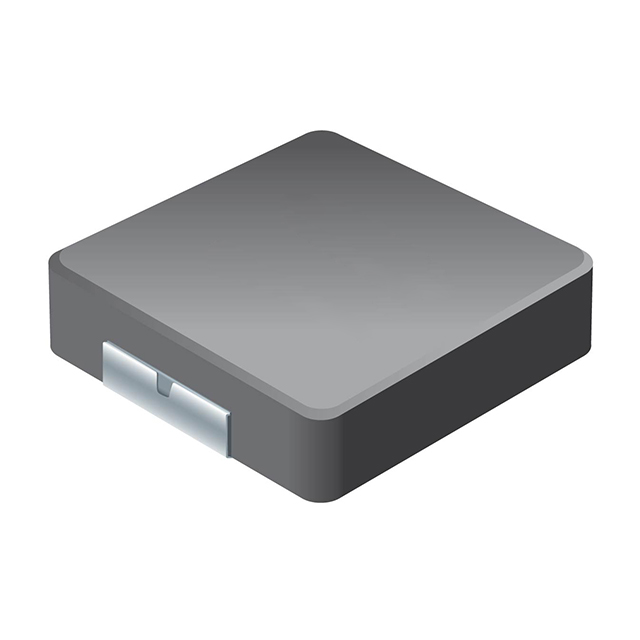

POWER INDUCTOR (SMD), 4.7 ΜH, 2.6 A, SHIELDED, 3 A, SRP3020TA SERIES

Part	Supplier Device Package	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Mounting Type	Package / Case	Ratings	Material - Core	Inductance Frequency - Test	DC Resistance (DCR)	Current Rating (Amps)	Q @ Freq	Current - Saturation (Isat)	Tolerance	Type	Frequency - Self Resonant	DC Resistance (DCR) [Max]
Bourns Inc. SRP3020TA-4R7M	2-SMD	4.7 ÁH	-40 C	150 °C	0.079 in	2 mm	0.138 in	0.126 in	3.5 mm	3.2 mm	Shielded	Surface Mount	2-SMD	AEC-Q200	Carbonyl Powder	100 kHz	200 mOhm	2.6 A	10 100 kHz	3 A	20 %	Drum Core Wirewound	34 MHz
Bourns Inc. SRP3020TA-R22Y	2-SMD	220 nH	-40 C	150 °C	0.079 in	2 mm	0.138 in	0.126 in	3.5 mm	3.2 mm	Shielded	Surface Mount	2-SMD	AEC-Q200	Carbonyl Powder	100 kHz	14 mOhm	9 A	5 100 kHz	11.2 A	30 %	Drum Core Wirewound	185 MHz
Bourns Inc. SRP3020TA-R68M	2-SMD	0.68 µH	-40 C	150 °C	0.079 in	2 mm	0.138 in	0.126 in	3.5 mm	3.2 mm	Shielded	Surface Mount	2-SMD	AEC-Q200	Carbonyl Powder	100 kHz	29 mOhm	5.5 Amps	5 100 kHz	7 A	20 %	Drum Core Wirewound	94 MHz
Bourns Inc. SRP3020TA-R33M	2-SMD	330 nH	-40 C	150 °C	0.079 in	2 mm	0.138 in	0.126 in	3.5 mm	3.2 mm	Shielded	Surface Mount	2-SMD	AEC-Q200	Carbonyl Powder	100 kHz		8 A	5 100 kHz	10 A	20 %	Drum Core Wirewound	160 MHz	21 mOhm
