ASMT-QWBC Series

Catalog

LED 4PLCC SMD

Part	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Supplier Device Package	Height (Max) [z]	Thermal Resistance of Package	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Flux @ 85°C, Current - Test	Viewing Angle	CCT (K) [Min]	CCT (K)	CCT (K) [Max]	Color	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)

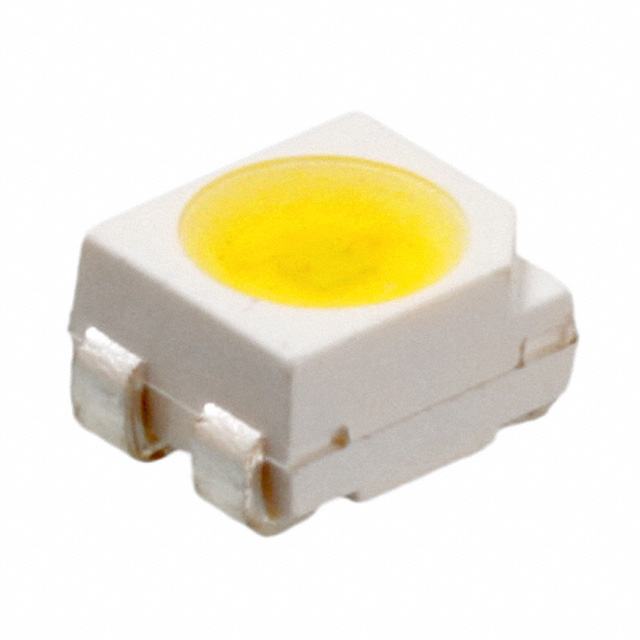

Broadcom Limited ASMT-QWBC-NJKYE	4-PLCC	2.8 mm	3.2 mm	Surface Mount	4-PLCC	2.1 mm

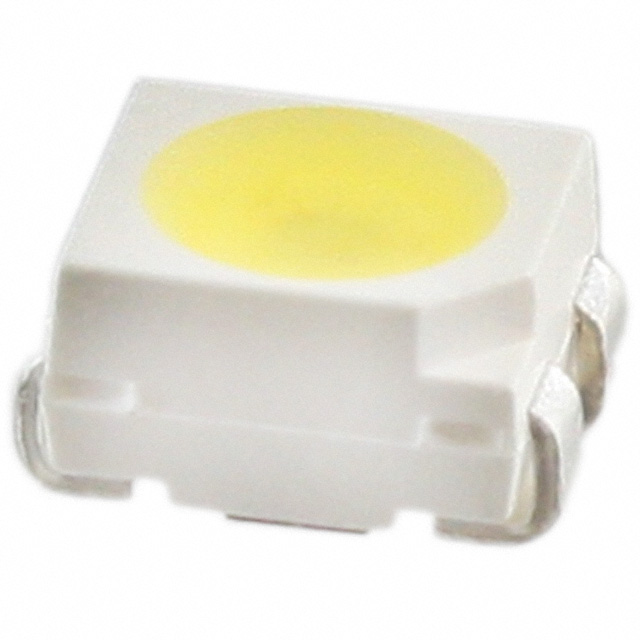

Broadcom Limited ASMT-QWBC-NHJ0E	4-PLCC	0.11 "	0.126 "	Surface Mount	4-PLCC		40 °C/W	43 lm	26 lm	34 lm	150 mA	2.1 mm	0.083 in	3.2 mm	2.8 mm	150 mA	31 lm	120 °	4500 K	7250 K	10000 K	Cool White	67 lm/W	3.4 V
Broadcom Limited ASMT-QWBC-NJKLE	4-PLCC	0.11 "	0.126 "	Surface Mount	4-PLCC		40 °C/W	56 lm	33 lm	45 lm	150 mA	2.1 mm	0.083 in	3.2 mm	2.8 mm	150 mA		120 °	4500 K	7250 K	10000 K	Cool White	88 lm/W	3.4 V
