TCA Series

Manufacturer: OptiFuse

Catalog

FUSE CERAMIC 3A 250VAC 3AB 3AG

Part	Mounting Type	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Fuse Type	Approval Agency	Response Time	Package / Case [x]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Breaking Capacity @ Rated Voltage	Size / Dimension [diameter]	Size / Dimension [x]
OptiFuse TCA-3A	Requires Holder	3 A	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Ceramic	cULus UL 248	Slow Blow	0.25 in	3AB 3AG	-55 C	125 °C	250 V	100 A

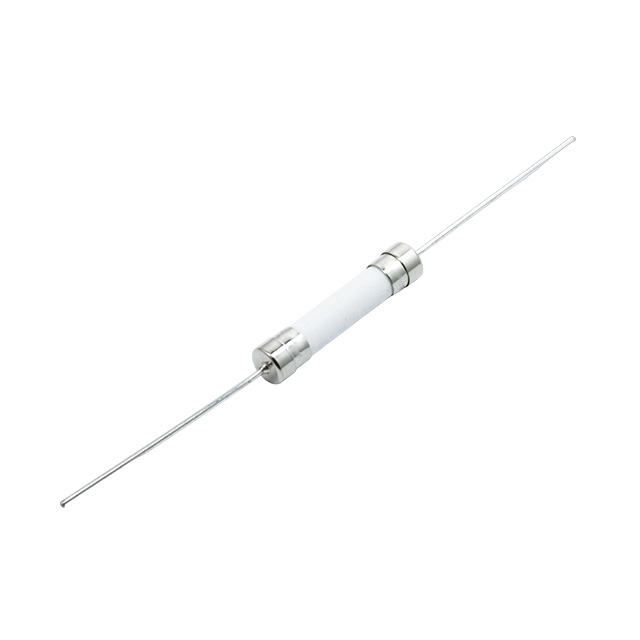

OptiFuse TCA-P-10A	Through Hole	10 A	32.4 mm		6.85 mm		Cartridge Ceramic	cULus UL 248	Slow Blow	0.25 "	3AB 3AG	-55 C	125 °C	250 V	200 A	0.27 in	1.276 "
OptiFuse TCA-1.5A	Requires Holder	1.5 A	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Ceramic	cULus UL 248	Slow Blow	0.25 in	3AB 3AG	-55 C	125 °C	250 V	100 A
OptiFuse TCA-800MA	Requires Holder	800 mA	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Ceramic	cULus UL 248	Slow Blow	0.25 in	3AB 3AG	-55 C	125 °C	250 V	100 A
OptiFuse TCA-1A	Requires Holder	1 A	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Ceramic	cULus UL 248	Slow Blow	0.25 in	3AB 3AG	-55 C	125 °C	250 V	100 A
OptiFuse TCA-100MA	Requires Holder	100 mA	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Ceramic	cULus UL 248	Slow Blow	0.25 in	3AB 3AG	-55 C	125 °C	250 V	35 A
OptiFuse TCA-6A	Requires Holder	6 A	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Ceramic	cULus UL 248	Slow Blow	0.25 in	3AB 3AG	-55 C	125 °C	250 V	200 A
OptiFuse TCA-15A	Requires Holder	15 A	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Ceramic	cULus UL 248	Slow Blow	0.25 in	3AB 3AG	-55 C	125 °C	250 V	750 A
OptiFuse TCA-12A	Requires Holder	12 Amps	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Ceramic	cULus UL 248	Slow Blow	0.25 in	3AB 3AG	-55 C	125 °C	250 V	750 A
OptiFuse TCA-25A	Requires Holder	25 A	31.8 mm	1.252 "	6.35 mm	0.25 "	Cartridge Ceramic	cURus UL 248	Slow Blow	0.25 in	3AB 3AG	-55 C	125 °C	250 V	100 A
