305-058 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 58POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Card Type	Termination	Contact Finish	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Color	Gender	Contact Material	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Number of Positions	Contact Type	Read Out	Features	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]

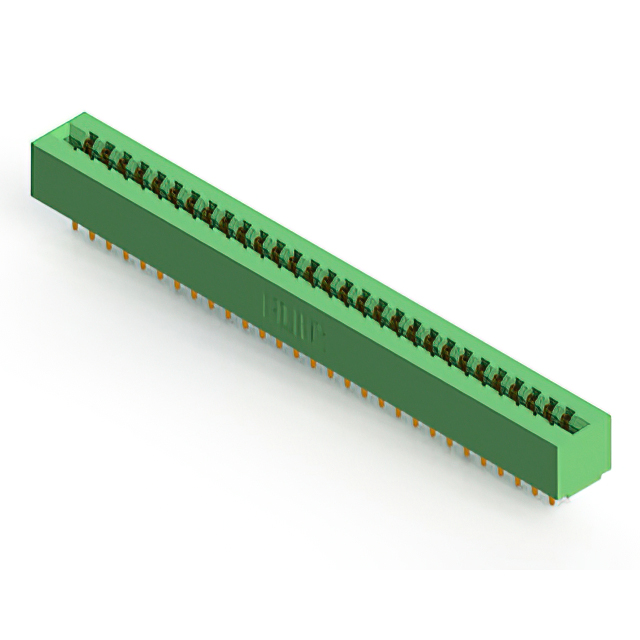

EDAC Inc. 305-058-520-501	Polyester Thermoplastic	2	Non Specified - Dual Edge	Solder	Gold	2	0.25 Ám	10 Áin	-40 C	105 ░C	29	Green	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	58	Semi Bellows	Dual

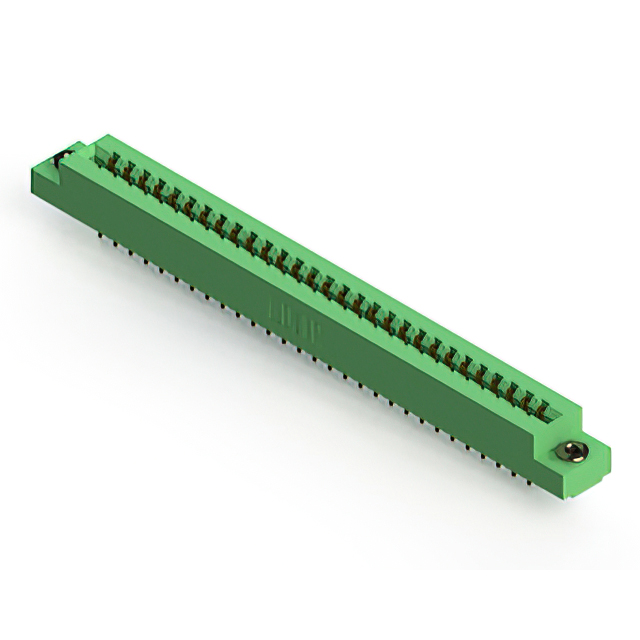

EDAC Inc. 305-058-556-503	Polyester Thermoplastic	2	Non Specified - Dual Edge	Solder	Gold	2	0.25 Ám	10 Áin	-40 C	105 ░C	29	Green	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	58	Semi Bellows	Dual	Card Extender	0.116 "	Floating Bobbin Flush Mount	2.95 mm

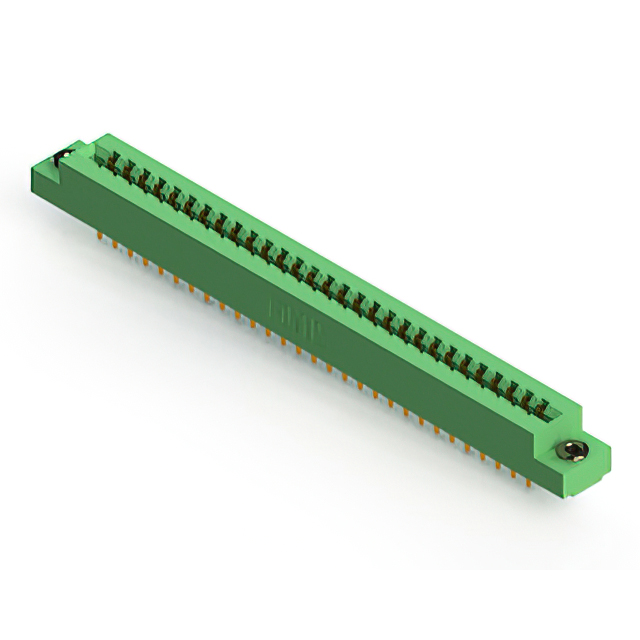

EDAC Inc. 305-058-520-503	Polyester Thermoplastic	2	Non Specified - Dual Edge	Solder	Gold	2	0.25 Ám	10 Áin	-40 C	105 ░C	29	Green	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	58	Semi Bellows	Dual		0.116 "	Floating Bobbin Flush Mount	2.95 mm

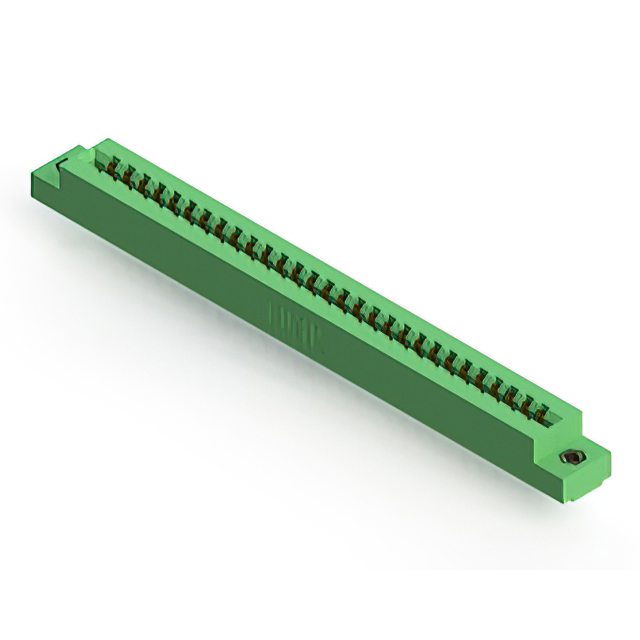

EDAC Inc. 305-058-521-207	Polyester Thermoplastic	2	Non Specified - Dual Edge	Solder	Gold	2	0.25 Ám	10 Áin	-40 C	105 ░C	29	Green	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	58	Semi Bellows	Dual			Flush Mount M3 Threaded Insert Top Opening

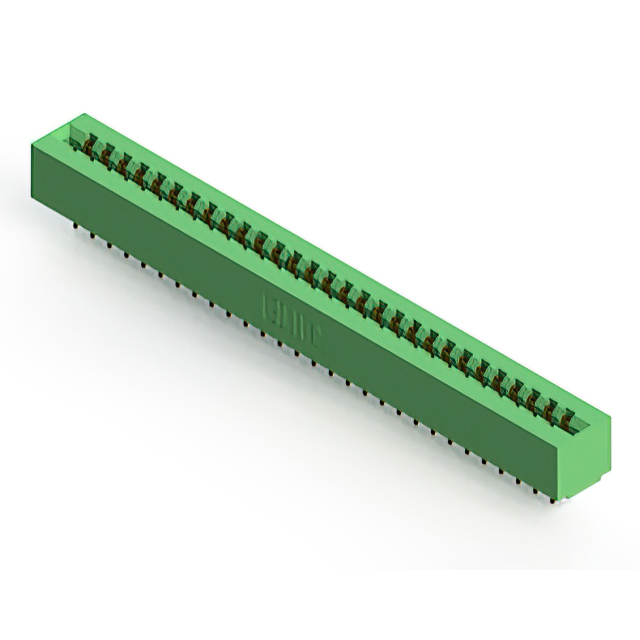

EDAC Inc. 305-058-556-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	Solder	Gold	2	0.25 Ám	10 Áin	-40 C	105 ░C	29	Green	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	58	Semi Bellows	Dual	Card Extender

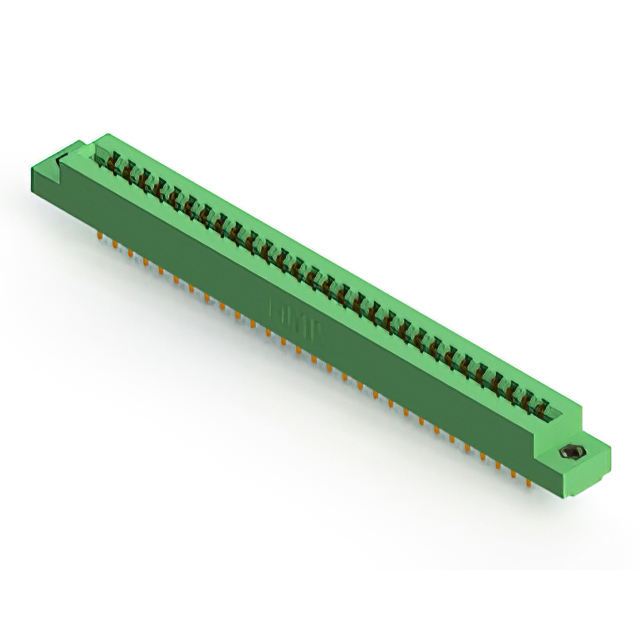

EDAC Inc. 305-058-520-508	Polyester Thermoplastic	2	Non Specified - Dual Edge	Solder	Gold	2	0.25 Ám	10 Áin	-40 C	105 ░C	29	Green	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	58	Semi Bellows	Dual			4-40 Flush Mount Threaded Insert Top Opening

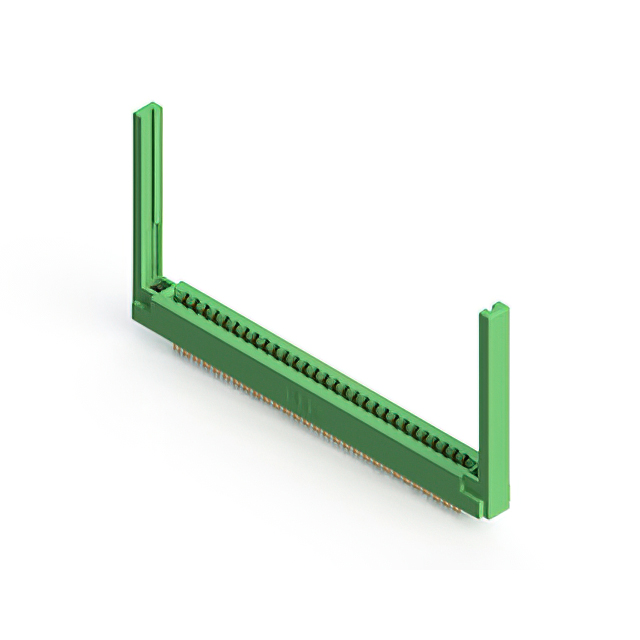

EDAC Inc. 305-058-500-268	Polyester Thermoplastic	2	Non Specified - Dual Edge	Solder Eyelet(s)	Gold	2	0.25 Ám	10 Áin	-40 C	105 ░C	29	Green	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	58	Semi Bellows	Dual			4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 305-058-520-208	Polyester Thermoplastic	2	Non Specified - Dual Edge	Solder	Gold	2	0.25 Ám	10 Áin	-40 C	105 ░C	29	Green	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	58	Semi Bellows	Dual			4-40 Flush Mount Threaded Insert Top Opening

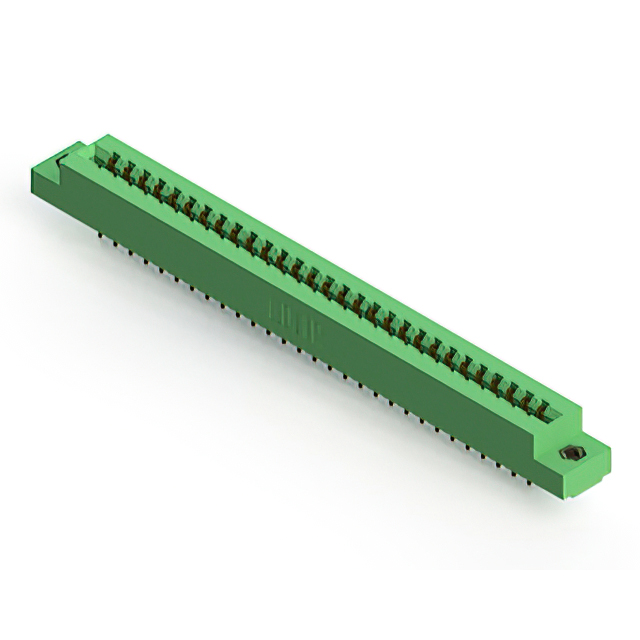

EDAC Inc. 305-058-556-507	Polyester Thermoplastic	2	Non Specified - Dual Edge	Solder	Gold	2	0.25 Ám	10 Áin	-40 C	105 ░C	29	Green	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	58	Semi Bellows	Dual	Card Extender		Flush Mount M3 Threaded Insert Top Opening

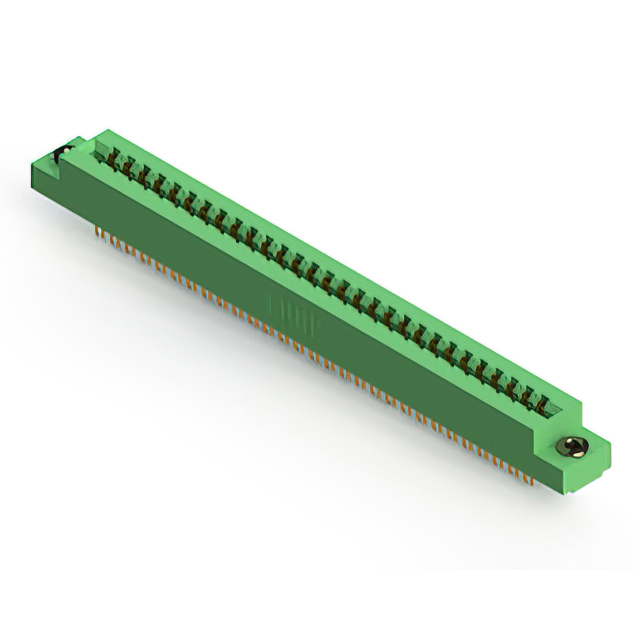

EDAC Inc. 305-058-500-203	Polyester Thermoplastic	2	Non Specified - Dual Edge	Solder Eyelet(s)	Gold	2	0.25 Ám	10 Áin	-40 C	105 ░C	29	Green	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	58	Semi Bellows	Dual		0.116 "	Floating Bobbin Flush Mount	2.95 mm
