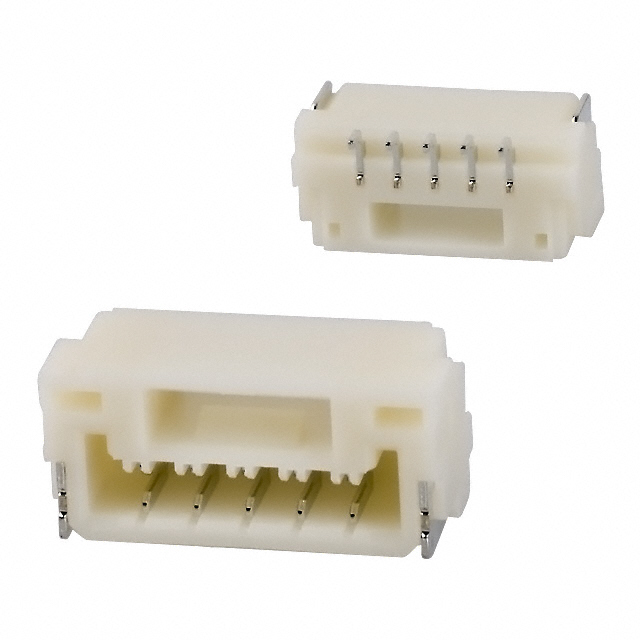

SM05B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 5POS 1.25MM
| Part | Insulation Color | Pitch - Mating | Pitch - Mating | Fastening Type | Voltage Rating | Mounting Type | Number of Positions | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Termination | Contact Shape | Number of Positions Loaded | Contact Type | Insulation Height | Insulation Height | Connector Type | Contact Material | Insulation Material | Material Flammability Rating | Shrouding | Features | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | 0.049 in | 1.25 mm | Locking Ramp | 50 V | Right Angle Surface Mount | 5 | 1 | 85 °C | -25 °C | Tin | Solder | Rectangular | All | Outer Shroud Contact | 4.25 mm | 0.167 " | Header | Phosphor Bronze | Nylon 9T Polyamide (PA9T) | UL94 V-0 | Shrouded - 4 Wall | Solder Retention | Board to Cable/Wire |
