DE1E3KX Series

Catalog

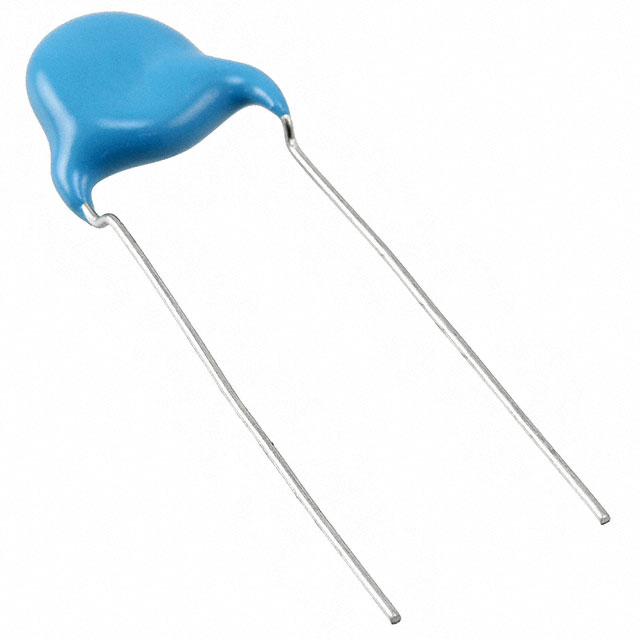

CAP CER 3300PF 300VAC RADIAL

Part	Mounting Type	Capacitance	Temperature Coefficient	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Ratings [custom]	Ratings [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Features	Lead Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Murata Electronics DE1E3KX332MB4BP01F	Through Hole	0.0033 µF	E	Safety	0.512 "	13 mm	0.394 in	10 mm	X1	Y1	0.394 in	10 mm	Disc Radial	Flame Retardant	Straight	125 °C	-40 C	250 VAC	20 %
Murata Electronics DE1E3KX102MA4BP01F	Through Hole	0.001 µF	E	Safety			0.394 in	10 mm	X1	Y1	0.276 in	7 mm	Disc Radial	Flame Retardant	Straight	125 °C	-40 C	250 VAC	20 %	10 mm	0.394 in
Murata Electronics DE1E3KX222MB4BN01F	Through Hole	2200 pF	E	Safety			0.394 in	10 mm	X1	Y1	0.354 in	9 mm	Disc Radial	Flame Retardant	Straight	125 °C	-40 C	250 VAC	20 %		0.472 in	12 mm
Murata Electronics DE1E3KX152MN4AP01F	Through Hole	1500 pF	E	Safety	0.433 in	11 mm	0.394 in	10 mm	X1	Y1	0.315 in	8 mm	Disc Radial	Flame Retardant	Straight	125 °C	-40 C	250 VAC	20 %
Murata Electronics DE1E3KX472MN4AL01	Through Hole	0.0047 µF	E	Safety	0.591 "	15 mm	0.394 in	10 mm	X1	Y1	0.472 "	12 mm	Disc Radial	Flame Retardant	Straight	125 °C	-40 C	250 VAC	20 %
Murata Electronics DE1E3KX152MA4BN01F	Through Hole	1500 pF	E	Safety	0.433 in	11 mm	0.394 in	10 mm	X1	Y1	0.315 in	8 mm	Disc Radial	Flame Retardant	Straight	125 °C	-40 C	250 VAC	20 %
Murata Electronics DE1E3KX102MJ4BN01F
Murata Electronics DE1E3KX102MN5AA01	Through Hole	0.001 µF	E	Safety			0.394 in	10 mm	X1	Y1	0.315 in	8 mm	Disc Radial	Flame Retardant	Straight	125 °C	-40 C	250 VAC	20 %		0.472 in	12 mm
Murata Electronics DE1E3KX332MN5AA01	Through Hole	0.0033 µF	E	Safety	0.63 in	16 mm	0.394 in	10 mm	X1	Y1	0.472 "	12 mm	Disc Radial	Flame Retardant	Straight	125 °C	-40 C	250 VAC	20 %
Murata Electronics DE1E3KX102MN4AN01F	Through Hole	0.001 µF	E	Safety			0.394 in	10 mm	X1	Y1	0.276 in	7 mm	Disc Radial	Flame Retardant	Straight	125 °C	-40 C	250 VAC	20 %	10 mm	0.394 in
