JL05-6A1 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN PLG HSG MALE 19POS INLINE
| Part | Number of Positions | Note | Insert Material | Ingress Protection | Features | Shielding | Type | Connector Type | Housing Color | Fastening Type | Shell Finish | Contact Size | Contact Type | Orientation | Mounting Type | Shell Size - Insert | Shell Material | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 19 | Contacts Not Included | Synthetic Resin | IP67 - Dust Tight Waterproof | Coupling Nut | Unshielded | For Male Pins | Plug Housing | Black | Bayonet Lock | Zinc | 20 | Crimp | N (Normal) | Free Hanging (In-Line) | 18-19A | Aluminum | Circular | -55 C | 125 °C | UL94 V-0 | ||
 JAE Electronics | 5 | Contacts Not Included | Synthetic Resin | IP67 - Dust Tight Waterproof | Coupling Nut | Unshielded | For Male Pins | Plug Housing | Black | Bayonet Lock | Zinc | 12 | Crimp | N (Normal) | Free Hanging (In-Line) | Aluminum | Circular | -55 C | 125 °C | UL94 V-0 | 18 | 11 | |

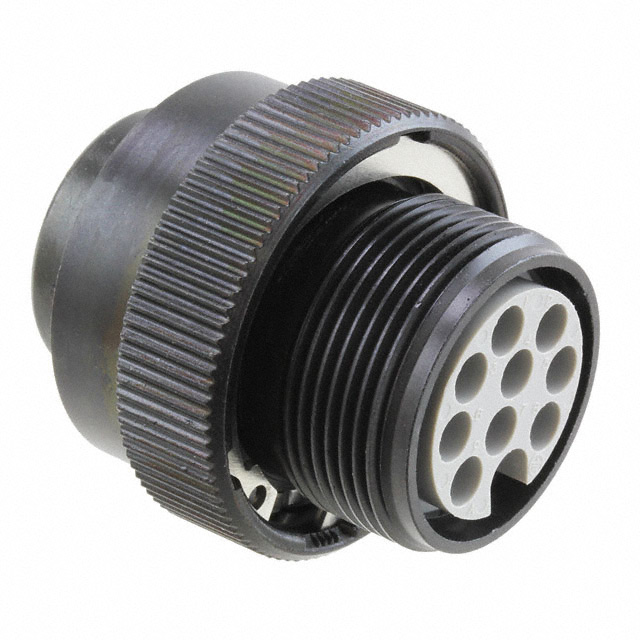

 JAE Electronics | 10 | Contacts Not Included | Synthetic Resin | IP67 - Dust Tight Waterproof | Coupling Nut | Unshielded | For Female Sockets | Plug Housing | Black | Bayonet Lock | Zinc | 16 | Crimp | N (Normal) | Free Hanging (In-Line) | 18-1 | Aluminum | Circular | -55 C | 125 °C | UL94 V-0 | ||

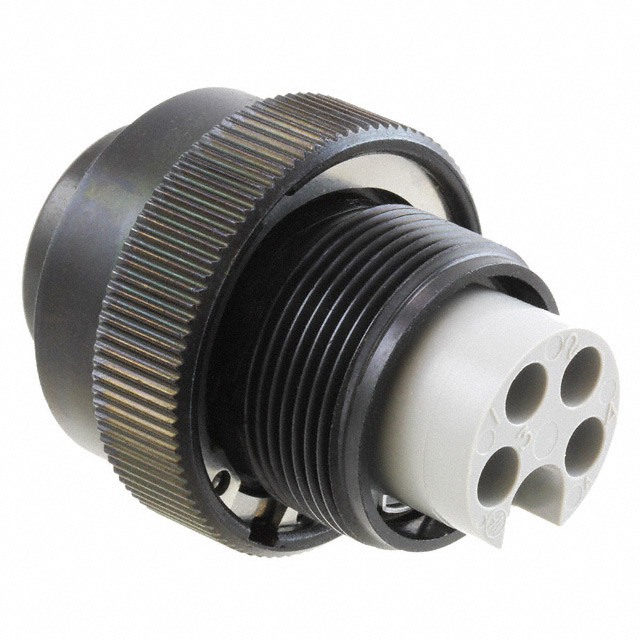

JAE Electronics | 5 | Contacts Not Included | Synthetic Resin | IP67 - Dust Tight Waterproof | Coupling Nut | Unshielded | For Female Sockets | Plug Housing | Black | Bayonet Lock | Zinc | 12 | Crimp | N (Normal) | Free Hanging (In-Line) | Aluminum | Circular | -55 C | 125 °C | UL94 V-0 | 18 | 11 |
