1437601 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

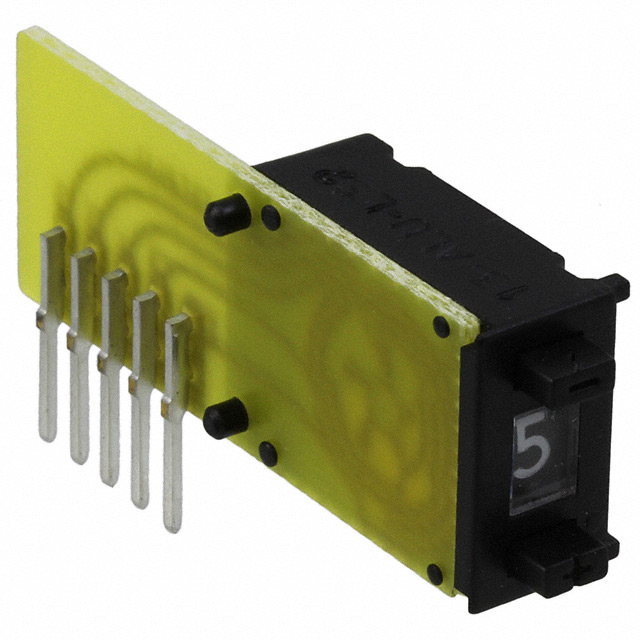

SWITCH THUMB BCD COMP 0.4VA 20V
| Part | Housing Material | Electrical Life | Depth Behind Flange | Color | Actuator Type | Number of Sections | Contact Rating @ Voltage | Read Out [Max] | Read Out [Min] | Termination Style | Display Characters - Height [z] | Display Characters - Height [z] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | End Caps | Output Code | Mounting Type | Section Width [custom] | Section Width [custom] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyphenylene Oxide (PPO) | 100000 Cycles | 35.81 mm | Black | Pushwheel | 1 | 0.4 VA 20 VAC/DC | 9 | 0 | PC Pin | 3.1 mm | 0.122 in | -10 °C | 60 °C | Copper Tin Alloy | Sold Separately | BCD Complement | Panel Mount Right Angle Screw | 0.3 in | 7.62 mm | Gold |
