PK10 Series

Catalog

IC MCU 32B 512KB FLASH 144MAPBGA

Part	Core Size (Bit Width)	Core Configuration	Operating Temperature (Max)	Operating Temperature (Min)	RAM Size Width	RAM Size Depth	Mounting Type	Program Memory Type	Program Memory Width	Program Memory Size	Program Memory Depth	A/D Channels	A/D Resolution (bits)	D/A Resolution (bits)	D/A Channels	Oscillator Type	Package Width	Package Name	Package Length	Core Processor	Number of I/O	Connectivity	Package / Case	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Speed	Peripherals	EEPROM Size (Width)	EEPROM Size (Depth)
NXP USA Inc. PK10N512VMD100	32 Bit	Single-Core	105 °C	-40 °C	8 bit	128 K	Surface Mount	FLASH	8 bit	512 KB	512 K	37 count	16 bit	12 bit	2 count	Internal	13 mm	144-MAPBGA	13 mm	ARM® Cortex®-M4	104	CANbus EBI EMI I2C IrDA SD SPI UART USART	144-LBGA	1.71 V	3.6 V	100 MHz	DMA I2S LVD POR PWM WDT
NXP USA Inc. PK10N512VLL100	32 Bit	Single-Core	105 °C	-40 °C	8 bit	128 K	Surface Mount	FLASH	8 bit	512 KB	512 K	29 count	16 bit	12 bit	1 count	Internal	14 mm	100-LQFP	14 mm	ARM® Cortex®-M4	70	CANbus EBI EMI I2C IrDA SD SPI UART USART	100-LQFP	1.71 V	3.6 V	100 MHz	DMA I2S LVD POR PWM WDT
NXP USA Inc. PK10X256VLQ100	32 Bit	Single-Core	105 °C	-40 °C	8 bit	64 K	Surface Mount	FLASH	8 bit	256 KB	256 K	37 count	16 bit	12 bit	2 count	Internal	20 mm	144-LQFP	20 mm	ARM® Cortex®-M4	104	CANbus EBI EMI I2C IrDA SD SPI UART USART	144-LQFP	1.71 V	3.6 V	100 MHz	DMA I2S LVD POR PWM WDT	8 bit	4 K

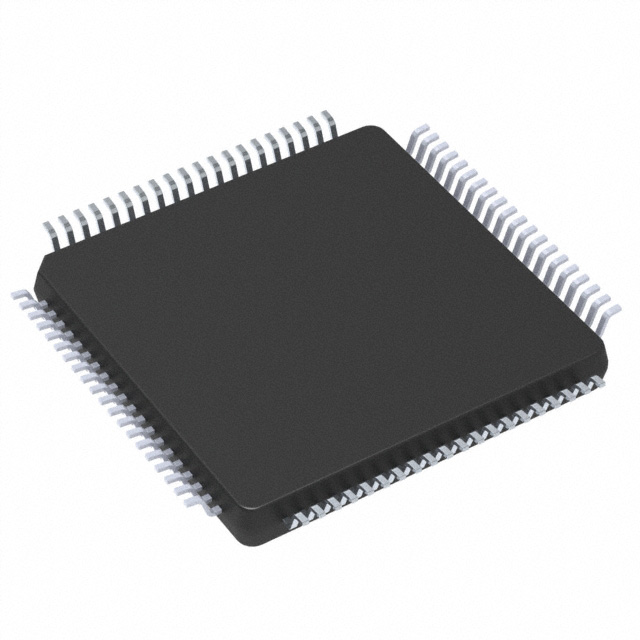

NXP USA Inc. PK10N512VLK100	32 Bit	Single-Core	105 °C	-40 °C	8 bit	128 K	Surface Mount	FLASH	8 bit	512 KB	512 K	27 count	16 bit	12 bit	1 count	Internal	12 mm	80-FQFP	12 mm	ARM® Cortex®-M4	56	CANbus EBI EMI I2C IrDA SD SPI UART USART	80-LQFP	1.71 V	3.6 V	100 MHz	DMA I2S LVD POR PWM WDT
