LDC1612-Q1 Series

2-Ch, 28-bit, high-resolution automotive inductance to digital converter

Catalog

2-Ch, 28-bit, high-resolution automotive inductance to digital converter

Part	Sampling Rate (Per Second)	Data Interface	Package / Case	Supplier Device Package	Voltage Supply Source	Number of Channels [custom]	Type	Mounting Type	Resolution (Bits)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Supply	Voltage - Supply	Supplied Contents	Interface	Utilized IC / Part	Sensor Type	Embedded	Sampling Rate (Per Second)	Grade	Qualification
Texas Instruments LDC1612DNTT	1k	I2C	12-WFDFN Exposed Pad	12-WSON (4x4)	Single Supply	2	Inductance-to-Digital Converter	Surface Mount	28 b	125 °C	-40 °C	2.7 V	3.6 V

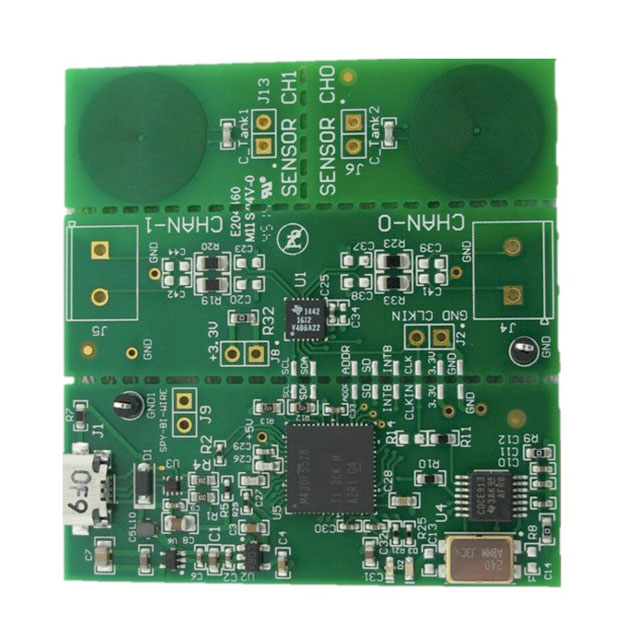

Texas Instruments LDC1612EVM														5 V	USB	Board(s)	USB	LDC1612	Inductive Proximity	16-Bit MCU
Texas Instruments LDC1612DNTR		I2C	12-WFDFN Exposed Pad	12-WSON (4x4)	Single Supply	2	Inductance-to-Digital Converter	Surface Mount	28 b	125 °C	-40 °C	2.7 V	3.6 V								4.08 k	Automotive	AEC-Q100
Texas Instruments LDC1612QDNTRQ1		I2C	12-WFDFN Exposed Pad	12-WSON (4x4)	Single Supply	2	Inductance-to-Digital Converter	Surface Mount	28 b	125 °C	-40 °C	2.7 V	3.6 V								4.08 k	Automotive	AEC-Q100
Texas Instruments LDC1612QDNTTQ1		I2C	12-WFDFN Exposed Pad	12-WSON (4x4)	Single Supply	2	Inductance-to-Digital Converter	Surface Mount	28 b	125 °C	-40 °C	2.7 V	3.6 V								4.08 k	Automotive	AEC-Q100

Catalog

2-Ch, 28-bit, high-resolution automotive inductance to digital converter

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1:–40°C to +125°CAmbient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C5Easy-to-use – Minimal Configuration RequiredMeasure up to 4 Sensors with One ICMultiple Channels Support Environmental andAging CompensationMulti-Channel Remote Sensing Provides LowestSystem CostPin-Compatible Medium and High-resolutionOptionsLDC1312-Q1/LDC1314-Q1: 2/4-ch 12-bit LDCLDC1612-Q1/LDC1614-Q1: 2/4-ch 28-bit LDCSensing range beyond two coil diametersSupports Wide Sensor Frequency Range of 1kHzto 10MHzPower Consumption:35 µA Low Power Sleep Mode200 nA Shutdown Mode3.3V OperationSupport Internal or External Reference ClockImmune to DC Magnetic Fields and MagnetsQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1:–40°C to +125°CAmbient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C5Easy-to-use – Minimal Configuration RequiredMeasure up to 4 Sensors with One ICMultiple Channels Support Environmental andAging CompensationMulti-Channel Remote Sensing Provides LowestSystem CostPin-Compatible Medium and High-resolutionOptionsLDC1312-Q1/LDC1314-Q1: 2/4-ch 12-bit LDCLDC1612-Q1/LDC1614-Q1: 2/4-ch 28-bit LDCSensing range beyond two coil diametersSupports Wide Sensor Frequency Range of 1kHzto 10MHzPower Consumption:35 µA Low Power Sleep Mode200 nA Shutdown Mode3.3V OperationSupport Internal or External Reference ClockImmune to DC Magnetic Fields and Magnets

Description

The LDC1612-Q1 and LDC1614-Q1 are 2- and 4-channel, 28-bit inductance to digital converters (LDCs) for inductive sensing solutions. With multiple channels and support for remote sensing, the LDC1612-Q1 and LDC1614-Q1 enable the performance and reliability benefits of inductive sensing to be realized at minimal cost and power. The products are easy to use, only requiring that the sensor frequency be within 1 kHz and 10 MHz to begin sensing. The wide 1 kHz to 10 MHz sensor frequency range also enables use of very small PCB coils, further reducing sensing solution cost and size. The high resolution channels allow for a much larger sensing range, maintaining good performance beyond two coil diameters. Well-matched channels allow for differential and ratiometric measurements, which enable designers to use one channel to compensate their sensing for environmental and aging conditions such as temperature, humidity, and mechanical drift. Given their ease of use, low power, and low system cost these products enable designers to greatly improve performance, reliability, and flexibility over existing sensing solutions and to introduce brand new sensing capabilities to products in all markets, especially consumer and industrial applications. These devices are easily configured via an I2C interface. The two-channel LDC1612-Q1 is available in a WSON- 12 package and the four-channel LDC1614-Q1 is available in a WQFN-16 package. The LDC1612-Q1 and LDC1614-Q1 are 2- and 4-channel, 28-bit inductance to digital converters (LDCs) for inductive sensing solutions. With multiple channels and support for remote sensing, the LDC1612-Q1 and LDC1614-Q1 enable the performance and reliability benefits of inductive sensing to be realized at minimal cost and power. The products are easy to use, only requiring that the sensor frequency be within 1 kHz and 10 MHz to begin sensing. The wide 1 kHz to 10 MHz sensor frequency range also enables use of very small PCB coils, further reducing sensing solution cost and size. The high resolution channels allow for a much larger sensing range, maintaining good performance beyond two coil diameters. Well-matched channels allow for differential and ratiometric measurements, which enable designers to use one channel to compensate their sensing for environmental and aging conditions such as temperature, humidity, and mechanical drift. Given their ease of use, low power, and low system cost these products enable designers to greatly improve performance, reliability, and flexibility over existing sensing solutions and to introduce brand new sensing capabilities to products in all markets, especially consumer and industrial applications. These devices are easily configured via an I2C interface. The two-channel LDC1612-Q1 is available in a WSON- 12 package and the four-channel LDC1614-Q1 is available in a WQFN-16 package.
