83719 Series
Manufacturer: Belden Inc.
Beta
⌘K

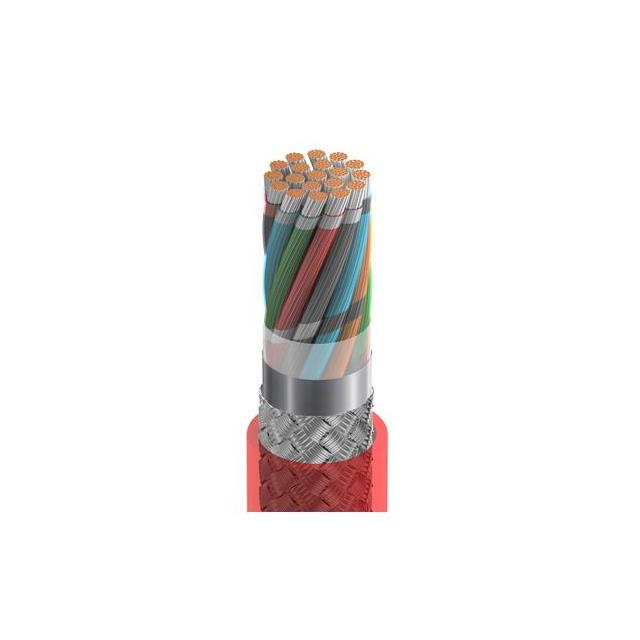

CABLE 19CON 16AWG RED SHLD
| Part | Shield Coverage | Shield Material | Voltage | Number of Conductors | Conductor Insulation | Shield Type | Conductor Material | Length | Length | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Jacket Color | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 300 VDC | 19 | Fluorinated Ethylene-Propylene (FEP) | Braid Foil | Copper Tinned | 304.8 m | 1000 ft | Audio Control Instrumentation | 19 | 29 | 0.403 in | 10.24 mm | Fluorinated Ethylene-Propylene (FEP) Plenum | Red | 16 AWG | 0.014 in | 0.356 mm | Multi-Conductor | -70 °C | 200 °C | ||
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 300 VDC | 19 | Fluorinated Ethylene-Propylene (FEP) | Braid Foil | Copper Tinned | Audio Control Instrumentation | 19 | 29 | 0.403 in | 10.24 mm | Fluorinated Ethylene-Propylene (FEP) Plenum | Red | 16 AWG | 0.014 in | 0.356 mm | Multi-Conductor | -70 °C | 200 °C | 100 ft | 30.5 m | ||
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 300 VDC | 19 | Fluorinated Ethylene-Propylene (FEP) | Braid Foil | Copper Tinned | 152.4 m | 500 ft | Audio Control Instrumentation | 19 | 29 | 0.403 in | 10.24 mm | Fluorinated Ethylene-Propylene (FEP) Plenum | Red | 16 AWG | 0.014 in | 0.356 mm | Multi-Conductor | -70 °C | 200 °C |
