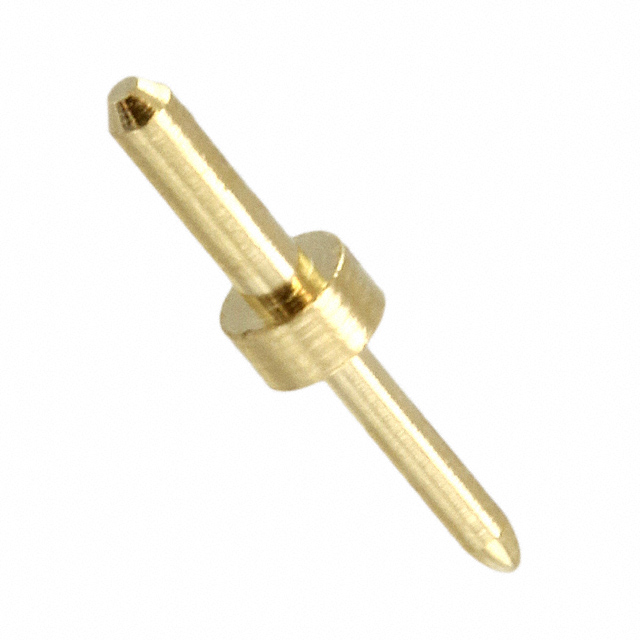

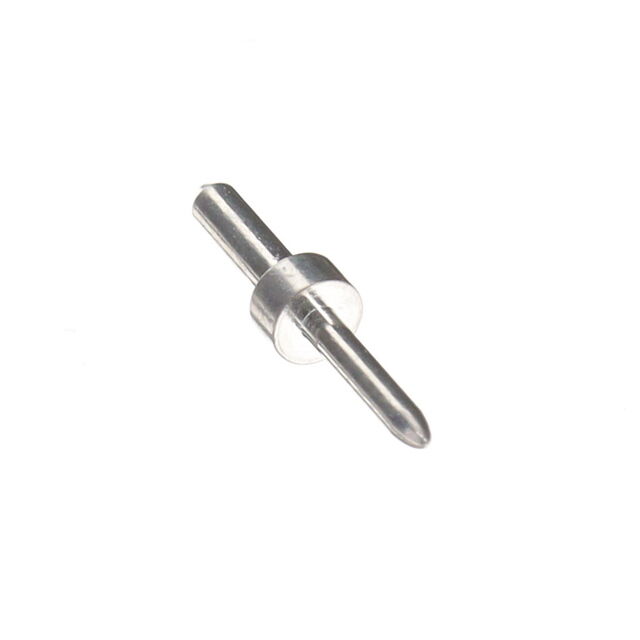

3136-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Termination | Contact Finish | Insulation | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Terminal Style | Board Thickness | Board Thickness | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 5.08 Ám | 200 Áin | Brass Alloy | PC Pin | 0.043 in | 1.09 mm | 0.18 " | 4.57 mm | 0.03 in | 0.76 mm | 0.078 " | 1.98 mm | Through Hole | Solder | Tin | Non-Insulated | 3.68 mm | 0.145 in | 0.04 in | 1.02 mm | Double End | 3.18 mm | 0.125 " | 0.365 in | 9.27 mm |
 Mill-Max Manufacturing Corp. | 5.08 Ám | 200 Áin | Brass Alloy | PC Pin | 0.043 in | 1.09 mm | 0.18 " | 4.57 mm | 0.03 in | 0.76 mm | 0.078 " | 1.98 mm | Through Hole | Solder | Tin-Lead | Non-Insulated | 3.68 mm | 0.145 in | 0.04 in | 1.02 mm | Double End | 3.18 mm | 0.125 " | 0.365 in | 9.27 mm |
 Mill-Max Manufacturing Corp. | 1.27 µm | 50 µin | Brass Alloy | PC Pin | 0.043 in | 1.09 mm | 0.18 " | 4.57 mm | 0.03 in | 0.76 mm | 0.078 " | 1.98 mm | Through Hole | Solder | Gold | Non-Insulated | 3.68 mm | 0.145 in | 0.04 in | 1.02 mm | Double End | 3.18 mm | 0.125 " | 0.365 in | 9.27 mm |
 Mill-Max Manufacturing Corp. | 0.25 Ám | 10 Áin | Brass Alloy | PC Pin | 0.043 in | 1.09 mm | 0.18 " | 4.57 mm | 0.03 in | 0.76 mm | 0.078 " | 1.98 mm | Through Hole | Solder | Gold | Non-Insulated | 3.68 mm | 0.145 in | 0.04 in | 1.02 mm | Double End | 3.18 mm | 0.125 " | 0.365 in | 9.27 mm |
 Mill-Max Manufacturing Corp. | 0.51 µm | 20 µin | Brass Alloy | PC Pin | 0.043 in | 1.09 mm | 0.18 " | 4.57 mm | 0.03 in | 0.76 mm | 0.078 " | 1.98 mm | Through Hole | Solder | Gold | Non-Insulated | 3.68 mm | 0.145 in | 0.04 in | 1.02 mm | Double End | 3.18 mm | 0.125 " | 0.365 in | 9.27 mm |
