BCB Series
Manufacturer: Delta Electronics
Beta
⌘K

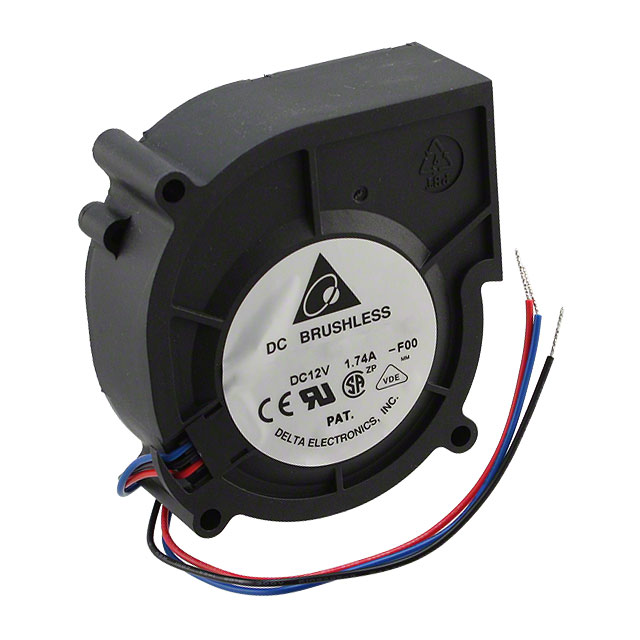

BLOWERS & CENTRIFUGAL FANS DC BLOWER, 80X75X30MM, 12VDC, BALL BEARING, LEAD WIRES, LOCKED ROTOR SENSOR
| Part | Lifetime @ Temp. | Material - Frame | Material - Blade | Current Rating (Amps) | Size / Dimension | Size / Dimension [z] | Size / Dimension [x] | Noise | Weight | Weight | Width [y] | Air Flow | Air Flow | Static Pressure | Static Pressure | Approval Agency | Power (Watts) | Fan Type | RPM | Termination | Bearing Type | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Air Flow | Size / Dimension [y] | Features | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 40 °C 50000 Hrs | Plastic | Plastic | 2.3 A | Rectangular/Rounded | 75 mm | 80 mm | 69.3 dB(A) | 0.309 lb | 140.16 g | 30 mm | 0.846 m³/min | 30.2 CFM | 915.4 Pa | 3.675 in H2O | CE CSA UL VDE | 27.6 W | Blower | 10800 RPM | 2 Wire Leads | Ball | 12 VDC | -10 °C | 60 °C | |||||
 Delta Electronics | Rectangular/Rounded | 97.2 mm | 67.3 dB(A) | 25 mm | 30.6 CFM | 732.6 Pa | 2.941 in H2O | CE CSA UL VDE | 26.4 W | Blower | 8000 RPM | 3 Wire Leads | Ball | 12 VDC | -10 °C | 60 °C | 0.857 m³/min | 94.4 mm | Locked Rotor Protection Speed Sensor (Tach) | 177.35 g | 0.391 lb |
