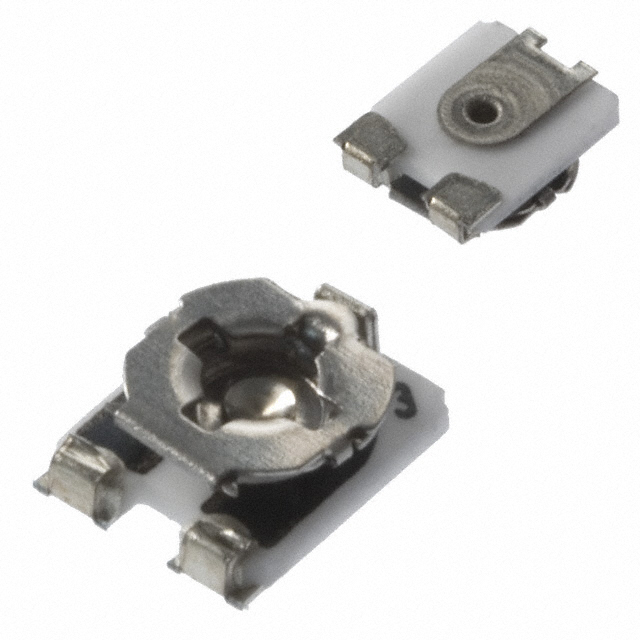

TC33X Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES TRIMMER 100K OHM 25% 0.1W(1/10W) 1(ELEC)/1(MECH)TURNS (3.6 X 3.8MM) FOOTPRINT SMD T/R
| Part | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Number of Turns | Mounting Type | Termination Style | Resistive Material | Power (Watts) | Resistance | Adjustment Type | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 250 ppm/°C | 3.6 mm | 3.8 mm | 0.15 " | 0.142 " | 1 | Surface Mount | J Lead | Cermet | 150 mW | 100 kOhms | Top Adjustment | 25 % |
 Bourns Inc. | 250 ppm/°C | 3.6 mm | 3.8 mm | 0.15 " | 0.142 " | 1 | Surface Mount | J Lead | Cermet | 150 mW | 1 MOhms | Top Adjustment | 25 % |
Bourns Inc. | 250 ppm/°C | 3.6 mm | 3.8 mm | 0.15 " | 0.142 " | 1 | Surface Mount | J Lead | Cermet | 150 mW | 10000 Ohms | Top Adjustment | 25 % |
 Bourns Inc. | 250 ppm/°C | 3.6 mm | 3.8 mm | 0.15 " | 0.142 " | 1 | Surface Mount | J Lead | Cermet | 150 mW | 5 kOhms | Top Adjustment | 25 % |
Bourns Inc. | 250 ppm/°C | 3.6 mm | 3.8 mm | 0.15 " | 0.142 " | 1 | Surface Mount | J Lead | Cermet | 150 mW | 15 kOhms | Top Adjustment | 25 % |
Bourns Inc. | 250 ppm/°C | 3.6 mm | 3.8 mm | 0.15 " | 0.142 " | 1 | Surface Mount | J Lead | Cermet | 150 mW | 33000 Ohms | Top Adjustment | 25 % |
Bourns Inc. | 250 ppm/°C | 3.6 mm | 3.8 mm | 0.15 " | 0.142 " | 1 | Surface Mount | J Lead | Cermet | 150 mW | 150000 Ohms | Top Adjustment | 25 % |
Bourns Inc. | 250 ppm/°C | 3.6 mm | 3.8 mm | 0.15 " | 0.142 " | 1 | Surface Mount | J Lead | Cermet | 150 mW | 3 kOhms | Top Adjustment | 25 % |
Bourns Inc. | 250 ppm/°C | 3.6 mm | 3.8 mm | 0.15 " | 0.142 " | 1 | Surface Mount | J Lead | Cermet | 150 mW | 47000 Ohms | Top Adjustment | 25 % |
Bourns Inc. | 250 ppm/°C | 3.6 mm | 3.8 mm | 0.15 " | 0.142 " | 1 | Surface Mount | J Lead | Cermet | 150 mW | 47000 Ohms | Top Adjustment | 25 % |
