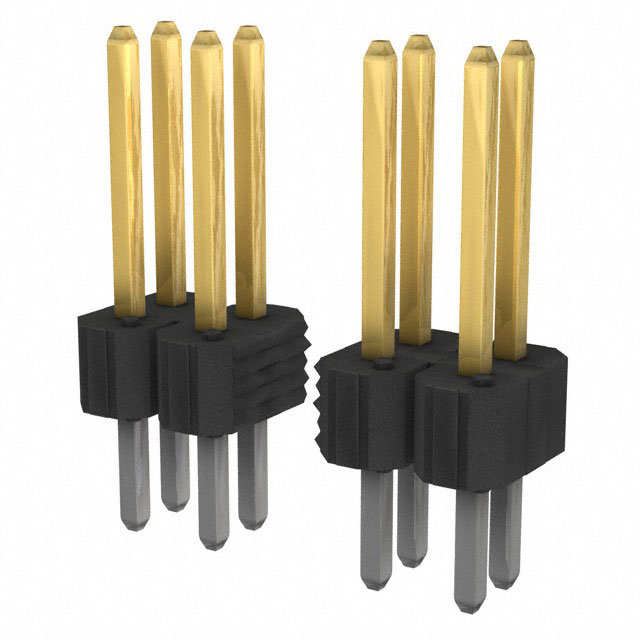

78233 Series

Catalog

BERGSTIK II .100CC DR ST-RAIGHT

Part	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded	Insulation Height	Insulation Height	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Fastening Type	Shrouding	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Material	Contact Type	Contact Finish - Mating	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Finish - Post	Number of Rows
Amphenol ICC (FCI) 78233-130HLF	0.318 "	8.08 mm	All	0.1 in	2.54 mm	Black	2.54 mm	0.1 in	Square	Through Hole	-65 ░C	130 °C	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	Unshrouded	0.1 in	2.54 mm	Header	30	14.43 mm	0.568 in	Phosphor Bronze	Male Pin	Gold or Gold GXT™	3 A	0.15 in	3.81 mm	Solder
Amphenol ICC (FCI) 78233-438HLF	0.318 "	8.08 mm	All	0.1 in	2.54 mm	Black	2.54 mm	0.1 in	Square	Through Hole	-65 ░C	130 °C	100 çin	2.54 çm	UL94 V-0	Push-Pull	Unshrouded	0.1 in	2.54 mm	Header	38	14.43 mm	0.568 in	Phosphor Bronze	Male Pin		3 A	0.15 in	3.81 mm	Solder	Tin
Amphenol ICC (FCI) 78233-154HLF	0.318 "	8.08 mm	All	0.1 in	2.54 mm	Black	2.54 mm	0.1 in	Square	Through Hole	-65 ░C	130 °C	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	Unshrouded	0.1 in	2.54 mm	Header	54	14.43 mm	0.568 in	Phosphor Bronze	Male Pin	Gold or Gold GXT™	3 A	0.15 in	3.81 mm	Solder
Amphenol ICC (FCI) 78233-272	0.318 "	8.08 mm	All	0.1 in	2.54 mm	Black	2.54 mm	0.1 in	Square	Through Hole			15 µin	0.38 µm	UL94 V-0	Push-Pull	Unshrouded	0.1 in	2.54 mm	Header	72	14.43 mm	0.568 in	Phosphor Bronze	Male Pin	Gold or Gold GXT™		0.15 in	3.81 mm	Solder		2
Amphenol ICC (FCI) 78233-124HLF	0.318 "	8.08 mm	All	0.1 in	2.54 mm	Black	2.54 mm	0.1 in	Square	Through Hole	-65 ░C	130 °C	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	Unshrouded	0.1 in	2.54 mm	Header	24	14.43 mm	0.568 in	Phosphor Bronze	Male Pin	Gold or Gold GXT™	3 A	0.15 in	3.81 mm	Solder		2
Amphenol ICC (FCI) 78233-170HLF	0.318 "	8.08 mm	All	0.1 in	2.54 mm	Black	2.54 mm	0.1 in	Square	Through Hole	-65 ░C	130 °C	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	Unshrouded	0.1 in	2.54 mm	Header	70	14.43 mm	0.568 in	Phosphor Bronze	Male Pin	Gold or Gold GXT™	3 A	0.15 in	3.81 mm	Solder
Amphenol ICC (FCI) 78233-412HLF	0.318 "	8.08 mm	All	0.1 in	2.54 mm	Black	2.54 mm	0.1 in	Square	Through Hole	-65 ░C	130 °C	100 çin	2.54 çm	UL94 V-0	Push-Pull	Unshrouded	0.1 in	2.54 mm	Header	12	14.43 mm	0.568 in	Phosphor Bronze	Male Pin		3 A	0.15 in	3.81 mm	Solder	Tin
Amphenol ICC (FCI) 78233-140HLF	0.318 "	8.08 mm	All	0.1 in	2.54 mm	Black	2.54 mm	0.1 in	Square	Through Hole	-65 ░C	130 °C	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	Unshrouded	0.1 in	2.54 mm	Header	40	14.43 mm	0.568 in	Phosphor Bronze	Male Pin	Gold or Gold GXT™	3 A	0.15 in	3.81 mm	Solder		2
Amphenol ICC (FCI) 78233-466HLF	0.318 "	8.08 mm	All	0.1 in	2.54 mm	Black	2.54 mm	0.1 in	Square	Through Hole	-65 ░C	130 °C	100 çin	2.54 çm	UL94 V-0	Push-Pull	Unshrouded	0.1 in	2.54 mm	Header	66	14.43 mm	0.568 in	Phosphor Bronze	Male Pin		3 A	0.15 in	3.81 mm	Solder	Tin
Amphenol ICC (FCI) 78233-162HLF	0.318 "	8.08 mm	All	0.1 in	2.54 mm	Black	2.54 mm	0.1 in	Square	Through Hole	-65 ░C	130 °C	30 Áin	0.76 Ám	UL94 V-0	Push-Pull	Unshrouded	0.1 in	2.54 mm	Header	62	14.43 mm	0.568 in	Phosphor Bronze	Male Pin	Gold or Gold GXT™	3 A	0.15 in	3.81 mm	Solder
