857-033 Series
Manufacturer: EDAC Inc.
Beta
⌘K

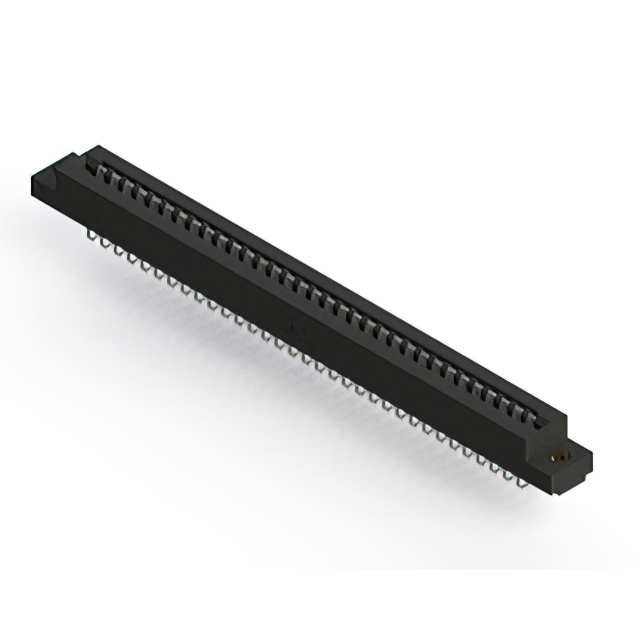

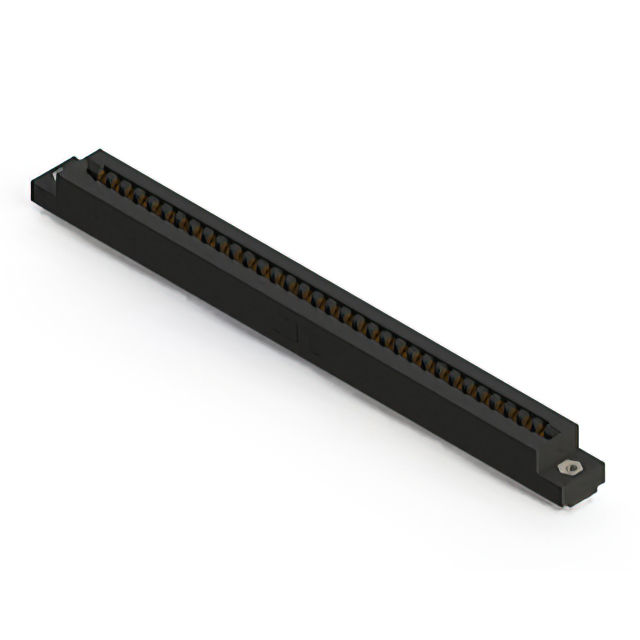

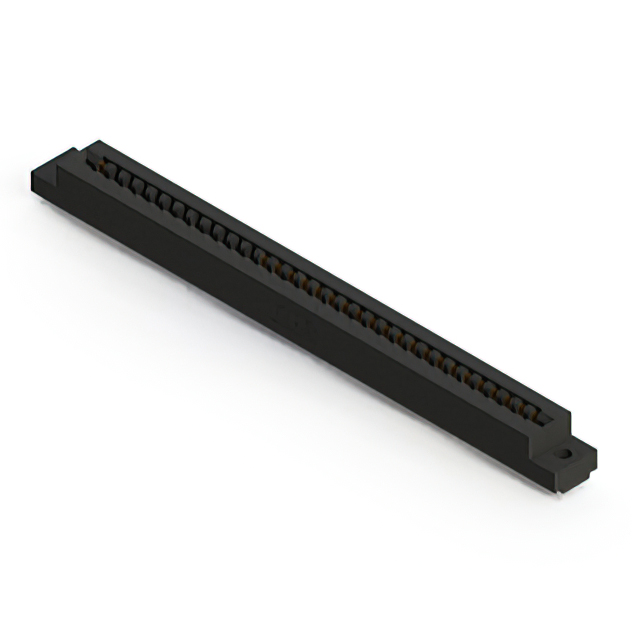

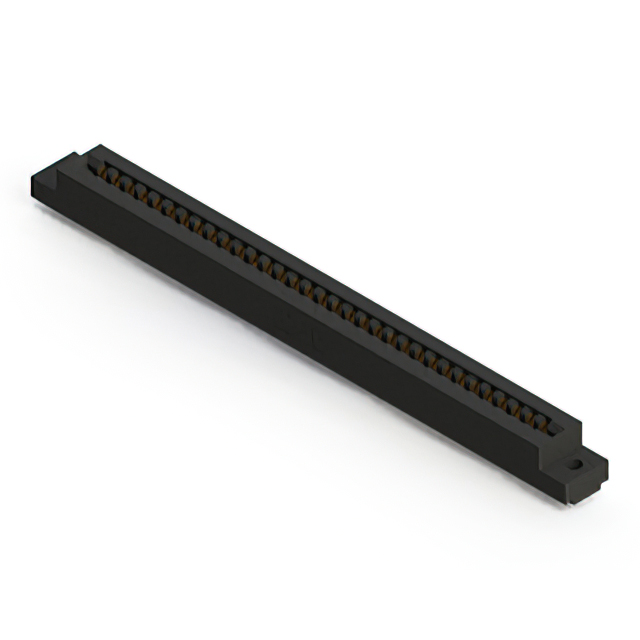

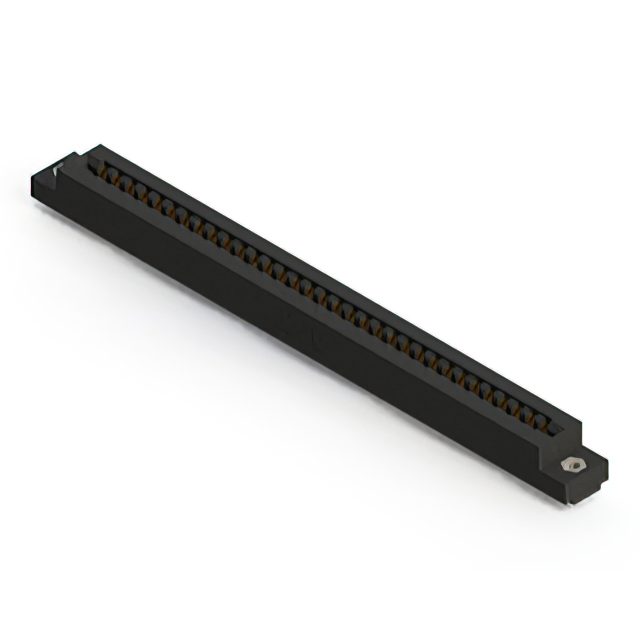

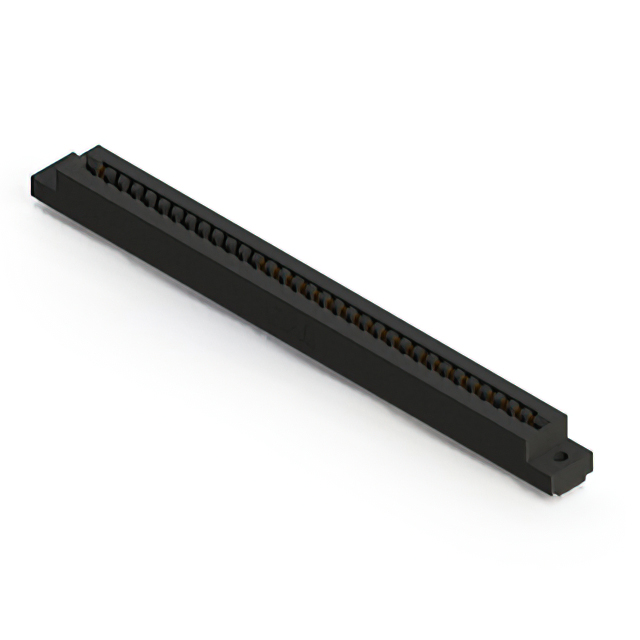

CONN EDGE SGL FMALE 33POS 0.156
| Part | Material - Insulation | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Color | Mounting Type | Contact Material | Number of Positions/Bay/Row | Termination | Contact Finish | Number of Positions [custom] | Gender | Card Type | Card Thickness [Max] | Card Thickness [Min] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Pitch | Pitch | Number of Rows | Number of Positions | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Single | 125 °C | -40 C | Semi Bellows | Black | Right Angle Through Hole | Copper Alloy | 33 | Solder | Gold | 33 | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 3.96 mm | 0.156 in | 1 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Dual | 125 °C | -40 C | Semi Bellows | Black | Through Hole | Copper Alloy | 33 | Wire Wrap | Gold | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount M3 Threaded Insert Top Opening | 3.96 mm | 0.156 in | 66 | 2 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Single | 125 °C | -40 C | Semi Bellows | Black | Right Angle Through Hole | Copper Alloy | 33 | Solder | Gold | 33 | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 3.96 mm | 0.156 in | 1 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Dual | 125 °C | -40 C | Semi Bellows | Black | Through Hole | Copper Alloy | 33 | Solder Eyelet(s) | Gold | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 3.96 mm | 0.156 in | 66 | 2 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Dual | 125 °C | -40 C | Semi Bellows | Black | Through Hole | Copper Alloy | 33 | Wire Wrap | Gold | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 66 | 2 | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Single | 125 °C | -40 C | Semi Bellows | Black | Through Hole | Copper Alloy | 33 | Solder | Gold | 33 | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 3.96 mm | 0.156 in | 1 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Dual | 125 °C | -40 C | Semi Bellows | Black | Right Angle Through Hole | Copper Alloy | 33 | Solder | Gold | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount M3 Threaded Insert Top Opening | 3.96 mm | 0.156 in | 66 | 2 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Dual | 125 °C | -40 C | Semi Bellows | Black | Right Angle Through Hole | Copper Alloy | 33 | Solder | Gold | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 66 | 2 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Single | 125 °C | -40 C | Semi Bellows | Black | Through Hole | Copper Alloy | 33 | Solder | Gold | 33 | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | 3.96 mm | 0.156 in | 1 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Single | 125 °C | -40 C | Semi Bellows | Black | Right Angle Through Hole | Copper Alloy | 33 | Solder | Tin | 33 | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | 3.96 mm | 0.156 in | 1 |
